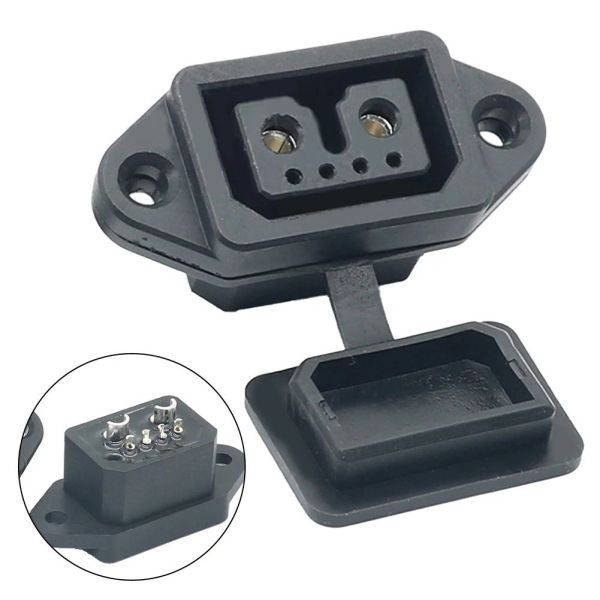

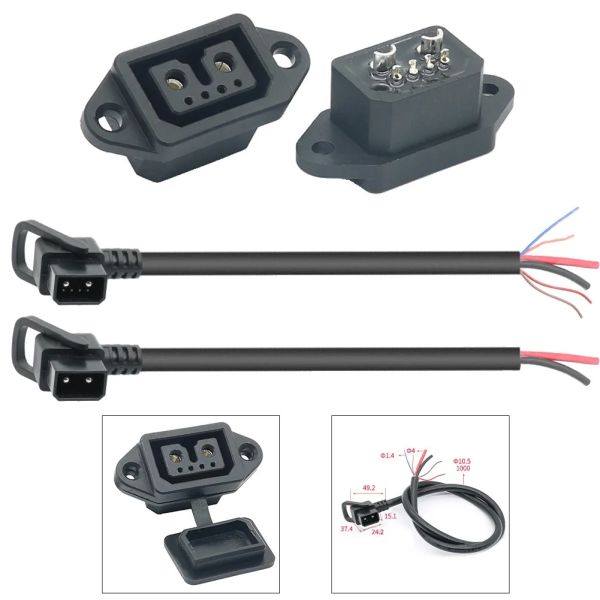

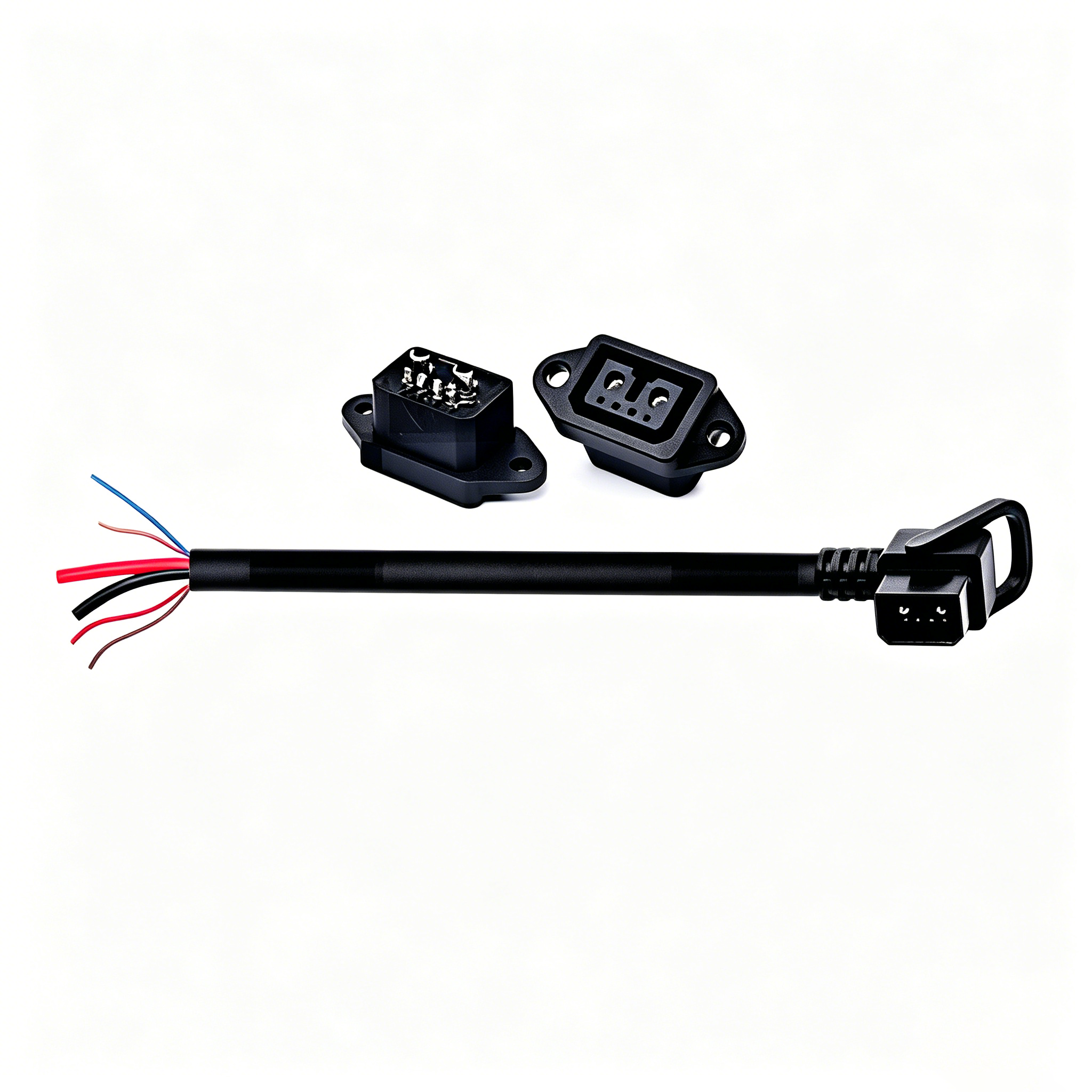

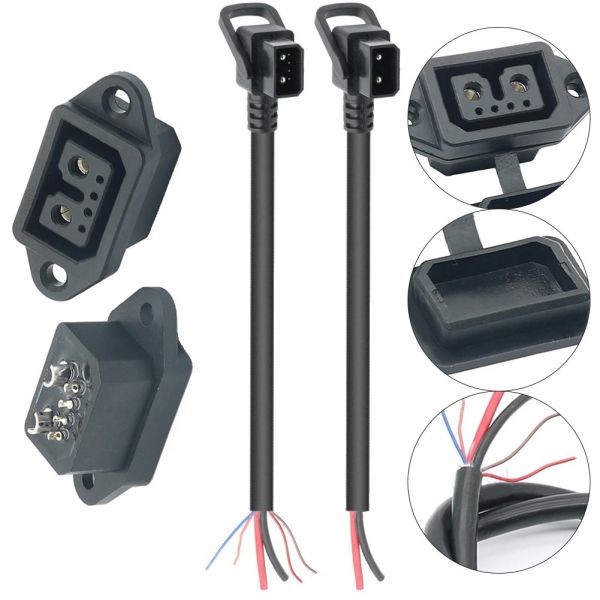

PINZi 2+4 Series LEVs Charging Connector (Male & Female Socket) - 40A 500V

Product Definition

The PINZi 2+4 Series LEVs Charging Connector is a compact, high-reliability quick-connect charging solution designed for electric vehicles. It features 2 power pins (for high current) and 4 signal/communication pins, enabling both power delivery and basic communication or safety interlocking. Built for durability and safety in daily charging environments.

Key Features

1. High Safety & Performance: 40A rated current (50A peak) with DC500V rating and low 5mΩ contact resistance.
2. Long Service Life: Rated for 5,000 mating cycles.
3. Excellent Electrical Properties: High insulation resistance and stable contact performance.
4. Compact & Robust Design: Space-saving structure with reliable locking mechanism.
5. Wide Temperature Range: Operates reliably from -20°C to +65°C.

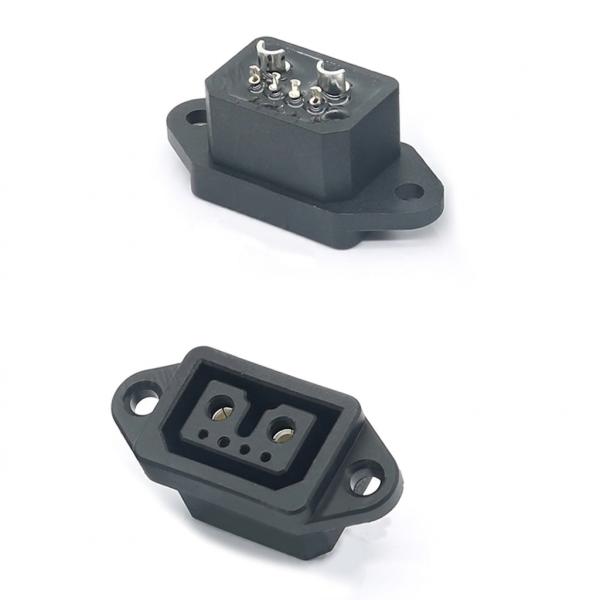

6. Complete Set: Includes male and female sockets for easy vehicle and charger integration.

Technical Specifications

Practical Use Cases

• Electric motorcycles and e-scooters
• Electric tricycles and cargo e-bikes
• Light electric vehicles (LEV)
• Golf carts and utility vehicles
• Portable EV charging stations
• Two-wheeler and three-wheeler charging systems

Connector & Cable Assembly FAQ

Q1: What is the difference between the 2 power pins and 4 signal pins?

A: The 2 large pins handle the main charging current (up to 50A peak), while the 4 smaller pins are used for communication, temperature sensing, or safety interlock signals between the vehicle and charger.

Q2: Is this connector suitable for fast charging?

A: It supports standard to moderate fast charging with 40A rated / 50A peak current. It is ideal for most electric motorcycles and light EVs, but not for high-power electric cars.

Q3: How do I ensure a safe and reliable connection?

A: Always match the male and female parts correctly and ensure the locking mechanism is fully engaged. Proper cable sizing and professional installation are recommended to prevent overheating.
