GRANNING 6252 Natural Rubber Air Bag Suspension Spring/ 1R10-036 Air Ride Suspension System Spare Parts W01-358-9049
GRANNING 6252 Natural Rubber Air Bag Suspension Spring/ 1R10-036 Air Ride Suspension System Spare Parts W01-358-9049
Specifications
Place of Origin :
Guangdong, China
Brand Name :
VKNTECH
Certification :
IATF16949/ISO9000
Packaging Details :
CARTON/PALLET
Supply Ability :
2000000pcs/Year
MOQ :
20 Pieces
Price :
$1.00 - $50.00/Pieces
Model Number :
1K9049
OE NO. :
W01-358-9049
Car Model :
For bus/truck&trailer
Package :
Standard packing or customized
Suspension system :
Air Spring Suspension
Warranty :
12 Months
Type :
by sea / by air / by truck
Price condition :
FOB China
Sample :
Available
Brand :
VKNTECH or customized
Material :
Imported Natrul Rubber
Operation :
Gas-filled
Service offered :
OEM
Type of Goods :
Air Spring/Air bags/Air Ballons
Payment term :
T/T&L/C
Port :
Guangzhou
Description
AIRSTROKE ACTUATOR
Maximum Diameter @ 100 PSIG (inches) 11.1
Maximum Height (inches) 16
Maximum Stroke (inches) 10
Minimum Usable Height (inches) 6
Force @ 80PSI at Stroke of 1 Inch (pounds) 5070
Force @ 80PSI at Stroke of 3 Inch (pounds) 4420
Force @ 80PSI at Stroke of Maximum Stroke (pounds) 2830
Material 2-Ply Standard Cord
　 　
END CLOSURE DETAILS
Bead plate Type 3
Blind Nut Centers (inches) 6.2
Port Offset from Blind Nut Centerline (inches) 2.88
　 　
AIRMOUNT ISOLATOR
Design Height 12
Load (at Design Height) at: 40 psig (pounds) 2040
Load (at Design Height) at: 60 psig (pounds) 3140
Load (at Design Height) at: 80 psig (pounds) 4220
Natural Frequency (@80 psig) (cpm) 74
% of Isolation at Forced Frequency 400 CPM 96.5
% of Isolation at Forced Frequency 800 CPM 99.1
% of Isolation at Forced Frequency 1500 CPM 99.8

GRANNING 6252 Natural Rubber Air Bag Suspension Spring/ 1R10-036 Air Ride Suspension System Spare Parts W01-358-9049

OEM Numbers

Firestone W01-358-9049
1T15AA-3
1T15S-6		 GRANNING 6252
Goodyear 1R10-036 　 　

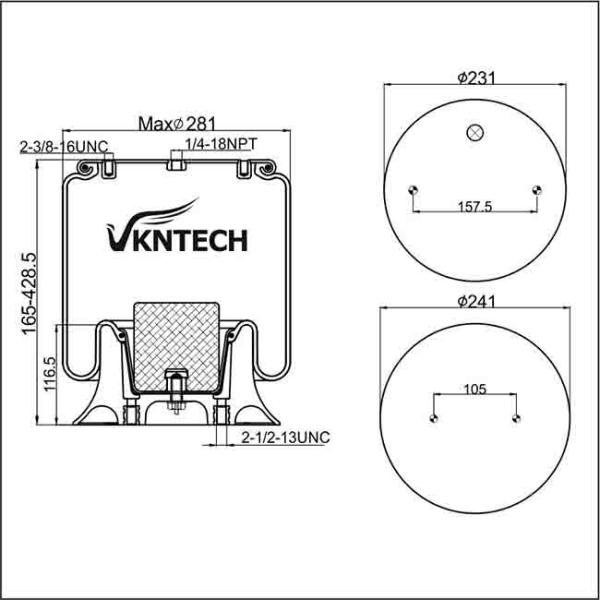

Prodcut Drawing

GRANNING 6252 Natural Rubber Air Bag Suspension Spring/ 1R10-036 Air Ride Suspension System Spare Parts W01-358-9049

Technical data

AIRSTROKE ACTUATOR
Maximum Diameter @ 100 PSIG (inches) 11.1
Maximum Height (inches) 16
Maximum Stroke (inches) 10
Minimum Usable Height (inches) 6
Force @ 80PSI at Stroke of 1 Inch (pounds) 5070
Force @ 80PSI at Stroke of 3 Inch (pounds) 4420
Force @ 80PSI at Stroke of Maximum Stroke (pounds) 2830
Material 2-Ply Standard Cord
　 　
END CLOSURE DETAILS
Bead plate Type 3
Blind Nut Centers (inches) 6.2
Port Offset from Blind Nut Centerline (inches) 2.88
　 　
AIRMOUNT ISOLATOR
Design Height 12
Load (at Design Height) at: 40 psig (pounds) 2040
Load (at Design Height) at: 60 psig (pounds) 3140
Load (at Design Height) at: 80 psig (pounds) 4220
Natural Frequency (@80 psig) (cpm) 74
% of Isolation at Forced Frequency 400 CPM 96.5
% of Isolation at Forced Frequency 800 CPM 99.1
% of Isolation at Forced Frequency 1500 CPM 99.8
