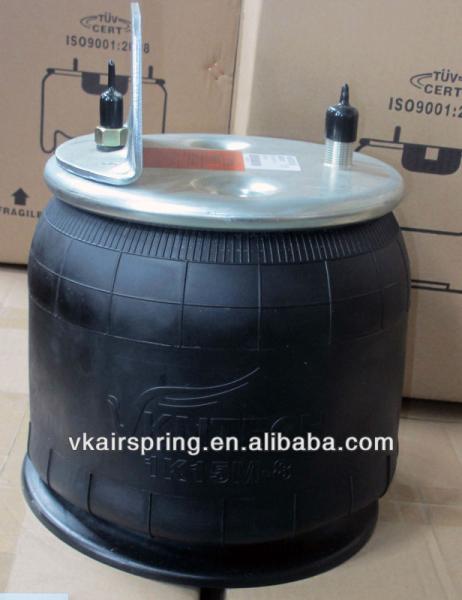

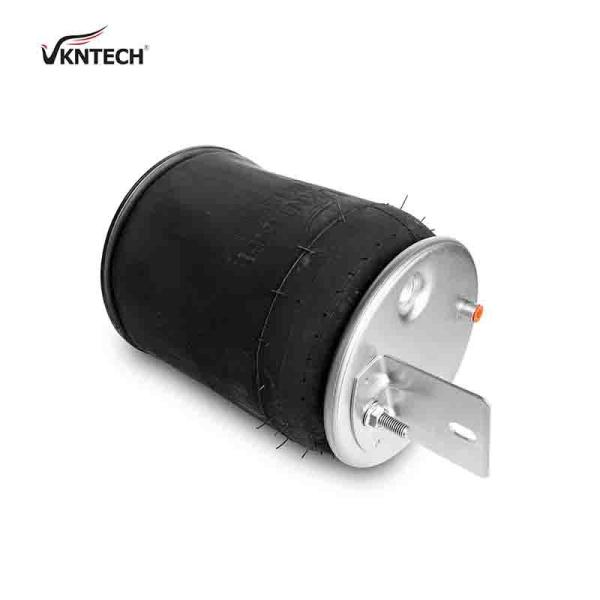

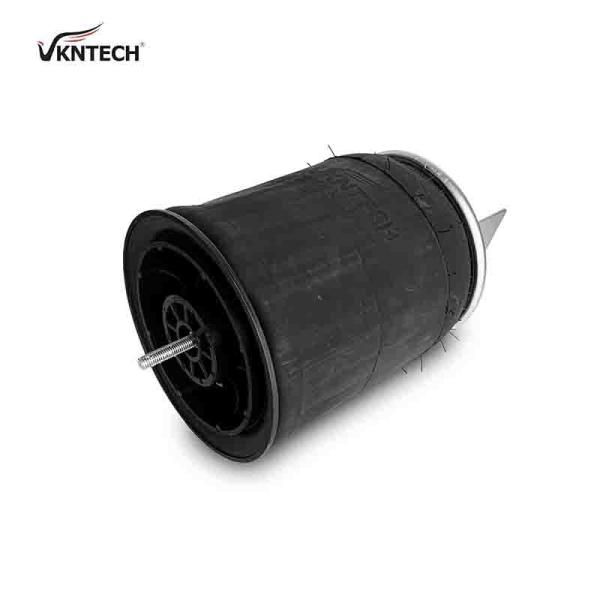

W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401
W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401
W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401
W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401
W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401
W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401
Specifications
Place of Origin :
Guangdong, China
Brand Name :
VKNTECH
Certification :
IATF16949/ISO9000
Packaging Details :
CARTON/PALLET
Supply Ability :
2000000pcs/Year
MOQ :
20 Pieces
Price :
$1.00 - $50.00/Pieces
Model Number :
1K9371
OE NO. :
W01-358-9371
Warranty :
12 Months
Type :
by sea / by air / by truck
Car Model :
For bus/truck&trailer
Price condition :
FOB China
Sample :
Available
Material :
Imported Natrul Rubber
Operation :
Gas-filled
Brand :
VKNTECH or customized
Service offered :
OEM
Suspension system :
Air Spring Suspension
Type of Goods :
Air Spring/Air bags/Air Ballons
Package :
Standard packing or customized
Payment term :
T/T&L/C
Port :
Guangzhou
Description

W01-3598-9371 Gas-Filled Air Bellow 1R12-401 Rubber Air Suspension System/ Truck Spare Parts Steel Piston 910-18.5P521


OEM

CONTITECH 9 10-17.5 P 521 DAYTON 352-9371
FIRESTONE 1T15MT-8 NAVISTAR 2027911C-1
FIRESTONE 2 W01 358 9371 　 1686386C-1
GOODYEAR 1R12-401 　 1670073C-1
　 1R12-244 TRIANGLE 8521

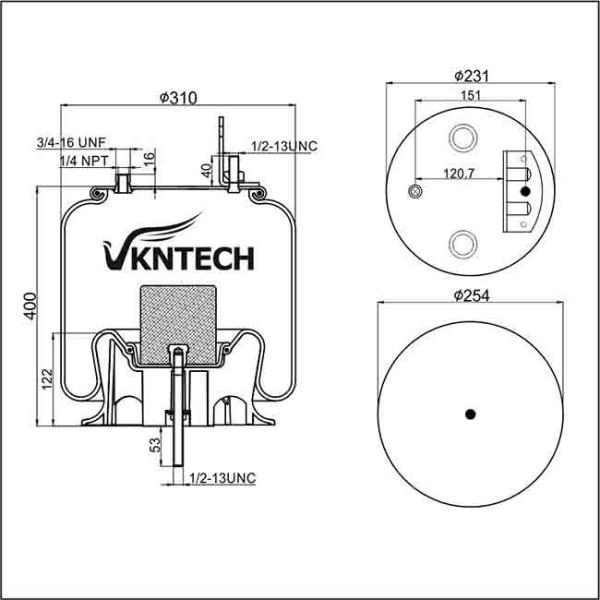

Drawings

W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401

Specifications

Air Spring Air Fitting Size Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
Air Spring Compressed Height 6 in.
Air Spring # of Lobes 1 Solid Sleeve
Air Spring Type 1T - Reversible Sleeve
Bead Plate (Top) & Deflated Bellows O.D. 9 and 10.12 in.
Bead Plate (Top) Mounting Bolts Dimension Center to Center 5.75 in.
Diameter 10.12 in.
Extended Height Deflated 22 in.
Finished Weight 18 lbs
Piston (Bottom) Mounting Bolt Dimensions Center to Center 4.12 in.
Piston Height 4.88 in.
Bead Plate Top Diameter 9 in.
Bead Plate Bottom Diameter 10 in.
Application Navistar 1670073C-1, Navistar 1686386C-1
Assembled Product Weight (lb) 18
Bellows 1T15M-8
Bottom Bead Plate Hardware Key 2 x Bold or Stud 1/2-13
Design Height (in.) 12.5-13.5
Loading Capacity at 20 psig 1,510 lbsf
Loading Capacity at 60 psig 4,530 lbsf
Loading Capacity at 90 psig 6,795 lbsf
Maximum Diameter 12.7
Maximum Rebound Height (in.) 21.53
Minimum Jounce Height (in.) 5.9
Natural Frequency Hz
Operating Temperature (Deg C) 57 to -54
Top Bead Plate Hardware Key Bold or Stud 1/2-13


Product Description

Manufacturer: Spring Pro

Spring Pro Bellows Number: 889371

Goodyear Bellows Number: 566-24-3-038

Goodyear Part Number: 1R12-401

Firestone Bellows Number: 1T15MT-8

Firestone Part Number: W01-358-9371

Replaces: Navistar 1670073C-1, Navistar 1686386C-1 and Navistar 2027911C-1

Cross References: 1R12401, 1S12244, 8521, 1R12-401, 1670043C1, 1686386C1, 1S12-244, 64290, 9 10-17.5 P 521, 910-17.5P521, 91017.5P521, W01-358-9371
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
