288kW Custom Swimming Pool Heat Pump with Titanium Heat Exchanger for Constant Temperature
288kW Custom Swimming Pool Heat Pump with Titanium Heat Exchanger for Constant Temperature
Specifications
Brand Name :
Meidibao
Model Number :
M-D188WD
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
negotiate a price
Payment Terms :
T/T
Supply Ability :
5 SET one day
Delivery Time :
Specific to the order based on regular products 5 to 7 days. Custom made for 30 days
Packaging Details :
wooden frame or plywood box
Use :
Constant temperature
Waterproof Level :
IP×4
COP :
3.6~4.0
Working ambient temperature :
0~43C
Power Supply :
380V/3Ph/50Hz or 60Hz
heat exchanger :
PPR shell titanium tube
Name :
Custom Heat Pump
Description
288kW Custom Swimming Pool Heat Pump with Titanium Heat Exchanger
Product Overview

Meidibao air source heat pump system is powered by ambient air and operates around the clock, providing continuous hot water throughout the year regardless of weather conditions. The operating cost is 67% less than gas water heaters, 75% less than electric water heaters, and 60% less than boilers. Intelligent microcomputer control automatically operates according to water temperature and usage patterns, eliminating the need for special duty personnel.

Key Features
  • OEM/ODM customization available with extensive experience
  • PPR shell with titanium construction
  • Air-side heat exchanger features integral hydrophilic finned inner threaded tube design with large windward area, high heat transfer efficiency, and resistance to oxidation and corrosion
  • Hydrophilic fins minimize condensation and frosting, ensuring sufficient heating capacity in cold winter conditions
  • Maintains constant temperature across all seasons, unaffected by weather changes
  • External sheet metal made of galvanized steel with rust removal, cleaning, drying, and electrostatic spraying for durable, attractive appearance
Technical Specifications
Product Swimming Pool Heat Pump
Model M-D288WD
Climatic Type Normal
Power Supply 380V～/50Hz
Rated Heating Capacity 288.5kW
Rated Power Input 78kW
Max Rated Current 202.8A
Refrigerant / Charge R410/7000g×6
Rated Water Temperature 28℃
Max Hot Water Temperature 50℃
Working Temperature 0-43℃
Water Pipe Size 4"
Noise ≤78dB(A)
Product Dimension 3300×2000×2100mm
Net Weight 2000kg
System Advantages
  • Heat pump form heating eliminates need for boiler rooms, directly absorbs heat from air, reducing costs while ensuring clean, safe operation and avoiding environmental pollution
  • Optional auxiliary electric heating available for locations with winter heat shortages
  • High efficiency and energy savings with reliable performance using world-famous brand rotary or fully enclosed vortex compressors and high-quality refrigeration components
  • Multi-system unit features two-stage energy regulation system, ideal for partial load conditions, providing additional energy savings and protecting against frequent system starts

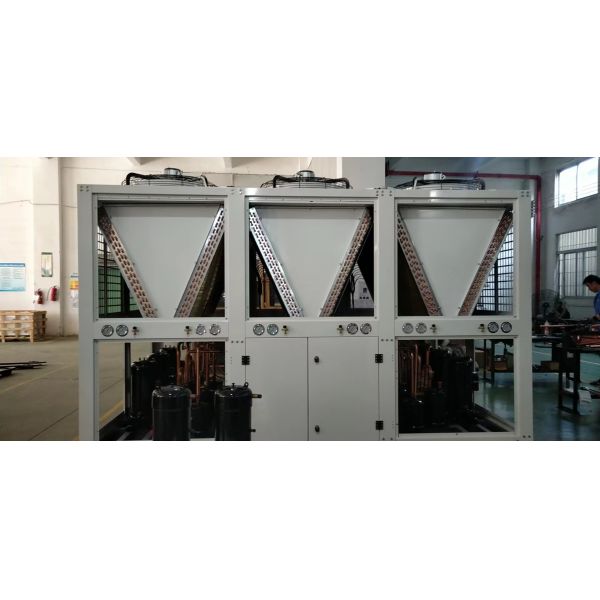

Product Images
288kW Custom Swimming Pool Heat Pump with Titanium Heat Exchanger for Constant Temperature 288kW Custom Swimming Pool Heat Pump with Titanium Heat Exchanger for Constant Temperature 288kW Custom Swimming Pool Heat Pump with Titanium Heat Exchanger for Constant Temperature 288kW Custom Swimming Pool Heat Pump with Titanium Heat Exchanger for Constant Temperature
