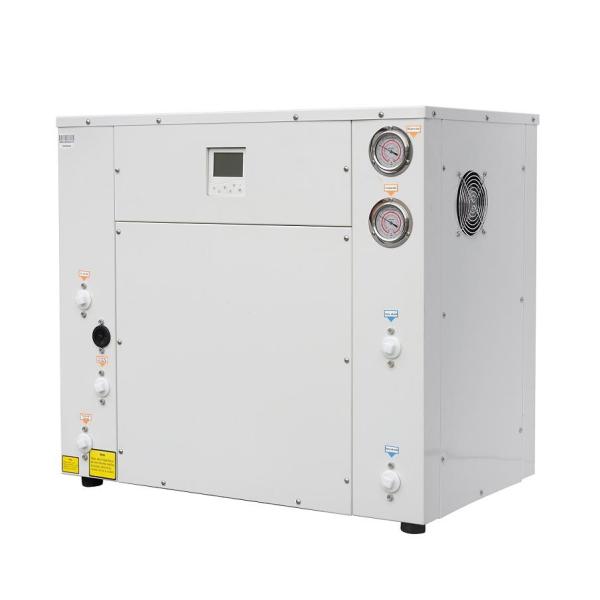

12KW Heating Capacity R410A Refrigerant Water to Water Ground Source Heat Pump with LCD Touch Panel Control
12KW Heating Capacity R410A Refrigerant Water to Water Ground Source Heat Pump with LCD Touch Panel Control
Specifications
Brand Name :
meidibao
Model Number :
M-D12WDH
Certification :
CE
Place of Origin :
China
MOQ :
10 units
Price :
negotiate a price
Payment Terms :
T/T
Supply Ability :
5 units one day
Delivery Time :
25-30 days
Packaging Details :
Factory standard packing
heat exchanger :
plate heat exchanger
Refrigerant :
R410A
Power Supply :
230V/1P/50HZ
Type :
water to water
Throttle Device :
EEV
Control :
LCD touch panel standard/internet ,APP control alternative
Name :
Custom Heat Pump
Description
12KW Heat Pump Water To Water Ground Source Heat Pump
Product Overview

12KW Custom Heat Pump inverter Ground Source Heat Pump with integrated hot water, room heating/cooling, and solar control functionality.

Product Description

The water-to-water heat pump may be applied in a boiler/cooling tower setting, in a geothermal closed or open loop application, or in a hybrid application. All units accommodate service access to the controls and other major components to contribute to greater serviceability and maintainability.

Water-to-water heat pumps transfer underground heat energy from hot water or steam to indoor hot water or steam. This hot water or steam is then distributed within homes and businesses through radiators, hot water baseboard heaters, or radiant floor heating. As renewable and efficient systems, heat pumps utilize natural heat transfer principles.

Key Features
  • High COP: 5.10/5.25/5.20 (Rated working condition: heating: source side inlet/outlet water temp: 10℃/7℃, use side inlet/outlet water temp: 30℃/35℃)
  • Hot Water Temperature: 20℃ to 65℃
  • Power Supply: 380V/50Hz/3P, 220V/50Hz/1P
  • Source Side Temperature: -3℃ to 30℃
  • Heating Capacity: 5KW/12KW/18KW/24KW
Technical Specifications
Model M-D12WDH
Performance at W10/7℃, W30/35℃
Rated Heating Capacity kW 12.5
Heating Capacity Range kW 4.1-13.5
COP / 5.2
Rated Input Power kW 2.4
Performance at W0/-3℃, W30/35℃
Rated Heating Capacity kW 11
Heating Capacity Range kW 3.3-12.1
COP / 4.47
Rated Input Power kW 2.46
Functions / Hot water + Room heating/cooling + Solar control (Change over automatically)
Control / LCD touch panel standard / Internet, APP control alternative
Delivery Water ℃ 20-65℃
Power Supply / 230V/1P/50Hz
Noise dB(A) 40
Color / Optional / default white
Technology Advantages

Meidibao DC inverter water source heat pumps utilize DC inverter technology and REPM compressors with adjustable running speeds that follow ambient or water temperature variations. This regulates output capacity to heat storage tanks or rooms much quicker than normal on/off heat pumps while maintaining precise temperature balance.

The inverter system provides very high COP by eliminating energy waste. Through frequency-changeable inverter technology, the heat pump can increase compressor speeds to over 5000rpm at very low ambient temperatures of -25℃, increasing refrigerant mass flow rate to offset source energy loss in cold climates while maintaining acceptable performance.
