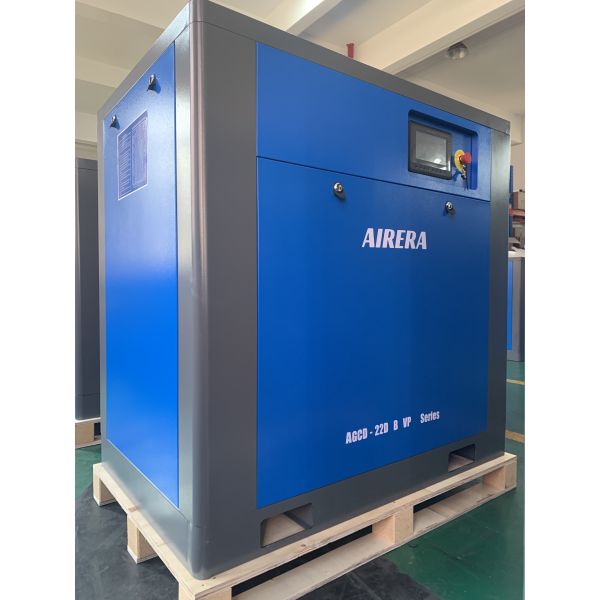

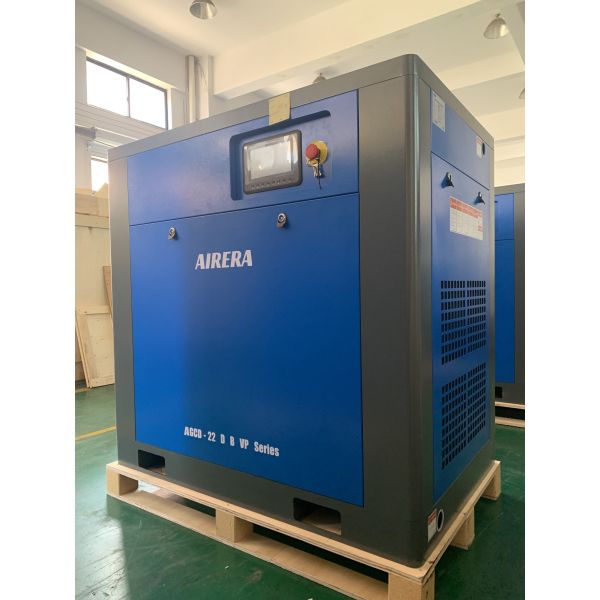

22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-22D B VP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-30,000 USD
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Delivery Time :
3-30 days
Packaging Details :
According to international standards
Condition :
New Screw Air Compressor
Noise :
78dB
Cooling :
Air or Water Cooled
Power Supply :
220/380/415//440V 50/60Hz 3Ph
Size :
1540*920*1240mm
Cooling Method :
Air or Water Cooled
Colour :
Blue
Transmission Mode :
direct driven
Cooling Model :
Air cooling
Power Rating :
7.5 KW To 400 KW
Advanced Design :
Design in Germany
Start :
Delta Start
Driving System :
protection system
Inlet Pressure :
Atmospheric Pressure
Description
AIRERA AGCD-22D B VP 22kW Energy Efficient Variable Speed Screw Air Compressor
Product Overview
The AIRERA AGCD-22D B VP is a 22kW variable speed screw air compressor engineered for energy-saving industrial performance. Designed with advanced inverter technology, it automatically adjusts motor speed according to real-time air demand. This reduces electricity consumption, lowers operating costs, and ensures stable pressure output. Its compact footprint and intelligent control system make it ideal for small to medium-sized production facilities.
Key Features
  • 22kW / 30HP Industrial Power: Provides reliable airflow for workshops and production lines.
  • Variable Speed Drive (VSD): Matches air supply to demand and significantly reduces energy waste.
  • Precision Pressure Stability: Maintains stable pressure within a narrow fluctuation range.
  • Compact Integrated Design: Space-saving layout suitable for limited installation areas.
  • Intelligent Digital Controller: Real-time system monitoring with automatic alarm and protection functions.
  • Efficient Cooling System: Optimized airflow ensures stable operation even during long running hours.
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
Technical Specifications
Item Unit AGCD-22D B VP
Rated Power kW 22
Horsepower HP 30
Working Pressure bar 7 / 8 / 10 / 13
Air Flow Capacity m³/min 3.2 – 4.0
Control Mode — Variable Speed (Inverter)
Drive Type — Direct Drive
Cooling Method — Air Cooling
Starting Method — Soft Start
Voltage V/Ph/Hz 380V / 3Ph / 50Hz
Outlet Connection — G1-1/2"
Noise Level dB(A) ≤66
Dimensions mm 1350 * 900 * 1250
Net Weight kg 600
Ideal Applications
  • CNC machining workshops
  • Furniture manufacturing
  • Food processing plants
  • Textile production
  • General industrial assembly lines
Especially recommended for facilities with fluctuating air consumption.
Why Choose 22kW Variable Speed?
For factories where air demand changes throughout the day, a fixed-speed compressor may waste energy during idle periods. The AGCD-22D B VP automatically adjusts motor speed to maintain stable pressure while lowering electricity consumption, making it a cost-effective long-term investment.
22kW Variable Speed Screw Air Compressor Low Pressure 440V Direct Driven
Frequently Asked Questions
Q1: Is 22kW enough for a small factory?
Yes. It is ideal for small to medium-sized production lines.
Q2: What are the energy savings compared to fixed speed?
Savings typically range from 20–35% depending on load variation.
Q3: Is installation complicated?
No. It is delivered as a complete integrated unit.
Q4: Can voltage and frequency be customized?
Yes. Multiple voltage options are available.
