7.5KW To 400KW Low Pressure Screw Air Compressor Energy Efficient
7.5KW To 400KW Low Pressure Screw Air Compressor Energy Efficient
Specifications
Place of Origin :
made in China
Brand Name :
AIRERA
MOQ :
1 unit
Price :
520-30,000 USD
Packaging Details :
According to international standards
Delivery Time :
3-30 days
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Condition :
New Screw Air Compressor
Noise :
78dB
Cooling :
Air or Water Cooled
Power Supply :
220/380/415//440V 50/60Hz 3Ph
Size :
1540*920*1240mm
Cooling Method :
Air or Water Cooled
Colour :
Blue
Transmission Mode :
direct driven
Cooling Model :
Air cooling
Power Rating :
7.5 KW To 400 KW
Advanced Design :
Design in Germany
Start :
Delta Start
Driving System :
protection system
Inlet Pressure :
Atmospheric Pressure
Description

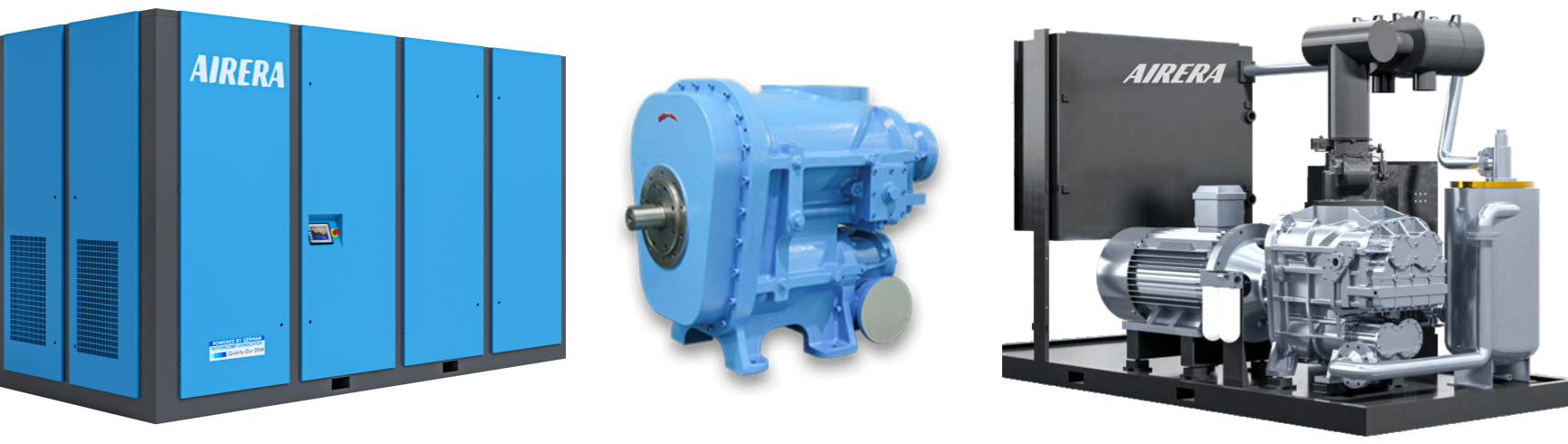

AIRERA Low-pressure Screw Air Compressors
Energy-Efficient Low-Pressure Compressed Air Solutions
AIRERA introduces its new generation of low-pressure screw air compressors, designed to deliver durable and reliable compressed air for virtually every industrial application. Our comprehensive product line addresses the growing demand for energy-efficient solutions in operations requiring 0.3-0.5 MPa pressure ranges.
Industrial Applications
Cement Manufacturing
Provides low-pressure air for material mixing, conveying, and cement bag sealing operations.
Wastewater Treatment
Supports aeration processes by supplying oxygen to processing bacteria and maintaining solids in suspension.
Pulp & Paper Mills
Delivers continuous flow of clean, dry air to maintain consistent production rates.
Glass Industry
Assists in glass liquid combustion and material transfer between processing chambers.
Mining Operations
Enables safe handling of fine materials including coal dust with controlled air pressure.
Fermentation Processes
Increases oxygen levels to support bacterial activity and complete fermentation cycles.
Pneumatic Conveying
Transfers materials between processing centers using optimized pressure combinations.
7.5KW To 400KW Low Pressure Screw Air Compressor Energy Efficient

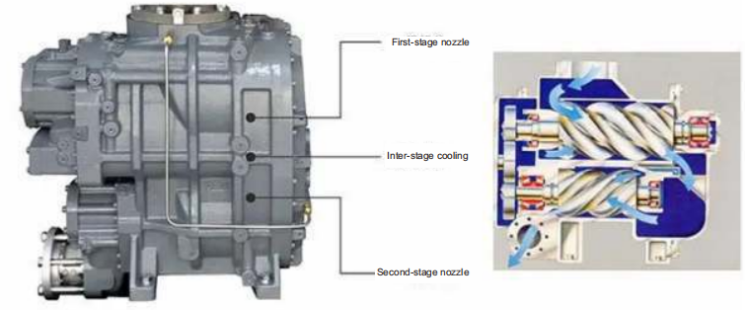

Key Performance Features
  • High performance achieved through large rotors and optimized low-speed operation
  • Enhanced cooling system with over 30% increased oil cooler surface area for reliable summer operation
  • Proprietary internal design optimizing input-to-power ratio for maximum efficiency
7.5KW To 400KW Low Pressure Screw Air Compressor Energy Efficient
Technical Specifications
Model F.A.D. Working Pressure Rated Power Air Outlet Weight Dimensions
m³/min cfm bar psig kW HP kg L * W * H (mm)
AGCD-30/4.0-C-G 6.98 246 4.0 58 30 40 DN50 2100 2000*1450*1650
AGCD-37/4.0-C-G 9.41 332 4.0 58 37 50 DN50 2150 2000*1450*1650
AGCD-45/4.0-C-G 11.43 403 4.0 58 45 60 DN65 2350 2200*1450*1650
AGCD-55/4.0-C-G 14.32 505 4.0 58 55 75 DN65 3500 2420*1530*1720
AGCD-75/4.0-C-G 19.20 678 4.0 58 75 100 DN65 3750 2420*1530*1720
AGCD-90/4.0-C-G 22.54 796 4.0 58 90 120 DN80 3800 2800*1700*1950
AGCD-110/4.0-C-G 27.57 973 4.0 58 110 150 DN80 4200 2820*1730*2100
AGCD-132/4.0-C-G 32.50 1147 4.0 58 132 180 DN100 5000 2820*1730*2100
AGCD-160/4.0-C-G 44.07 1556 4.0 58 160 215 DN100 5900 3450*2000*2050
AGCD-185/4.0-C-G 50.50 1783 4.0 58 185 250 DN150 6850 3800*2250*2350
AGCD-200/4.0-C-G 56.00 1977 4.0 58 200 265 DN150 7800 3800*2250*2350
AGCD-220/4.0-C-G 59.94 2116 4.0 58 220 300 DN150 8000 3800*2250*2350
AGCD-250/4.0-C-G 64.20 2266 4.0 58 250 335 DN150 8250 3800*2250*2350
AGCD-280/4.0-C-G 75.43 2663 4.0 58 280 475 DN200 8900 4200*2250*2350
AGCD-315/4.0-C-G 78.05 2755 4.0 58 315 420 DN200 10400 5000*2250*2350
AGCD-355/4.0-C-G 88.02 3107 4.0 58 355 475 DN200 11200 6000*2350*2500
AGCD-400/4.0-C-G 102.60 3622 4.0 58 400 533 DN250 11900 6000*2350*2500
AGCD-30/5.0-C-G 6.94 245 5.0 73 30 40 DN50 2100 2000*1450*1650
AGCD-37/5.0-C-G 9.39 331 5.0 73 37 50 DN50 2150 2000*1450*1650
AGCD-45/5.0-C-G 10.30 364 5.0 73 45 60 DN65 2350 2200*1450*1650
AGCD-55/5.0-C-G 12.17 430 5.0 73 55 75 DN65 3500 2420*1530*1720
AGCD-75/5.0-C-G 15.32 541 5.0 73 75 100 DN65 3750 2420*1530*1720
AGCD-90/5.0-C-G 22.42 791 5.0 73 90 120 DN80 3800 2800*1700*1950
AGCD-110/5.0-C-G 27.44 969 5.0 73 110 150 DN80 4200 2820*1730*2100
AGCD-132/5.0-C-G 31.25 1103 5.0 73 132 180 DN100 5000 2820*1730*2100
AGCD-160/5.0-C-G 41.20 1454 5.0 73 160 215 DN100 5900 3450*2000*2050
AGCD-185/5.0-C-G 44.34 1565 5.0 73 185 247 DN150 6850 3800*2250*2350
AGCD-200/5.0-C-G 45.78 1616 5.0 73 200 250 DN150 7800 3800*2250*2350
AGCD-220/5.0-C-G 50.46 1781 5.0 73 220 293 DN150 8000 3800*2250*2350
AGCD-250/5.0-C-G 61.90 2185 5.0 73 250 335 DN150 8250 3800*2250*2350
AGCD-280/5.0-C-G 71.07 2509 5.0 73 280 375 DN200 8900 4200*2250*2350
AGCD-315/5.0-C-G 81.00 2859 5.0 73 315 535 DN200 10400 5000*2250*2350
AGCD-355/5.0-C-G 87.55 3091 5.0 73 355 473 DN200 11200 6000*2350*2500
AGCD-400/5.0-C-G 102.20 3608 5.0 73 400 535 DN250 11900 6000*2350*2500
Important Notes
  • Parameters and colors are designed according to customer requirements. Reference parameters may vary; final specifications in technical drawings shall prevail.
  • Cooling methods (air/water), weight, and dimensions can be customized based on user requirements as specified in final orders and technical agreements.
  • Company reserves the right to modify parameters without prior notice.
  • Warranty coverage: 2 years for compressor, 5 years for air end.
  • Certifications include ISO, CE, TUV, GA, and SGS.
