High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
Specifications
Brand Name :
AIRERA
Model Number :
LGCD-500II
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Air capacity（m3/min） :
84.8~115.90
Working Pressure :
0.7~1.3MPa
Cooling type :
Air cooling
Driven type :
Direct driven
Motor power :
500KW
Description
AIRERA 500 kW Smart Compressor: Seamless High-Temp Operation & Lowest Exhaust for Green Workshop Central Power

Designed for modern mega-factories, the AIRERA 500 kW digitalized compressor redefines stability for central air systems. It effortlessly handles heat accumulation inside plant rooms, showing incredible ambient tolerance. Its pioneering deep-cooling exhaust technology suppresses discharge air to minimal temperatures, significantly boosting whole-plant heat recovery efficiency and air purity. By merging IoT predictive analytics with a high-grade, wear-resistant architecture, it senses running conditions to self-optimize—delivering zero-fluctuation pressure for large industrial parks and safeguarding green manufacturing 24/7.

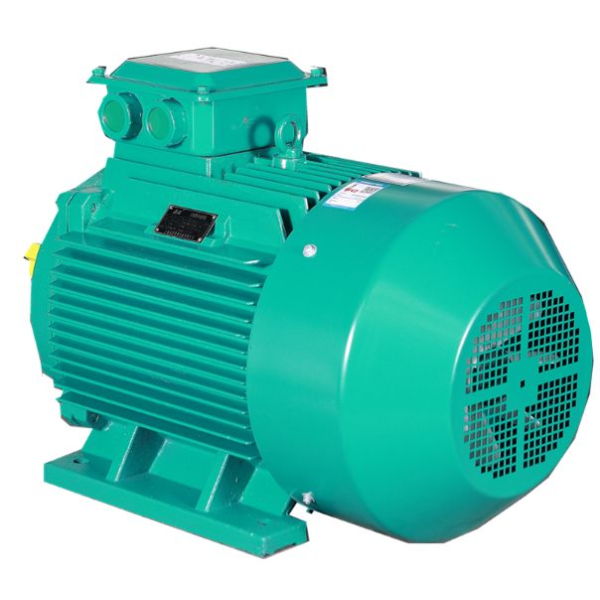

  • High-efficient motor

Reach European IE-3 standard & Australian MEPS standard.IP 55 protection standard in SF1.2.With self-cooling fan for high ambient temperature.Stable and reliable.


High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation

  • Air end

Higher efficiency than single stage(>15-30%),bigger air flow,low noisy,power saving,reduce exhaust temperature and improve the volumetric efficiency of the compressor.It can make the gas force smaller and more uniform.


High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation

  • Cooling air flow

A separate generously sized cooling air fan provides several times the minimum required volume for the motors.The motor is sited in the main cooling air intake flow, which means:the coolest air crosses the motor first, increased service life.The ambient cooling air also cools the switch cabinet and the electrical components , which ensures:low component temperature and extended service life.

High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation


Technical Specifications -LGCD-500II Diesel Portable Compressor
LGCD-500II Diesel Portable Compressor Parameters
ITEM UNIT MODEL LGCD-500II
Air capacity m³/min 84.8`115.90
Working pressure MPa 0.7~1.3
Compressor type
Oil inject dual stage screw compressor
Cooling type

Air cooling
Driven type
Direct driven
Inlet status Temperature ℃ ≤45
Inlet status Pressure MPa Atmospheric pressure
Inlet status Relative humidity
≤90%
Noise Level dB(A) ≤79
Residual oil content ppm ≤2
Drive rotor speed rpm 1490
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m3/hr 31200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77-1.43
Lubricating oil volume L 200
Lubricating oil brand
ROTORCOMP
Compressed air outlet connection
DN200
Dimension L mm 4500
Dimension W mm 2500
Dimension H mm 2200
Net Weight kg 12900
Motor Model
Y2-450L2-4
Motor Speed rpm 1490
Motor Rated Power KW 500
Motor Service factor
1.2
Motor Protection type
IP55
Motor Efficiency
IE3
Motor Startup mode
ʏ-Δ starting
Motor Voltage V 380(Special on request)
Motor Frequency Hz 50(Special on request)
Motor Rated current A 895
Motor Weight of motor kg 2650
High-Temperature Compatibility + Low-Temperature Exhaust: 500 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
CALT LGCD-500II Diesel Portable Compressor: Frequently Asked Questions (FAQ)
How does the 500 kW model achieve "seamless operation" under extreme high temperatures in mega-factories?
The model uses digital smart fans and dynamic temperature control algorithms to actively adjust cooling based on plant room heat. Paired with electrical components and specialized lubricants rated for 50°C, it ensures stable full-load operation without tripping during summer heat.
What is the pioneering "deep-cooling exhaust technology" and how does it contribute to a green workshop?
This technology suppresses discharge air to minimal temperatures via a super-cooler, slashing moisture condensation in pipes. It seamlessly pairs with heat recovery systems to convert waste heat into reusable hot water, driving low-carbon and eco-friendly manufacturing.
As the central power source, how does this model guarantee "zero fluctuation" in air pressure across multiple production lines?

Built with high-precision pressure sensors and a fast-response variable speed drive, it detects usage changes in microseconds. By self-optimizing output power, it maintains constant pressure even when multiple lines operate simultaneously, avoiding product defects from pressure drops.
