Specifications
Brand Name :
AIRERA
Model Number :
LGCD-400II
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Air capacity（m3/min） :
64.8~85.40
Working Pressure :
0.7~1.3MPa
Cooling type :
Air cooling
Driven type :
Direct driven
Motor power :
400KW
Description

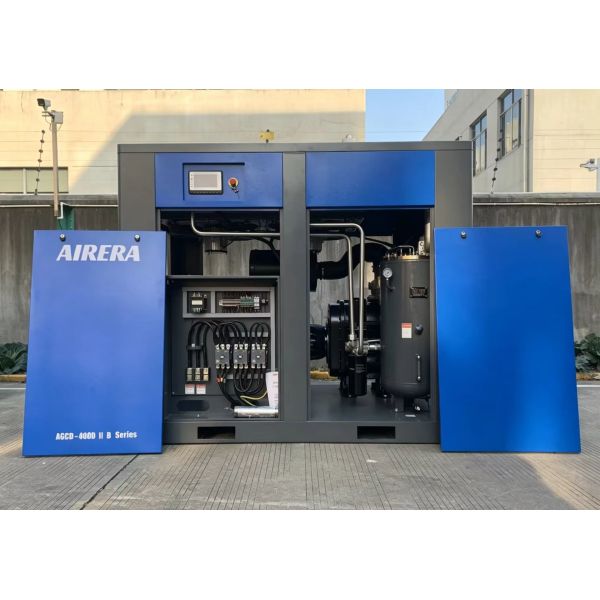

AIRERA 400 kW Industrial Air Compressor: High-Temp Resilience & Low-Temp Exhaust for Uninterrupted Workshop Operation

As the heartbeat of industrial power, the AIRERA 400 kW industrial air compressor is engineered for the most demanding environments. Featuring exceptional high-temperature resilience, it thrives under extreme conditions, while its innovative low-temperature exhaust design significantly extends component lifespan and slashes maintenance costs. Whether tackling high-intensity continuous production or complex industrial processes, AIRERA delivers a steady, reliable stream of compressed air—eliminating unplanned downtime and safeguarding your workshop's high-efficiency operation 24/7.

  • Fan motor

Motor IP class : IP44;Motor without self cooled function;Motor without service factor;Low cooling air flow;Lower cooling air pressure;


High-Temperature Compatibility + Low-Temperature Exhaust: 400 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation

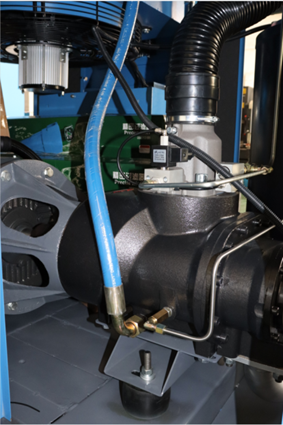

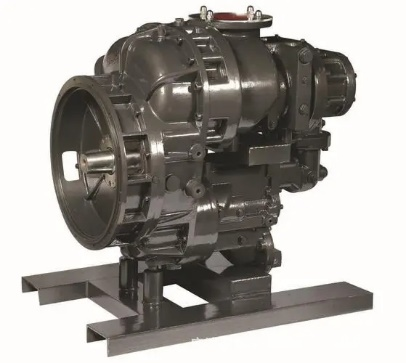

  • Air end

Higher efficiency than single stage(>15-30%),bigger air flow,low noisy,power saving,reduce exhaust temperature and improve the volumetric efficiency of the compressor.It can make the gas force smaller and more uniform.


High-Temperature Compatibility + Low-Temperature Exhaust: 400 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation

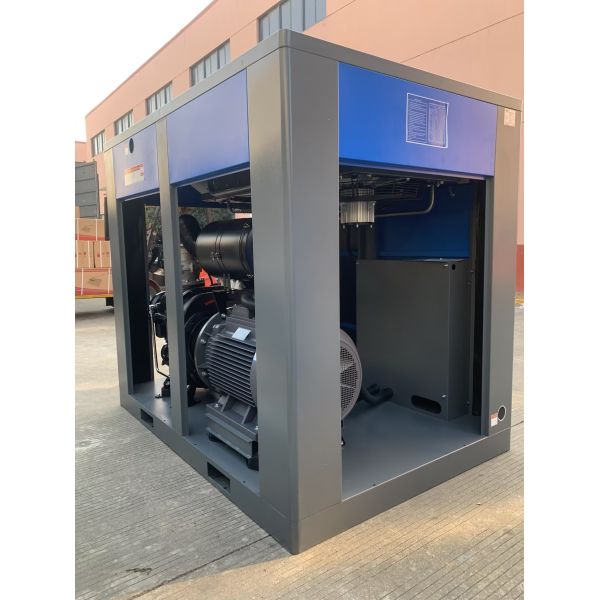

  • Cooling air flow

A separate generously sized cooling air fan provides several times the minimum required volume for the motors.The motor is sited in the main cooling air intake flow, which means:the coolest air crosses the motor first, increased service life.The ambient cooling air also cools the switch cabinet and the electrical components , which ensures:low component temperature and extended service life.

High-Temperature Compatibility + Low-Temperature Exhaust: 400 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation


Technical Specifications -LGCD-400II Diesel Portable Compressor
LGCD-400II Diesel Portable Compressor Parameters
ITEM UNIT MODEL LGCD-400II
Air capacity m³/min 64.8`85.40
Working pressure MPa 0.7~1.3
Compressor type
Oil inject dual stage screw compressor
Cooling type

Air cooling
Driven type
Direct driven
Inlet status Temperature ℃ ≤45
Inlet status Pressure MPa Atmospheric pressure
Inlet status Relative humidity
≤90%
Noise Level dB(A) ≤79
Residual oil content ppm ≤2
Drive rotor speed rpm 1490
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m3/hr 26200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77-1.43
Lubricating oil volume L 200
Lubricating oil brand
ROTORCOMP
Compressed air outlet connection
DN150
Dimension L mm 4500
Dimension W mm 2500
Dimension H mm 2200
Net Weight kg 11500
Motor Model
Y2-450L1-4
Motor Speed rpm 1490
Motor Rated Power KW 400
Motor Service factor
1.2
Motor Protection type
IP55
Motor Efficiency
IE3
Motor Startup mode
ʏ-Δ starting
Motor Voltage V 380(Special on request)
Motor Frequency Hz 50(Special on request)
Motor Rated current A 710
Motor Weight of motor kg 2450
High-Temperature Compatibility + Low-Temperature Exhaust: 400 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
CALT LGCD-400II Diesel Portable Compressor: Frequently Asked Questions (FAQ)
How does the 400 kW compressor achieve energy savings during 24/7 operation?
AIRERA 400 kW compressor offers optional PM VSD technology to precisely adjust motor speed based on actual air demand. By eliminating energy waste from frequent unloading, it improves energy efficiency by 20% to 35%, significantly reducing 24/7 electricity costs.
How does the machine maintain stable operation in harsh, dusty environments?
Equipped with a two-stage heavy-duty air filtration system, it blocks 99.9% of micro-dust from entering the air-end. Coupled with an IP54-certified dustproof electrical cabinet and durable rigid piping, the unit ensures stable and long-term operation in dusty environments.
How does the smart monitoring system help factories eliminate sudden shutdowns?

The IoT system monitors temperature and pressure in real time. Its predictive algorithm issues alerts before filter clogging or oil overheating occurs, allowing teams to schedule maintenance without halting production, reducing unplanned downtime to zero.
