High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
Specifications
Brand Name :
AIRERA
Model Number :
LGCD-132II
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Air capacity（m3/min） :
19.5~26.9
Working Pressure :
0.7~1.3MPa
Cooling type :
Air cooling
Driven type :
Direct driven
Motor power :
132KW
Description
AIRERA 132 kW Industrial Air Compressor: High-Temperature Compatibility & Low-Temperature Exhaust for Stable, Uninterrupted Workshop Operation

Engineered for heavy-duty reliability, the AIRERA 132 kW Industrial Air Compressor is your ultimate solution for large-scale, uninterrupted workshop productivity. Featuring exceptional high-temperature compatibility, it operates flawlessly in demanding environments while maintaining a low-temperature exhaust to protect downstream air treatment systems and extend equipment lifespan. Experience stable, high-volume, and continuous power delivery designed to keep your production lines running seamlessly 24/7.

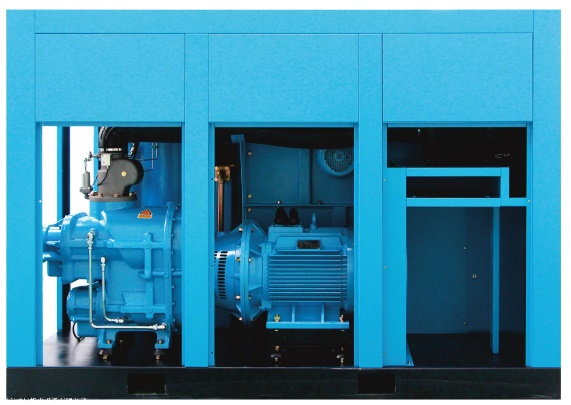

  • Cooling air flow

A separate generously sized cooling air fan provides several times the minimum required volume for the motors.The motor is sited in the main cooling air intake flow, which means:the coolest air crosses the motor first, increased service life.The ambient cooling air also cools the switch cabinet and the electrical components , which ensures:low component temperature and extended service life.


High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation

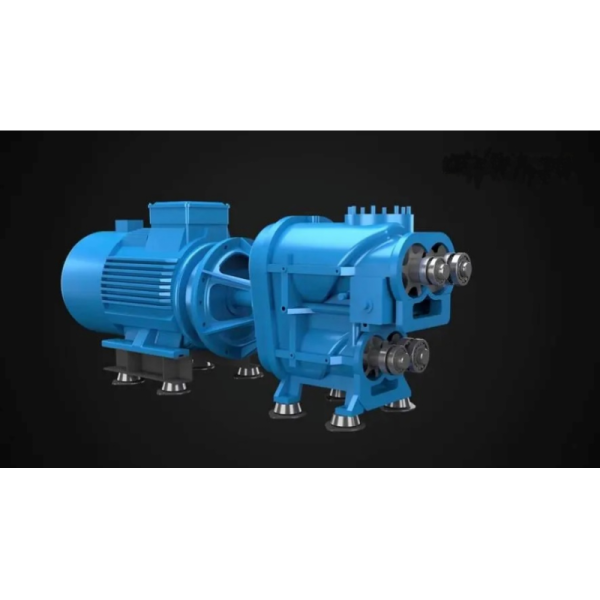

  • Direct driven

Big rotors and low speed;Lower maitainace cost.


High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation

  • Fan motor

Motor IP class : IP44;Motor without self cooled function;Motor without service factor;Low cooling air flow;Lower cooling air pressure.


High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation


Technical Specifications -LGCD-132II Diesel Portable Compressor
LGCD-132II Diesel Portable Compressor Parameters
ITEM UNIT MODEL LGCD-132II
Air capacity m³/min 19.5`26.9
Working pressure MPa 0.7~1.3
Compressor type
Oil inject dual stage screw compressor
Cooling type

Air cooling
Driven type
Direct driven
Inlet status Temperature ℃ ≤45
Inlet status Pressure MPa Atmospheric pressure
Inlet status Relative humidity
≤90%
Noise Level dB(A) ≤79
Residual oil content ppm ≤2
Drive rotor speed rpm 1490
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m3/hr 14200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77-1.43
Lubricating oil volume L 70
Lubricating oil brand
ROTORCOMP
Compressed air outlet connection
G2-1/2
Dimension L mm 2540
Dimension W mm 1640
Dimension H mm 1800
Net Weight kg 2200
Motor Model
Y2280M2-4
Motor Speed rpm 1490
Motor Rated Power KW 132
Motor Service factor
1.2
Motor Protection type
IP55
Motor Efficiency
IE3
Motor Startup mode
ʏ-Δ starting
Motor Voltage V 380(Special on request)
Motor Frequency Hz 50(Special on request)
Motor Rated current A 242
Motor Weight of motor kg 1010
High-Temperature Compatibility + Low-Temperature Exhaust: 132 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
CALT LGCD-132II Diesel Portable Compressor: Frequently Asked Questions (FAQ)
With a large 132 kW power rating, how does AIRERA ensure this compressor doesn't cause excessive electricity costs?
Energy efficiency is paramount for a 132 kW unit. AIRERA integrates premium IE4/IE5 ultra-efficient motors and leverages advanced Variable Speed Drive (VSD/VFD) technology. By matching the motor's power consumption precisely with the workshop’s real-time air demand, it eliminates energy loss from frequent unloading and venting. This can lower the Specific Power Consumption ($SER$) and reduce overall electricity costs by up to $30%text{--}35%$ compared to fixed-speed alternatives.
What type of drive connection does the AIRERA 132 kW compressor use to ensure high reliability under continuous load?
To handle the massive torque of a 132 kW motor without power loss, AIRERA utilizes a $1:1$ direct-drive connection via a heavy-duty flexible coupling, rather than a belt drive. This eliminated-slip design ensures $100%$ power transmission efficiency, removes belt wear and tensioning maintenance, and significantly reduces mechanical vibration, further securing the uninterrupted 24/7 runtime of the workshop.
High operating temperatures usually accelerate oil degradation. How does AIRERA guarantee long lubricant life in this 132 kW model?

AIRERA uses specially formulated, high-thermal-stability synthetic lubricants designed for heavy-duty 132 kW screw air ends. This premium fluid resists oxidation and carbon deposit (sludge) formation even under continuous thermal stress. Combined with our high-efficiency oil separator and multi-stage cooling that maintains optimal oil temperatures, the lubricant service interval is extended to 4,000–6,000 hours, keeping internal components perfectly protected.
