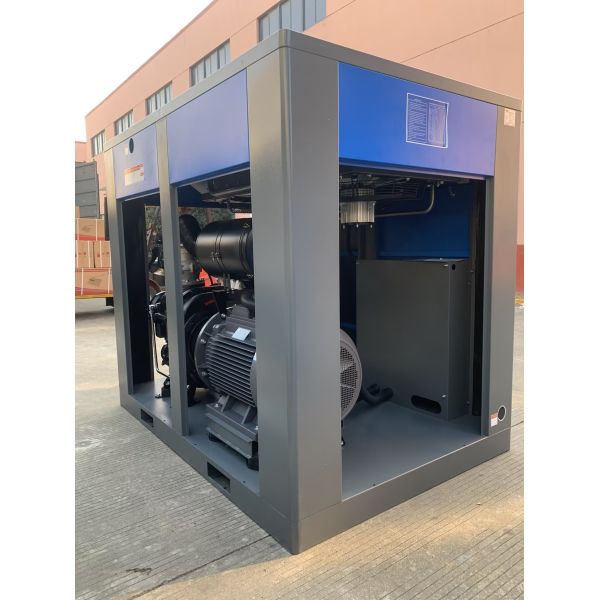

High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
Specifications
MOQ :
1 unit
Air capacity（m3/min） :
84.8~119.90
Price :
Negotiable
Delivery Time :
5-15 days
Payment Terms :
TT/LC,Western Union,D/P,D/A
Working Pressure :
0.7~1.3MPa
Place of Origin :
made in China
Driven type :
Direct driven
Cooling type :
Air cooling
Certification :
ISO、CE、TUV
Packaging Details :
wooden case
Brand Name :
AIRERA
Model Number :
LGCD-560II
Motor power :
560KW
Supply Ability :
2,000-3,000 per month
Description
AIRERA 560kW Industrial Air Compressor: High-Temperature Resilience & Low-Temperature Exhaust for Stable, Uninterrupted Workshop Operation

Efficiency Meets Resilience. Engineered for demanding industrial environments, the AIRERA 560kW Industrial Air Compressor is your ultimate workshop powerhouse. Featuring exceptional high-temperature compatibility, it thrives under extreme conditions, while its advanced low-temperature exhaust technology minimizes thermal load to protect downstream equipment. With a robust 560kW power output, this compressor delivers a continuous, high-volume air supply, ensuring stable, 24/7 uninterrupted operation. Eliminate downtime risks and maximize production efficiency—AIRERA is the beating heart of your factory floor.

  • Fan motor

Motor IP class : IP44;Motor without self cooled function;Motor without service factor;Low cooling air flow;Lower cooling air pressure;


High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation

  • Air end

Higher efficiency than single stage(>15-30%),bigger air flow,low noisy,power saving,reduce exhaust temperature and improve the volumetric efficiency of the compressor.It can make the gas force smaller and more uniform.


High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation

  • Cooling air flow

A separate generously sized cooling air fan provides several times the minimum required volume for the motors.The motor is sited in the main cooling air intake flow, which means:the coolest air crosses the motor first, increased service life.The ambient cooling air also cools the switch cabinet and the electrical components , which ensures:low component temperature and extended service life.

High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation


Technical Specifications -LGCD-560II Diesel Portable Compressor
LGCD-560II Diesel Portable Compressor Parameters
ITEM UNIT MODEL LGCD-560II
Air capacity m³/min 84.8`119.90
Working pressure MPa 0.7~1.3
Compressor type
Oil inject dual stage screw compressor
Cooling type

Air cooling
Driven type
Direct driven
Inlet status Temperature ℃ ≤45
Inlet status Pressure MPa Atmospheric pressure
Inlet status Relative humidity
≤90%
Noise Level dB(A) ≤79
Residual oil content ppm ≤2
Drive rotor speed rpm 1490
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m3/hr 26200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77-1.43
Lubricating oil volume L 200
Lubricating oil brand
ROTORCOMP
Compressed air outlet connection
DN200
Dimension L mm 4500
Dimension W mm 2500
Dimension H mm 2200
Net Weight kg 13500
Motor Model
Y2-500L2-4
Motor Speed rpm 1490
Motor Rated Power KW 560
Motor Service factor
1.2
Motor Protection type
IP55
Motor Efficiency
IE3
Motor Startup mode
ʏ-Δ starting
Motor Voltage V 380(Special on request)
Motor Frequency Hz 50(Special on request)
Motor Rated current A 1005
Motor Weight of motor kg 2950
High-Temperature Compatibility + Low-Temperature Exhaust: 560 kW Industrial Air Compressor for Stable, Uninterrupted Workshop Operation
CALT LGCD-560II Diesel Portable Compressor: Frequently Asked Questions (FAQ)
As a 560kW high-capacity model, does the AIRERA compressor use single-stage or two-stage compression? How does this impact stability?

The AIRERA 560kW unit comes standard with advanced two-stage compression technology.

  • Reduced Bearing Load: By distributing the total compression ratio across two sequential air ends, the pressure and thermal load on each rotor are significantly decreased.

  • Enhanced Stability: Lower internal pressure and reduced inter-stage temperatures ensure much more reliable 24/7 continuous operation. Furthermore, this design increases free air delivery (FAD) by approximately 8%–15% compared to single-stage alternatives, delivering a perfect combination of high output and extended lifespan.

In high-temperature environments, lubricating oil is prone to emulsification or degradation. How does AIRERA address this issue?
We utilize premium fully-synthetic, long-life lubricants that exhibit exceptional anti-oxidation and high-temperature resilience, preventing sludge formation even under continuous high-pressure conditions. Coupled with an intelligent thermal control valve, the system precisely maintains the oil temperature within its optimal viscosity range. This effectively prevents moisture condensation (which causes emulsification) while avoiding excessive heat that could compromise lubrication quality.
Downtime for a high-power machine can stall an entire production line. What is the maintenance interval for this compressor, and is the process complicated?

AIRERA is engineered with an "Easy-Maintenance" philosophy at its core.

  • Extended Intervals: Thanks to our low-temperature exhaust technology and premium filtration materials, the replacement lifecycle for air filters, oil filters, and oil-gas separators is extended by over 20% compared to conventional equipment.

  • Accessible Design: The unit features a fully-opening enclosure door structure, making all routine service points (filters, valves, drains) easily accessible. Standard scheduled maintenance can be completed within 1–2 hours, minimizing planned downtime.
