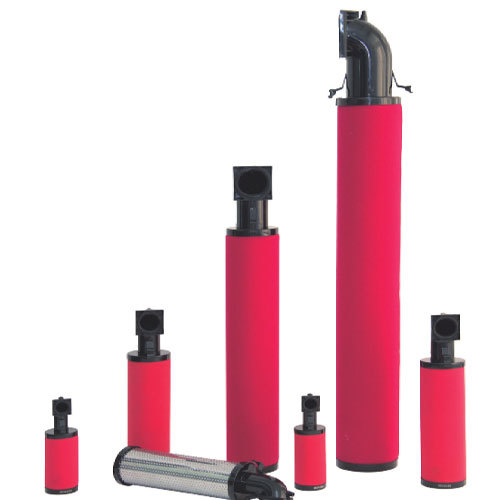

0.01μM-1μM Ingersoll Rand Air Filter Replacement Elements For Compressed Air
0.01μM-1μM Ingersoll Rand Air Filter Replacement Elements For Compressed Air
Specifications
Brand Name :
FU PRO
Certification :
CE
Place of Origin :
CHINA
MOQ :
3
Price :
100-10000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard Models:Shipment will be made within 20-30 working days upon receipt of the advance payment and order confirmation. Non-standard Models:Shipment will be made within 30–80 working days upon receipt of the advance payment and order confirmation.
Packaging Details :
Bubble Wrap / Stretch Wrap
Model Series :
Ingersoll Rand Replacement Series
Working Pressure :
1.0 MPa
Brond :
FU PROMIS
Oil Content (Output) :
GP: 0.5ppm, HE: 0.01ppm, AC: 0.003ppm
GP: 0.5ppm, HE: 0.01ppm, AC: 0.003ppm :
Remove oil, solid particles, and odors from compressed air
Application :
Compatible with Ingersoll Rand compressed air systems
Material Type :
Activated carbon and high-efficiency filter media (optional)
Description


Product Introduction

The Ingersoll Rand Series Replacement Precision Filter Elements are high-compatibility filtration solutions specially designed for Ingersoll Rand compressed air systems. They are available in four grades: GP, HE, AC, and DP, covering full-scenario needs from general dust removal and high-efficiency oil removal to activated carbon deep oil removal. They stably adapt to working conditions with a flow rate of 0.53 Nm³/min, delivering filtration performance consistent with original filter elements, and providing users with a cost-effective choice for air source purification.

Core Features

  1. OEM-Level Compatibility, Direct Replacement Without Modification

    Fully compatible with corresponding Ingersoll Rand compressed air filters, they can directly replace original filter elements (Part No. 88342977 / 88343009 / 88343066 / 88343033). Installation is quick and easy, requiring no modifications to existing equipment or pipelines.
  2. Multi-Grade Filtration Options for Diverse Purification Needs

    Four filtration grades are available to meet different requirements:
    • GP Grade: 1μm filtration accuracy, oil content ≤0.5ppm, for basic oil and impurity removal;
    • HE Grade: 0.01μm filtration accuracy, oil content ≤0.01ppm, for high-efficiency oil removal;
    • AC Grade: 0.01μm activated carbon filtration, oil content ≤0.003ppm, for deep oil removal;
    • DP Grade: 1μm dust removal grade, for efficient solid impurity removal.
  3. Stable and Efficient Performance Meeting OEM Standards

    Made with high-quality filter media, the filter elements deliver OEM-standard filtration efficiency and oil content control, stably providing low-oil-content air output, protecting downstream equipment, and extending system service life.
  4. Cost-Effective Solution to Reduce Long-Term Operating Costs

    As a cost-effective alternative to OEM parts, they offer original-level filtration performance at a significantly lower procurement cost, without compromising system stability. This provides enterprises with an economical option for compressed air system maintenance.

Technical Parameters (for 0.53 Nm³/min flow rate)





Item Specification
Product Series Ingersoll Rand Series Replacement Precision Filter Elements
Applicable Flow Rate 0.53 Nm³/min
GP Grade Part No. 88342977
GP Grade Filtration Accuracy 1μm
GP Grade Outlet Oil Content ≤0.5 ppm
HE Grade Part No. 88343009
HE Grade Filtration Accuracy 0.01μm
HE Grade Outlet Oil Content ≤0.01 ppm
AC Grade Part No. 88343066
AC Grade Filtration Accuracy 0.01μm (Activated Carbon)
AC Grade Outlet Oil Content ≤0.003 ppm
DP Grade Part No. 88343033
DP Grade Filtration Accuracy 1μm (Dust Removal Grade)
Applicable Equipment Corresponding Ingersoll Rand compressed air filters

Application Industries

  • General Manufacturing: Provides multi-stage purification for compressed air systems supporting pneumatic tools and automated production lines.
  • Automotive Manufacturing: Delivers low-oil-content compressed air for painting and welding workshops to ensure coating quality.
  • Food & Beverage Industry: Supplies low-oil-content clean air for production processes to prevent product contamination.
  • Electronics Manufacturing: Offers low-oil, high-purity compressed air for precision electronic equipment to avoid damage.
  • Chemical & Textile Industry: Provides efficient filtration for compressed air systems supporting powder conveying and air-jet looms.

Closing

The Ingersoll Rand Series Replacement Precision Filter Elements provide an efficient and reliable alternative purification solution for Ingersoll Rand compressed air system users, combining OEM-level compatibility, multi-grade filtration options, and cost-effectiveness. They effectively reduce operating costs while ensuring air quality. Bulk orders and customized selection are available. We welcome inquiries from global buyers.
