YQS Flange Two Stage Cyclone Air Water Separator 1.0MPa carbon steel
YQS Flange Two Stage Cyclone Air Water Separator 1.0MPa carbon steel
Specifications
Brand Name :
FU PRO
Certification :
CE
Place of Origin :
CHINA
MOQ :
3
Price :
100-10000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard Models:Shipment will be made within 20-30 working days upon receipt of the advance payment and order confirmation. Non-standard Models:Shipment will be made within 30–80 working days upon receipt of the advance payment and order confirmation.
Packaging Details :
Bubble Wrap / Stretch Wrap
Model No. :
YQS
Product Type :
Flange
Working Pressure :
1.0 MPa
Brond :
FU PROMIS
Liquid Water Removal Efficiency :
99%
Structure Design :
Two-stage Cyclone Separation
Recommended Installation Position :
Between Air Receiver Tank and Refrigerated Air Dryer, After Air Compressor
Description

Product Introduction

The YQS Series Flange Cyclone Air-Water Separator (1.0MPa) is specially designed for pre-dewatering at the front end of compressed air systems. It efficiently removes 99% of liquid water from compressed air, significantly improving the performance of downstream purification equipment such as filters and dryers. With a unique two-stage cyclone separation structure, it offers far higher separation efficiency than traditional air-water separators. As a key pre-treatment device installed between the air receiver tank and refrigerated dryer, it is widely compatible with various industrial compressed air pipelines.

Core Features

  1. Ultra-High Dewatering Efficiency to Protect Downstream Equipment

    It removes 99% of liquid water from compressed air, greatly reducing the workload of subsequent drying and filtration equipment, extending service life, and lowering maintenance costs.
  2. Two-Stage Cyclone Separation Design Outperforms Traditional Products

    The unique two-stage cyclone separation structure provides higher efficiency and more stable performance than conventional separators, with no degradation over long-term operation.
  3. Standard Flange Interface for Industrial Pipeline Systems

    The flange connection design enables direct integration with standard industrial pipelines, ensuring easy installation and reliable sealing, suitable for standard industrial pressure conditions up to 1.0MPa.
  4. Flexible Installation for Various System Layouts

    It is recommended to install the separator after the air compressor, between the receiver tank and refrigerated dryer. It can also be flexibly positioned according to system requirements, meeting pre-dewatering needs for various industrial compressed air systems.

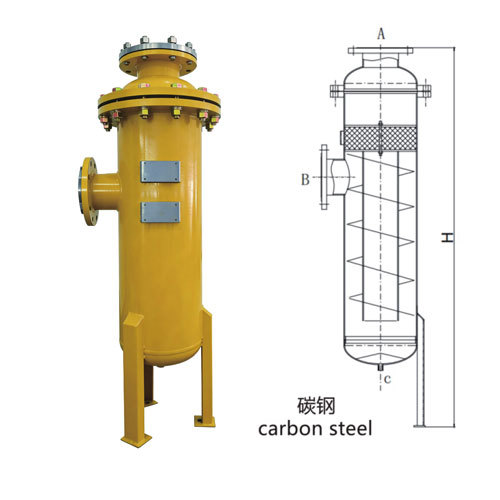

Technical Parameters (YQS-30 as example)





Item Specification
Product Name YQS Series Flange Cyclone Air-Water Separator (1.0MPa)
Model YQS-30
Working Pressure 1.0MPa
Flow Rate 30-40 Nm³/min
Barrel Diameter (A) 159 mm
Connection (B) DN80 (Flange Type)
Height (H) 1175 mm
Dewatering Efficiency 99% (liquid water)

Application Industries

  • General Manufacturing: Front-end dewatering for compressed air systems supporting automated production lines and pneumatic tools.
  • Automotive Manufacturing: Removes liquid water from compressed air systems in painting and welding workshops to ensure air purity.
  • Chemical & Building Materials: Pre-treatment for compressed air systems supporting powder conveying and pneumatic valves.
  • Textile Industry: Eliminates moisture from compressed air for air-jet looms and printing machines to prevent equipment corrosion.
  • Food & Pharmaceutical Industry: Provides front-end dewatering for compressed air purification systems, protecting downstream filters and dryers.

Closing

The YQS Series Flange Cyclone Air-Water Separator provides a reliable pre-treatment solution for various industrial compressed air systems, with core advantages of ultra-high dewatering efficiency, two-stage cyclone separation technology, and convenient installation compatibility. It effectively protects downstream purification equipment and reduces system operating costs. Bulk orders and customized selection are available. We welcome inquiries from global buyers.
