2-Tyre Portable Mobile Compressor | 80±3dBA Low Noise & 1620kg Net Weight
2-Tyre Portable Mobile Compressor | 80±3dBA Low Noise & 1620kg Net Weight
Specifications
Brand Name :
FU PRO
Model Number :
DS
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
30000-500000
Payment Terms :
50% T/T deposit,50% T/T balance before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard units: 30-60 working days after deposit received；Custom/non-standard units: 30-80 working days after deposit received
Packaging Details :
Bubble Wrap / Stretch Wrap
Type :
Smart Mobile Screw Air Compressor
Engine :
Yanmar
Pressure Control :
±0.001 MPa
Operating Tem :
-20℃ ~ 60℃
Communication :
Ethernet, Isolated Serial Port
Features :
Remote Diagnostics, Auto Updates
Air Delivery :
3–10 m³/min
Description

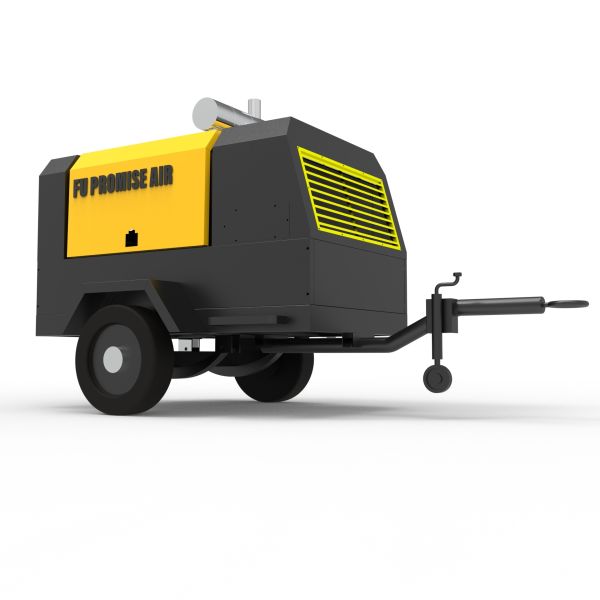

FU-DS167/10 Mobile Diesel Air Compressor | 10m³/min Flow Rate, 10bar Operating Pressure

Product Introduction

FU-DS167/10 mobile diesel air compressor is equipped with QSB3.9-C130 diesel engine of 97Kw rated power with single-stage compression design, delivering 10m³/min flow rate at 10bar operating pressure. It is fitted with 100L fuel tank and 2-tyre mobile base, sound level 80±3dBA, maximum ambient working temperature up to 50℃, engine speed ranging from 1500rpm to 2200rpm. Overall dimension 3750×1980×1700mm and net weight 1620kg. All units pass full-load aging inspection before delivery.

Core Selling Paragraph

QSB3.9-C130 diesel engine with 97Kw rated power and single-stage compression ensures steady 10m³/min airflow and stable 10bar working pressure; standard 100L fuel tank plus dual-wheel lightweight chassis with 1500~2200rpm flexible rotating speed realizes long continuous operation and easy transportation with 1620kg compact body.

Specification Table





Item Specification
Model FU-DS167/10 Mobile Diesel Air Compressor
Flow Rate 10 m³/min
Operating Pressure 10 bar
Fuel Tank Capacity 100 L
Sound Level 80±3 dBA
Maximum Ambient Temperature 50 ℃
Number of Stage 1
Diesel Engine Model QSB3.9-C130
Engine Rated Power 97 Kw
Speed at Full Load 2200 rpm
Minimum Load Speed 1500 rpm
Overall Dimensions 3750×1980×1700 mm
Number of Tire 2
Net Weight 1620 kg

FAQ

Q1: What engine is installed on this portable compressor?

A: It adopts QSB3.9-C130 diesel engine as power source.

Q2: What is the standard airflow and working pressure?

A: Rated flow 10m³/min under stable 10bar operating pressure.

Q3: How many moving tires does the machine equip?

A: Equipped with 2 tires for flexible field transfer.

Q4: What’s the running noise of the whole unit?

A: Operating sound is controlled within 80±3dBA.

Q5: What is the fuel tank volume?

A: Standard 100-liter fuel tank for long-hour continuous working.
