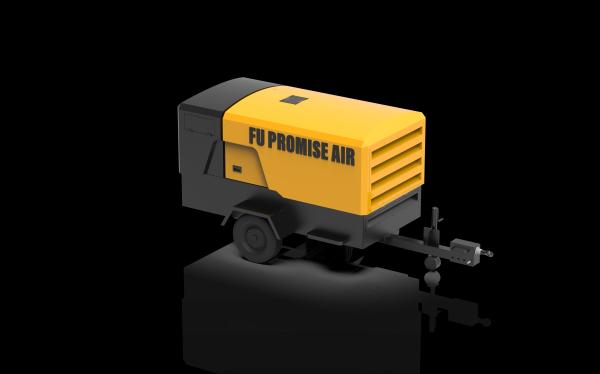

C4.4DIT Powered Mobile Compressor |70Kw Rated Power &100L Fuel Tank
C4.4DIT Powered Mobile Compressor |70Kw Rated Power &100L Fuel Tank
Specifications
Brand Name :
FU PRO
Model Number :
FU-DS150/7
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
30000-500000
Payment Terms :
50% T/T deposit,50% T/T balance before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard units: 30-60 working days after deposit received；Custom/non-standard units: 30-80 working days after deposit received
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FU-DS150/7
Flow Rate :
9 m³/min
Operating Pressure :
7 bar
Fuel Tank Capacity :
100 L
Sound Level :
80±3 dBA
Maximum Ambient Temperature :
50 ℃
Number of Stage :
1
Diesel Engine Model :
C4.4DIT
Description
FU-DS150/7 Mobile Diesel Air Compressor | 9m³/min Flow Rate,7bar Operating Pressure

Product Introduction

FU-DS150/7 mobile diesel air compressor is equipped with C4.4DIT diesel engine of 70Kw rated power and single-stage compression. It delivers 9m³/min flow rate at 7bar operating pressure. Fitted with 100L fuel tank, 2-tyre moving base, sound level 80±3dBA, maximum ambient temperature up to 50℃, engine speed ranging from 1000rpm to 2000rpm. Overall dimension 3626×1700×1665mm and net weight 1450kg. All machines complete full-load aging inspection before shipment.

Core Selling Paragraph

C4.4DIT diesel engine with 70Kw rated power together with single-stage compression delivers steady 9m³/min airflow and stable 7bar working pressure; 100L standard fuel tank plus dual-wheel lightweight chassis with 1000~2000rpm flexible speed enables easy transportation and long continuous running with compact 1450kg body.

Specification Table





Item Specification
Model FU-DS150/7 Mobile Diesel Air Compressor
Flow Rate 9 m³/min
Operating Pressure 7 bar
Fuel Tank Capacity 100 L
Sound Level 80±3 dBA
Maximum Ambient Temperature 50 ℃
Number of Stage 1
Diesel Engine Model C4.4DIT
Engine Rated Power 70 Kw
Speed at Full Load 2000 rpm
Minimum Load Speed 1000 rpm
Overall Dimensions 3626×1700×1665 mm
Number of Tire 2
Net Weight 1450 kg

FAQ

Q1: What engine model is matched for this portable compressor?

A: It is equipped with C4.4DIT diesel engine.

Q2: What is the rated airflow and working pressure?

A: Rated flow 9m³/min under 7bar working pressure.

Q3: How many moving tires does the unit have?

A: Equipped with 2 tires for easy onsite transfer.

Q4: What is the operating noise of this machine?

A: Running sound is kept at 80±3dBA.

Q5: What’s the capacity of the factory equipped fuel tank?

A: Standard 100-liter fuel tank for medium continuous operation.
