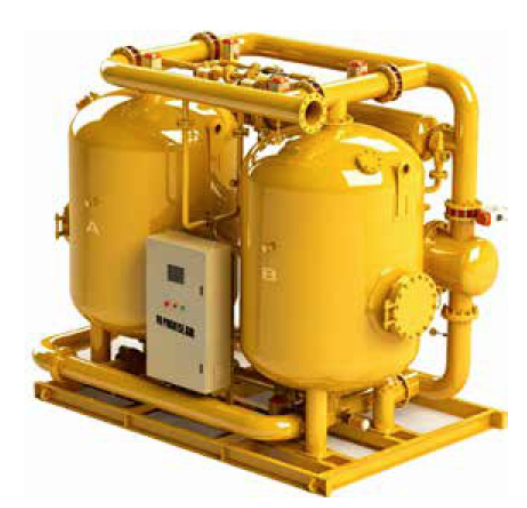

Heat Regeneration Eco Friendly Compressed Air Dryer FU PROMISE Micro Adsorption Air Dryer
Heat Regeneration Eco Friendly Compressed Air Dryer FU PROMISE Micro Adsorption Air Dryer
Specifications
Brand Name :
FU PRO
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
3000-150000
Payment Terms :
Standard In-Stock Items: 100% payment in advance. 2. Non-standard / Custom-Made Models: 50% deposit in advance,the remaining 50% before shipment.
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
1. Standard In-Stock Models: Shipping will be arranged within 3–7 working days upon receipt of deposit and order confirmation. 2. Non-standard / Custom-Made Models: Shipping will be arranged within 20–30 working days upon receipt of deposit and order confi
Packaging Details :
Bubble Wrap / Stretch Wrap
Processing Capacity :
45(Nm³/min)(CD-450MCW)
Pressure Range :
0.6~1.0MPa
Intake air temperature: :
≤45°C
Inlet Air Temperature :
Tolerates up to 100℃
Cycle Time :
8 hours
Control Mode :
Intelligent PLC control, realizing fully automated operation and real-time monitoring
Adsorbent: :
Activated alumina (standard) / molecular sieves (optional)
Description

FU PROMISE Micro Heat Compression Heat Regeneration Adsorption Dryer: Eco-Friendly Compressed Air Purification

1. Product Introduction: Energy-Saving Compressed Air Dryer

FU PROMISE Micro Heat Compression Heat Regeneration Adsorption Dryer is a professional compressed air purification equipment designed for industrial scenarios requiring efficient dewatering. Adopting an advanced compression heat regeneration process, it minimizes compressed air consumption during regeneration while ensuring stable and high-quality drying performance, making it an ideal choice for enterprises pursuing energy conservation and emission reduction.
With a processing flow range of 45~300Nm³/min, the dryer adapts to various industrial compressed air systems, delivering reliable dry air supply for manufacturing lines, production equipment, and pneumatic systems. Its compact industrial design ensures easy installation and integration, suitable for workshops, factories, and industrial parks of different scales.

2. Core Operating Parameters & Performance Highlights

Key Operating Conditions

  • Inlet Air Temperature: Tolerates up to 100℃, compatible with high-temperature outlet air from most air compressors
  • Pressure Range: 0.6~1.0MPa, meets standard industrial compressed air system pressure requirements
  • Pressure Drop: -20~40℃, minimal pressure loss to reduce energy waste of the air system
  • Inlet Oil Content: ≤0.1PPm, effectively protecting adsorbents from oil contamination
  • Regeneration Gas Consumption: Only 2~3%, significantly lower than traditional heatless dryers, greatly reducing compressed air loss
  • Control Mode: Intelligent PLC control, realizing fully automated operation and real-time monitoring

Stable Drying Performance

The dryer achieves a stable pressure dew point through precise control of regeneration temperature and time, ensuring that the compressed air meets the dryness standards of precision processing, medical production, and electronic manufacturing. Its 8-hour regeneration cycle is optimized for long-term stable operation, reducing maintenance frequency and improving production efficiency.

3. Full Model Range & Customization Support

Complete Model Series

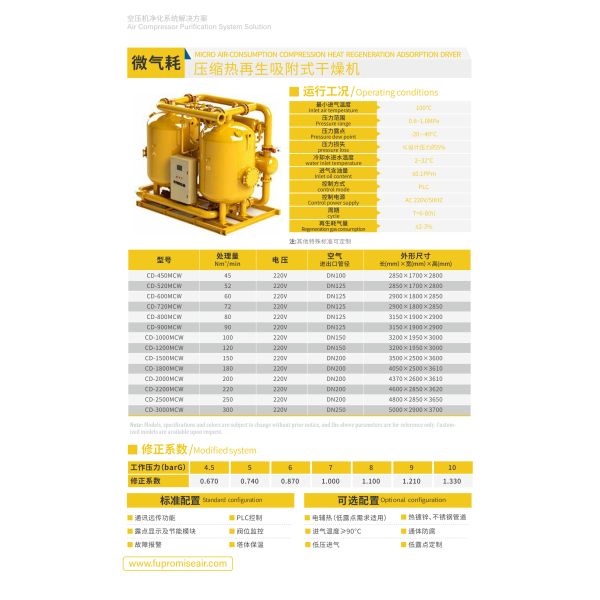

To meet diverse production scale needs, FU PROMISE offers a full range of models (CD-450MCW to CD-3000MCW) with processing flow from 45Nm³/min to 300Nm³/min:
Model Processing Capacity (Nm³/min) Inlet/Outlet Size
CD-450MCW 45 DN100
CD-520MCW 52 DN125
CD-600MCW 60 DN125
CD-720MCW 72 DN125
CD-800MCW 80 DN125
CD-900MCW 90 DN125
CD-1000MCW 100 DN150
CD-1200MCW 120 DN150
CD-1500MCW 150 DN200
CD-1800MCW 180 DN200
CD-2000MCW 200 DN200
CD-2500MCW 250 DN200
CD-3000MCW 300 DN250

Flexible Customization

We support custom design according to actual working conditions, including low dew point customization, adaptation to high inlet temperature (≥90℃), low-pressure inlet adjustment, and other special requirements. Meanwhile, the modified coefficient table helps you select the most suitable model based on actual working pressure.

4. Standard & Optional Configurations

Standard Configuration (Equipped as Standard)

  • Intelligent PLC control system, realizing automated operation and fault self-diagnosis
  • Communication remote transmission function, enabling remote monitoring and management
  • Dew point display and energy-saving module, real-time tracking of air quality and optimization of operation status
  • Fault alarm system, timely reminding of abnormal conditions to avoid production losses
  • Valve position monitoring and tower body insulation, improving equipment stability and heat preservation performance

Optional Configurations for Specialized Scenarios

  • Electric auxiliary heating (suitable for low dew point demand scenarios)
  • Hot-dip galvanized/stainless steel piping, adapting to corrosive working environments
  • Full-body anti-corrosion treatment, extending equipment service life
  • Low-pressure inlet adaptation, meeting special system pressure requirements
  • Low dew point customized solution, meeting ultra-high precision drying demand

5. Applicable Industries & Scenarios

FU PROMISE micro heat compression heat regeneration adsorption dryer is widely used in industrial fields with high requirements for compressed air quality and energy conservation:
  • Automotive & Manufacturing: Provides dry air for spray painting, pneumatic tools, and production lines, avoiding paint defects caused by moisture
  • Food & Pharmaceutical: Meets the strict air quality standards of food processing and pharmaceutical production, ensuring product safety
  • Electronics & Semiconductors: Supplies ultra-dry compressed air for precision electronic component production and assembly
  • Petrochemical & Power Generation: Adapts to high-temperature and high-humidity working conditions, preventing equipment corrosion and pipeline blockage
  • Textile & Printing: Improves production quality by reducing moisture interference in textile printing and dyeing processes

6. Why Choose FU PROMISE?

With professional R&D and manufacturing technology in compressed air purification, FU PROMISE is committed to providing high-quality, energy-saving, and reliable drying solutions for global customers. Our micro heat compression heat regeneration dryers adopt industrial-grade components, with a long service life and stable performance, helping enterprises reduce operational costs and improve production efficiency.
We provide one-stop services including technical consultation, equipment customization, installation guidance, and after-sales maintenance, ensuring that you get a comprehensive compressed air purification system solution that meets your actual needs.
