Zero Air Loss Regenerative Desiccant Air Dryer Energy Saving Solution For Compressed Air Drying
Zero Air Loss Regenerative Desiccant Air Dryer Energy Saving Solution For Compressed Air Drying
Specifications
Brand Name :
FU PRO
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
3000-150000
Payment Terms :
Standard In-Stock Items: 100% payment in advance. 2. Non-standard / Custom-Made Models: 50% deposit in advance,the remaining 50% before shipment.
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
1. Standard In-Stock Models: Shipping will be arranged within 3–7 working days upon receipt of deposit and order confirmation. 2. Non-standard / Custom-Made Models: Shipping will be arranged within 20–30 working days upon receipt of deposit and order confi
Packaging Details :
Bubble Wrap / Stretch Wrap
Processing Capacity :
45(Nm³/min)(CD-450ZCW)
Working pressure: :
0.6–1.6 MPa
Intake air temperature: :
≤45°C
Pressure dew point: :
-20 to -40°C (atmospheric pressure)
Cycle Time :
8 hours
Switching Cycle: :
5–10 minutes
Adsorbent: :
Activated alumina (standard) / molecular sieves (optional)
Description

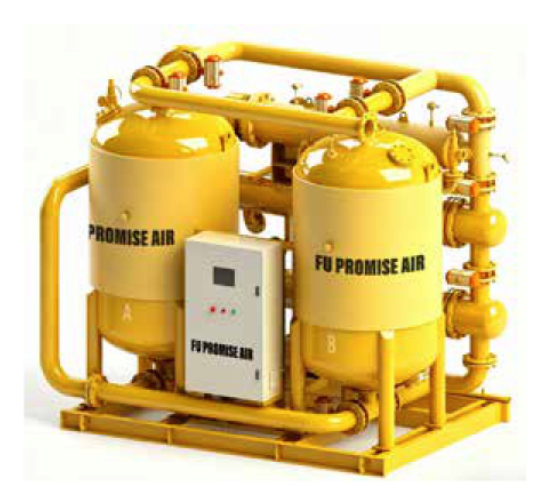

Zero Air-Consumption Regeneration Adsorption Dryer:​ A High-Efficiency Energy-Saving Solution for Compressed Air Drying

1. Product Overview: Zero Air Loss, Maximum Efficiency

FU PROMISE zero air-consumption compression heat regeneration adsorption dryer is a game-changing industrial drying solution engineered for high-demand compressed air systems. Unlike traditional dryers that waste 2-15% of compressed air for regeneration, this model achieves 0% regeneration gas consumption by fully utilizing the waste heat from the air compressor, delivering exceptional energy savings and operational cost reduction.
Designed for heavy-duty industrial applications, the dryer delivers a stable pressure dew point of -20℃ to -40℃, ensuring ultra-dry compressed air that meets the strictest quality standards. With a processing capacity ranging from 45Nm³/min to 300Nm³/min, it is perfectly suited for large-scale manufacturing, petrochemical, power generation, and other industries with high-volume compressed air demands.

2. Key Operating Parameters & Technical Advantages

Core Operating Conditions

  • Inlet Air Temperature: Up to 100℃, compatible with high-temperature compressor outlets
  • Pressure Range: 0.6-1.0MPa, adaptable to most industrial compressed air systems
  • Pressure Dew Point: -20℃ to -40℃, consistent deep drying performance
  • Regeneration Gas Consumption: 0%, eliminating air loss and energy waste
  • Control Mode: Intelligent PLC control, fully automated operation
  • Cycle Time: 8 hours, optimized for stable and efficient operation

Unmatched Technical Benefits

  • Zero Air Loss: Recycles compressor waste heat for regeneration, cutting operational costs by up to 15% compared to conventional dryers
  • High-Temperature Compatibility: Handles inlet air up to 100℃, eliminating the need for pre-cooling systems
  • Low Pressure Loss: Pressure drop ≤5% of design pressure, minimizing energy waste in the air system
  • Fully Automated Operation: PLC control with remote monitoring, fault alarm, and energy-saving modules for unattended operation

3. Complete Model Range & Customization Options

FU PROMISE offers a full line of zero air-consumption dryers to match any production scale, with models covering 45Nm³/min to 300Nm³/min:

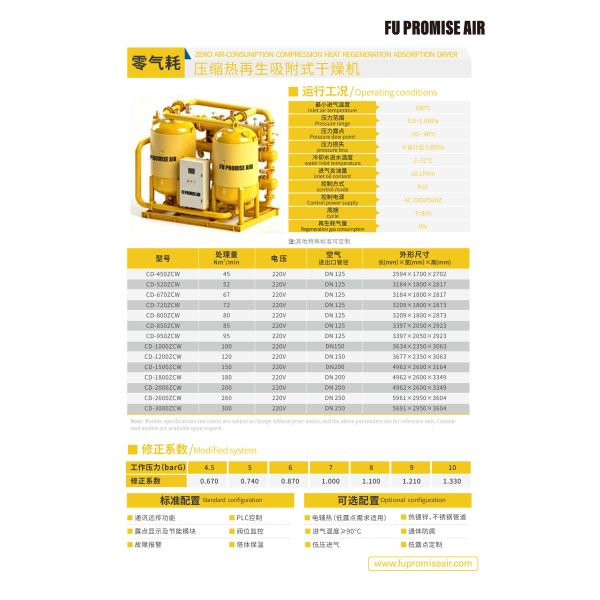

Model Processing Capacity (Nm³/min) Inlet/Outlet Size
CD-450ZCW 45 DN 125
CD-520ZCW 52 DN 125
CD-670ZCW 67 DN 125
CD-720ZCW 72 DN 125
CD-800ZCW 80 DN 125
CD-850ZCW 85 DN 125
CD-950ZCW 95 DN 125
CD-1000ZCW 100 DN 150
CD-1200ZCW 120 DN 150
CD-1500ZCW 150 DN 200
CD-1800ZCW 180 DN 200
CD-2000ZCW 200 DN 200
CD-2600ZCW 260 DN 250
CD-3000ZCW 300 DN 250
All models support custom specifications to meet unique application requirements, including low dew point customization, full-body corrosion protection, and low-pressure inlet adaptation.

4. Standard & Optional Configurations

Standard Configuration (Included in All Models)

  • Intelligent PLC control system
  • Remote communication & monitoring function
  • Dew point display & energy-saving module
  • Fault alarm system
  • Valve position monitoring
  • Tower body insulation

Optional Upgrades for Specialized Needs

  • Electric auxiliary heating for ultra-low dew point applications
  • Hot-dip galvanized/stainless steel piping for corrosive environments
  • Full-body corrosion protection for harsh working conditions
  • Low-pressure inlet adaptation
  • Custom low dew point solutions

5. Ideal Industrial Applications

FU PROMISE zero air-consumption adsorption dryers are the top choice for industries where energy efficiency and reliable drying are critical:
  • Large-scale manufacturing & petrochemical plants: Reduce energy costs while ensuring continuous dry air supply
  • Power generation & thermal power systems: Prevent pipeline freezing and equipment corrosion
  • Textile & food processing industries: Meet strict air quality standards for production
  • Mining & offshore platforms: Adapt to harsh working environments with zero air loss
  • Automotive & heavy machinery manufacturing: Ensure high-quality spray painting and pneumatic tool operation

6. Why Choose FU PROMISE?

With over a decade of experience in compressed air treatment, FU PROMISE AIR is committed to delivering energy-efficient, reliable, and cost-effective drying solutions. Our zero air-consumption dryers combine cutting-edge heat recovery technology with robust industrial design, helping global customers reduce operational costs, improve production efficiency, and achieve sustainable manufacturing goals.
All products come with comprehensive after-sales support, technical guidance, and a 10-year overall design life, ensuring long-term stable performance for your business.
