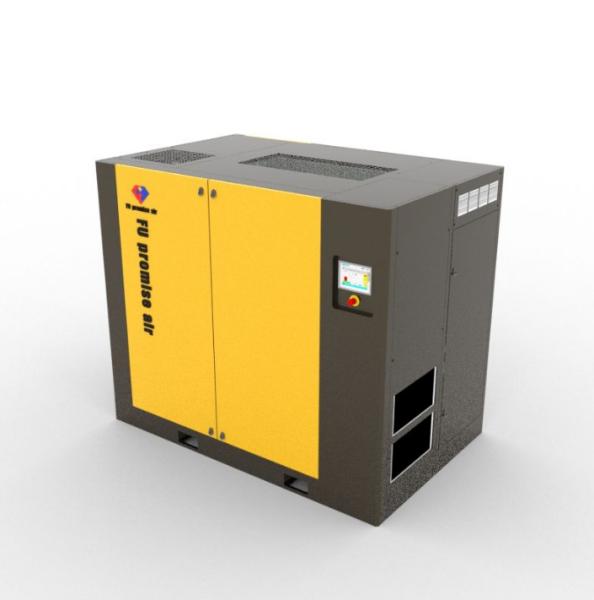

FLi-75AFC Single Stage Screw Compressor | Variable Airflow Range & Multi Selectable Working Pressure
FLi-75AFC Single Stage Screw Compressor | Variable Airflow Range & Multi Selectable Working Pressure
Specifications
Brand Name :
FU PRO
Model Number :
FLi-75AFC
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 units
Price :
6000-300000
Payment Terms :
1. Standard In-stock Items: 100% payment in advance 2. Non-standard / Non-in-stock Models: 50% deposit in advance,50% balance before shipment
Supply Ability :
With stable bulk supply capacity, we accept long-term orders
Delivery Time :
1. Standard In-stock Models: Shipment within 3-7 working days upon receipt of advance payment and order confirmation 2. Non-standard / Non-in-stock Models: Shipment within 20-30 working days upon receipt of advance payment and order confirmation
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FLi-75AFC VFD Single Stage Screw Compressor
Variable Flow & Pressure :
2.72~15.7m³/min@7.5/8.5Bar(g),2.40~11.93m³/min@10/12.5Bar(g),2.01~9.16m³/min@13/15.5Bar(g)
Outlet :
G2'' BSPT
Overall Dimension :
2200×1400×1850 mm
Noise Level :
75dB(A)
Net Weight :
1546kg
Description
FLi-75AFC Single Stage Screw Air Compressor | Variable Flow & Multi-Pressure Option For Large Industrial Plant

Product Introduction

FLi-75AFC variable-frequency single stage screw air compressor has three working specs:2.72~15.7m³/min@7.5/8.5Bar(g),2.40~11.93m³/min@10/12.5Bar(g),2.01~9.16m³/min@13/15.5Bar(g). Equipped with G2'' BSPT exhaust port, overall dimension 2200×1400×1850mm, net weight 1546kg and running noise 75dB(A). Full-load variable frequency aging tested before delivery, widely used for large machining, full-plant coating, mass rubber & plastic production, heavy metal forging and multi automatic production line centralized air supply for bulk export.

Core Selling Paragraph

Wide variable adjustable airflow across full working range plus multiple optional working pressures enable automatic output adjustment following actual workshop air load, while standard G2'' BSPT threaded outlet and 75dB low-noise heavy enclosed cabinet deliver great piping compatibility and effective energy saving to meet international large factory noise & energy conservation regulations.

Technical Parameter Table





Item Specification
Model FLi-75AFC VFD Single Stage Screw Compressor
Variable Flow & Pressure 2.72~15.7m³/min@7.5/8.5Bar(g),2.40~11.93m³/min@10/12.5Bar(g),2.01~9.16m³/min@13/15.5Bar(g)
Outlet G2'' BSPT Thread
Overall Dimension 2200×1400×1850 mm
Noise Level 75dB(A)
Net Weight 1546kg
Application Large machinery processing, full factory spray coating, mass rubber & plastic manufacturing, heavy metal forging, multi-line automatic equipment air supply

English FAQ

Q1: Can this VFD model run 24h full-load continuously?

A: It passes full-load endurance aging test, variable frequency system adapts load automatically for non-stop round-the-clock production.

Q2: Is custom flange adapter available for G2'' outlet conversion?

A: Optional reducing flange is available without internal unit modification or performance degradation.

Q3: What’s the required ambient condition for installation?

A: Ambient temperature 5~42℃, dry ventilated low-dust space, avoid outdoor rain and direct sunlight exposure.

Q4: What are first and regular maintenance service intervals?

A: First maintenance after 500 running hours, routine service every 2000 working hours afterwards.

Q5: Can maintenance kits and screw lubricant ship together with compressor?

A: Complete filter sets and special lubricating oil can be loaded in same export container with full customs documentation.
