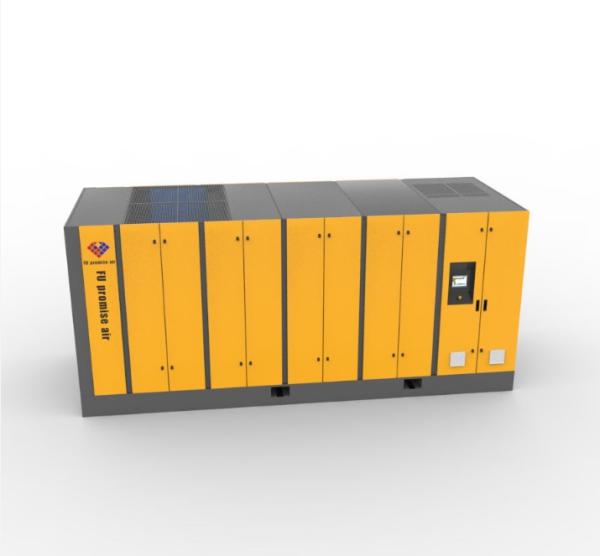

6~10KV Industrial Compressor | W/C Water Cooling & Standard DN125 BSPT Outlet
6~10KV Industrial Compressor | W/C Water Cooling & Standard DN125 BSPT Outlet
Specifications
Brand Name :
FU PRO
Model Number :
FR
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
220000-700000
Payment Terms :
50% T/T deposit,50% T/T balance before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard units: 30-60 working days after deposit received；Custom/non-standard units: 30-80 working days after deposit received
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FR-355W
Flow at 7bar(g) :
57.7 m³/min
Flow at 8.5bar(g) :
53.3 m³/min
Flow at 10bar(g) :
48.1 m³/min
Cooling Type :
W/C
Rated Voltage :
6~10KV
Overall Dimension :
4800×2300×2400 mm
Outlet Connection :
BSPT DN125
Noise Level :
79 dBA
Net Weight :
11030 kg
Description
FR-355W Oil Free Screw Compressor | 57.7m³/min@7bar (g),53.3m³/min@8.5bar (g),48.1m³/min@10bar (g)

Product Introduction

FR-355W oil free screw air compressor features fixed airflow of 57.7m³/min at7bar(g),53.3m³/min at8.5bar(g),48.1m³/min at10bar(g). It is equipped with fixed W/C water cooling, rated voltage 6~10KV, overall dimension 4800×2300×2400mm, BSPT DN125 exhaust port, operating noise 79dB(A) and net weight 11030kg. All finished units pass air tightness and full-load aging test before shipment.

Core Selling Paragraph

Three fixed rated flows match corresponding working pressures to generate oil-free clean compressed air and maintain stable output; fixed W/C water cooling plus DN125 standard BSPT outlet fits 6~10KV regular industrial power, 79dB quiet cabinet and robust 11030kg frame guarantee stable round-the-clock operation.

English Specification Table





Item Specification
Model FR-355W
Flow at 7bar(g) 57.7 m³/min
Flow at 8.5bar(g) 53.3 m³/min
Flow at 10bar(g) 48.1 m³/min
Cooling Type W/C Water Cooling
Rated Voltage 6~10KV
Overall Dimension 4800×2300×2400 mm
Outlet Connection BSPT DN125
Noise Level 79 dB(A)
Net Weight 11030 kg

English FAQ

Q1: Does this compressor produce oil-free compressed air?

A: Oil-free rotor structure prevents lubricant from mixing into compressed air for zero-oil gas output.

Q2: What cooling system is configured?

A: It is configured with fixed W/C water cooling system.

Q3: Is DN125 BSPT compatible with global industrial piping?

A: Standard DN125 BSPT thread fits mainstream industrial pipelines directly.

Q4: Is 6~10KV applicable for overseas factory power supply?

A: Standard 6~10KV voltage matches most international industrial power grids.

Q5: Can maintenance spare parts export together with machine?

A: Complete maintenance kits can be packed and shipped with compressor for export.
