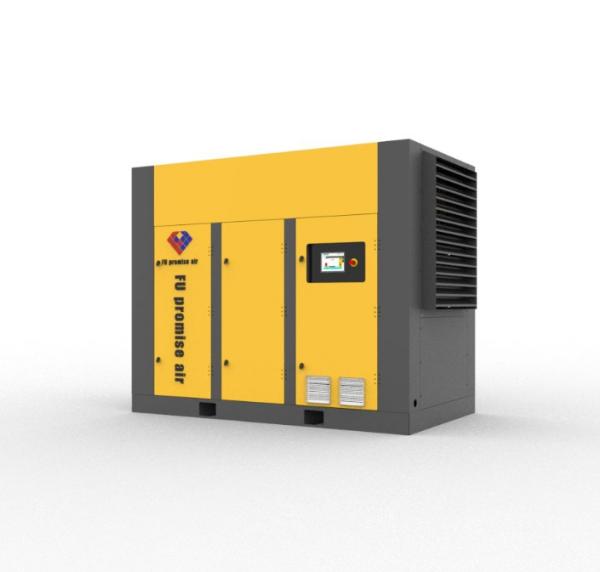

Heavy-Duty Low Noise Oil Free Air Compressor | Zero-Oil Clean Air & 79dB Noise 2550kg Solid Frame
Heavy-Duty Low Noise Oil Free Air Compressor | Zero-Oil Clean Air & 79dB Noise 2550kg Solid Frame
Specifications
Brand Name :
FU PRO
Model Number :
FR-55
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
220000-700000
Payment Terms :
50% T/T deposit,50% T/T balance before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard units: 30-60 working days after deposit received；Custom/non-standard units: 30-80 working days after deposit received
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FR-55
Capacity & Pressure :
9.6m³/min@7bar(g),8.8m³/min@8.5bar(g),7.8m³/min@10bar(g)
Cooling Type :
A/W
Rated Voltage :
380-415V
Overall Size :
2700×1450×2125 mm
Outlet :
BSPT Rp2
Noise Level :
79dBA
Net Weight :
2550kg
Description
FR-55 Oil Free Screw Air Compressor | Triple Flow 9.6/8.8/7.8m³/min & 7/8.5/10bar Multi Working Pressure

Product Introduction

FR-55 oil free screw air compressor has three fixed flow rates:9.6m³/min@7bar(g),8.8m³/min@8.5bar(g),7.8m³/min@10bar(g), equipped with A/W optional air & water cooling, rated voltage 380-415V, overall dimension 2700×1450×2125mm, BSPT Rp2 exhaust port, 79dB(A) working noise and 2550kg net weight. Every unit passes air tightness and full-load aging inspection before delivery, widely used for pharmaceutical, food processing, semiconductor and precision optics industries requiring ultra-clean oil-free compressed air.

Core Selling Paragraph

Oil-free screw rotor produces zero-contamination compressed air with three fixed flow and optional 7/8.5/10bar pressure to meet strict Class 0 zero-oil air requirement of food & pharmaceutical manufacturing; A/W dual cooling plus standard Rp2 BSPT outlet adapts to diverse workshop installation conditions and connects global standard British piping directly, 79dB low-noise cabinet and heavy 2550kg base realize stable round-the-clock continuous operation.

Technical Parameter Table





Item Specification
Model FR-55
Capacity & Pressure 9.6m³/min@7bar(g),8.8m³/min@8.5bar(g),7.8m³/min@10bar(g)
Cooling Type A/W
Rated Voltage 380-415V
Overall Size 2700×1450×2125 mm
Outlet BSPT Rp2
Noise Level 79dBA
Net Weight 2550kg
Application Pharmacy, Food Deep Processing, Semiconductor, Precision Optics

English FAQ

Q1: Does it produce ISO8573 Class 0 oil-free compressed air?

A: Oil-free rotor without lubricant inside compression chamber, outlet air complies with ISO8573-1 Class0 standard.

Q2: Can users choose air or water cooling on site?

A: Original A/W dual cooling design supports free selection of air or water cooling installation.

Q3: Is BSPT Rp2 compatible with standard British industrial pipeline?

A: Standard Rp2 BSPT thread matches mainstream international piping without extra reducing connector.

Q4: Is 380-415V suitable for worldwide factory power supply?

A: 380~415V universal industrial voltage works for most global factories without extra transformer.

Q5: Are maintenance spare parts available for combined export shipment?

A: Complete service kits packed together with machine for sea shipment with full customs clearance documents.
