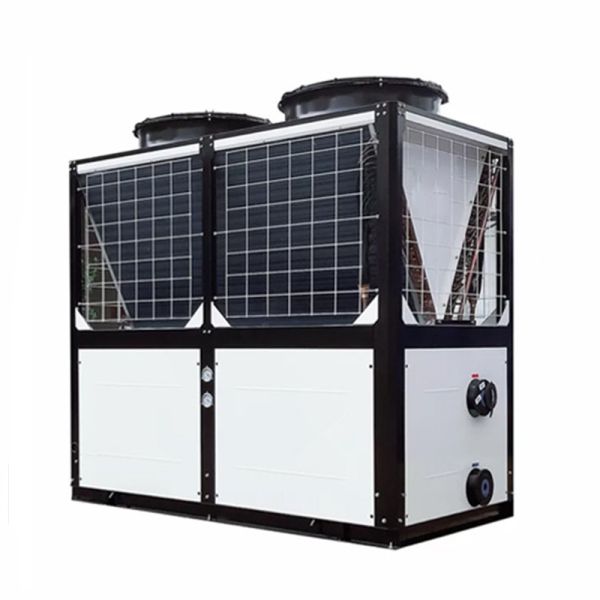

High Temperature Heat Pump Industrial Hot Water 90°C–150°C
High Temperature Heat Pump Industrial Hot Water 90°C–150°C
Specifications
Brand Name :
Leomon
Model Number :
LM709
Certification :
CE ISO CCC ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
1-30 working days
Packaging Details :
standard export package, or as per customer request
High Cop :
4.18/4.19
Compressor :
DC Inverter Compressor
Noise :
50dB(A) max
Function :
Heating and Cooling
Description

Our high-temperature heat pumps provide efficient industrial heating up to 90-150°C, offering a low-carbon, energy-saving alternative to traditional boilers. They are ideal for industrial hot water, process heating, food processing, chemical plants, and district heating systems.

Features:
1. EVI scroll compressor with high-efficiency design for stable operation in low-temperature environments.
2. High-efficiency condenser tube/shell and tube heat exchanger.
3. Commercial hot water heat pump provides hot water up to 90°C–120°C.
4. Uses a well-known brand electronic expansion valve for precise control and high heating efficiency at different ambient temperatures.
5. Intelligent control system with a simple and clear LCD display.

Advantages:
1. Engineering Efficiency
Commercial heat pumps are designed and manufactured for maximum efficiency.


2. Wide Operating Range
Industry-leading operating range for high-temperature water, chilled water, and simultaneous heating and cooling.


3. Sustainability
Significant reduction in carbon emissions and environmental impact through electrification and the use of low global warming potential refrigerants.

Specifications

Model CN LM-LM40U

Power Supply		 380V/3N~/50Hz 380V/3N~/50Hz
Condensing Side Operating Temp.Range(℃) 90~130 90~130
Evaporating Side Operating Temp.Range(℃) 50~70 10~43
Ingress Protection Rating IPX4 IPX4
Electric Shock Protection Class l Class l
Rated Heating Capacity(kW)
Evaporator Inlet/outlet 65.0
Evaporator side Inlet
/Oulet Ambient Temp
25℃/20℃

User side water
outlet temp.
115℃		 65.0
Rated Input Power(kW) Water Temp.
57℃/52℃		 21.5 30.2
Rated Operating Current(A)
User side water 38.0		 50.9
Hot Water Volume(L/h) outlet temp.
115℃		 930.0 930.0
Rated Input Power(kW) 29.1 53.3
Operating Current(A) 58.0 88.2
Water Pressure Drop(kPa) 50.0 50.0
Rated Water Flow Rate(m³/h) Hot side 12.0/Cold side 7.5 12.0
Water Inlet/Outlet Size 4-G2"(Internal Thread) 2-G2.5"(Internal Thread)
Refrigerant R245fa R410A+R245fa
Number of Compressors 1 2
Sound Pressure Level@1m (dB(A)) ≤65 ≤65
Net Dimension(mm) 1505×1155×1100 2100×1050×2010
Net Weight(kg) 500 700

Get more help
If you are interested in our heat pumps, please contact us. Our heat pump experts will provide you with the best solution.
