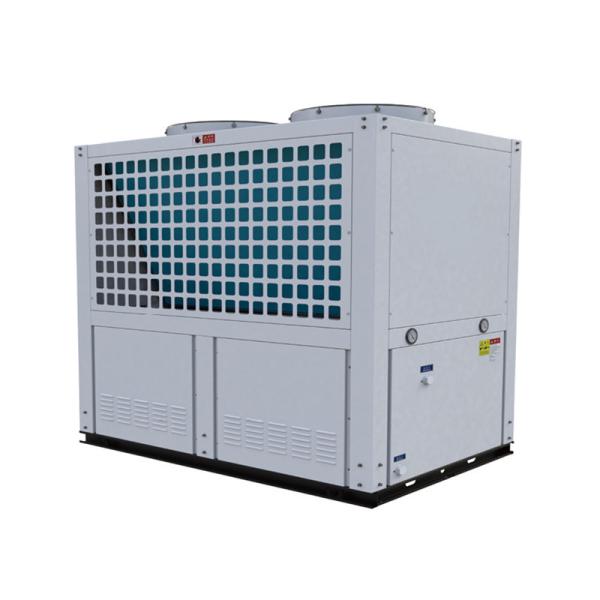

Air Source Heat Pump 70 Degrees
Air Source Heat Pump 70 Degrees
Specifications
Brand Name :
Leomon
Model Number :
LM706
Certification :
CE ISO CCC ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
1-30 working days
Packaging Details :
standard export package, or as per customer request
High Cop :
4.18/4.19
Compressor :
DC Inverter Compressor
Noise :
50dB(A) max
Function :
Heating and Cooling
Description

Our LM series high-temperature heat pumps offer a maximum water temperature of 70°C, covering most boiler applications and successfully replacing coal, oil, gas, and electric boilers.

The LM series high-temperature heat pumps can also meet the needs of specialized industries (such as food processing, electroforging, spray painting, packaging and printing, chemical engineering, and slaughterhouses) requiring high-temperature hot water above 55°C.

Applications

Hotels, villas, private residences, apartments, supermarkets, condominiums, laundries, hair salons, etc.

Residential

Connected to a radiator for heating private residences in winter.

Industrial

High-temperature hot water for slaughterhouses, printing presses, chemical engineering, and other facilities.

Features

1. High-efficiency, fully hermetic scroll compressor.

2. R134A or R417A refrigerant.

3. Equipped with a large-area blue-fin aluminum heat exchanger.

4. Reverse cycle valve.

5. Compact structure and optimized control design. 6. Equipped with a high-efficiency tank-type heat exchanger on the water side.

7. Automatic antifreeze and defrost functions.

8. Comprehensive protection features, including high pressure, low pressure, overheat, overload, antifreeze, phase sequence, and exhaust temperature.

9. Each unit undergoes routine and operational testing before packaging at the factory.

Specifications

Model LM-10 LM-12 LM-20
Heating capacity kW 26.6 32 55
Input power kW 8.5 10.3 17.5
Input current A 15.2 17.8 30.4
Max running current A 24 26 48
Power source 380V/3N/50Hz 380V/3N/50Hz 380V/3N/50Hz
Nosie level dB(A) 63 64 68
Unit size mm 800x1080x1050 800x1080x1050 1700x900x1250
Unit quality kg 245 280 450
Working temp range -15℃－43℃ -15℃－43℃ -15℃－43℃
Refrigerant R134a/R417A R134a/R417A R134a/R417A
Refrigerant charge qty kg 2.3*2 2.8*2 4.5*2
Compressor qty 2 2 2
Water flow 5.72 6.88 11.39
Conncetion in / out 32 32 50

* Test condition: Air source side DB/WB is 20℃/15℃, inlet water temp 20℃, outlet water temp 75℃.
* See full parameters please view the brochure.

Get More Help

If you need a high-temperature heat pump, please contact us. Our heat pump experts will provide the best advice.
