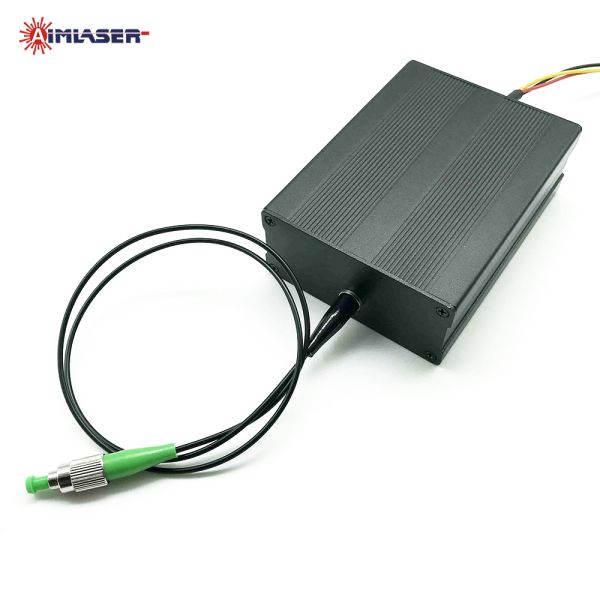

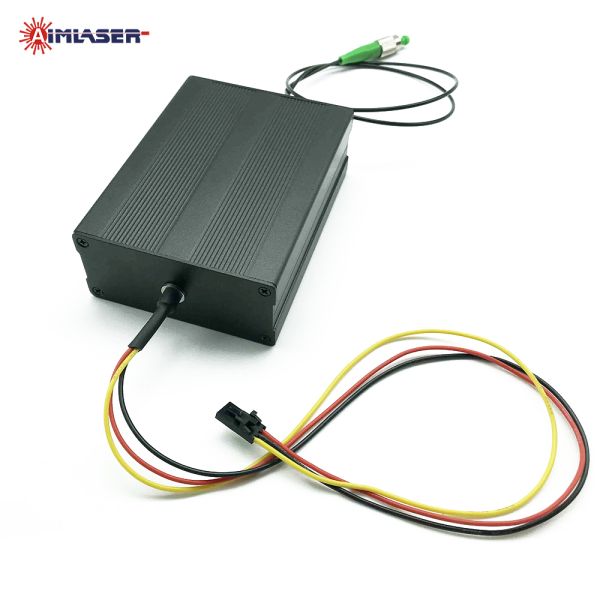

660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver
660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver
660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver
660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver
660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver
660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver
660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver
660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver
Specifications
Brand Name :
AIMLASER
Model Number :
AM660SF50FC
Certification :
FDA, IEC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union,PayPal
Supply Ability :
1000pcs/month
Delivery Time :
10-20 days
Packaging Details :
Anti-static bag, Carton
Product name :
Fiber Coupled Laser
Wavelength :
660nm
Output Power :
50.0mW
Laser Mode :
TTL
Input Voltage :
5V DC
Connector :
FC/APC
Fiber Core Diameter :
4um
Life Span :
10,000 Hours
Description

660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver


Product Description


AIMLASER’s 660nm fiber-coupled laser diode module delivers a stable 50mW output through a 4µm core single mode fiber, making it ideal for precision applications in biomedical, analytical, and industrial fields. The module features a 1 meter fiber length with an FC/APC connector for reliable optical interfacing. With a numerical aperture (NA) of 0.13, it ensures efficient beam transmission and minimal signal loss.


AIMLASER also provides customization options for laser with fiber pigtail, including fiber type, connector, and driver integration, with optional PD control for enhanced power stability. This compact and reliable laser module is suitable for use in laser instrumentation, medical diagnostics, genome analysis, and other high-precision applications. Contact us with your specifications for tailored solutions.

660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver660 nm 50 mW Single-Mode Fiber-Coupled Laser Diode Module with TTL Modulation Driver

Specifications

ITEMS SPECIFICATIONS
Model Number Fiber Coupled Laser Diode Module
Wavelength 660nm
Output Power 50mW
Laser Mode TTL
Spectral Width <2.0nm
Wavelength Shift 0.3nm
Operating Current <110mA
Operating Voltage 5V DC
CDRH Class Class IIIb
Circuit control Auto Constant Current(ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Fiber Core Diameter 4um Single Mode
Fiber Length 1m
Numerical Aperture 0.13 N.A.
Connector FC/APC
Life Time 10,000Hrs

Features

1. Compact size and low power consumption.

2. High reliability and stability, long lifetime.

3. Using special LD drivers and PD feedback.

4. Using original Laser Diodes from Arima, Osram, Nichia, and branded chips.

5. Conform to ROHS, FDA, IEC, and SGS standards.

6. Provide a one-year warranty and customized solutions.

Applications

The 660nm 50mW 4um Single Mode Coaxial Fiber Pigtailed Coupled Laser Diode Modules are used in:


● Biomedical analysis

● Laser alignment

● DNA sequencing

● Optical sensing

● Precision measurement

● Scientific research

Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS, etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an, China

Why Choose Us

A. Over 20 years of laser experience.

B. Large-scale facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Produced in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.
