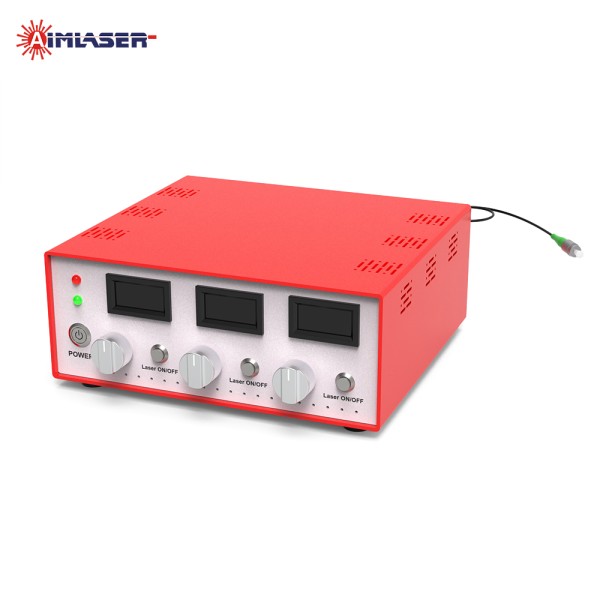

RGB Fiber Coupled Laser Diode Module 450nm 520nm 638nm 20W Power Adjustable with TTL Analog Modulation and Computer Control

Product Description

The AIMLASER RGB fiber-coupled laser system integrates 450 nm, 520 nm, and 638 nm laser sources into a single optical fiber, enabling efficient beam combining and stable high-brightness full-color output. Each wavelength channel is independently controllable, supporting flexible adjustment for different application needs. The system supports both PC control and Bluetooth control, with TTL and analog modulation for dynamic operation. It delivers up to 20 W continuous output power and can be customized in fiber core size, fiber length, and connector type. Designed for long-term operation, it offers low noise, high stability, and optional air or TEC cooling.

Features

• RGB wavelengths: 450 nm, 520 nm, 638 nm
• High-brightness, high-purity color output
• Independent control of each wavelength
• PC and Bluetooth control supported
• TTL and analog modulation available
• Up to 20 W continuous output power
• Customizable fiber core, length, and connectors
• Low RMS noise and high power stability
• Optional air cooling or TEC cooling

Specifications

Applications

• Laser display and RGB projection systems
• Stage lighting and entertainment lighting systems
• Architectural lighting and immersive projection
• Biomedical imaging and fluorescence excitation
• Confocal microscopy and optical experiments
• Spectroscopy and laboratory research
• Machine vision and optical alignment systems
• Educational and research laboratories

Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China

Why Choose Us

A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.

FAQ

Q1: Do you support customized solutions?

A: Yes, we can customize your required wavelength, output power, fiber core, working voltage and connectors etc.

Q2: Is TEC cooling available?

A: Yes, both TEC cooling and fan cooling are available.

Q3: Hong long is the warranty?

A: One year.
