Custom DC Canopen Servo Motor Inverter Driver 750W
Custom DC Canopen Servo Motor Inverter Driver 750W
Custom DC Canopen Servo Motor Inverter Driver 750W
Custom DC Canopen Servo Motor Inverter Driver 750W
Specifications
Brand Name :
HKT-Robot
Model Number :
FL6D2Z1-A00+TD8075-SCABK5
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Rated Current :
20A
Number of Pole Pairs :
5 Poles
Flange Size :
80*80mm
Rated Torque :
2.38Nm
Rated Speed :
3000rpm
Communication Method :
Modbus CANopen
Power :
750W
Supply Voltage :
DC 48V
Description

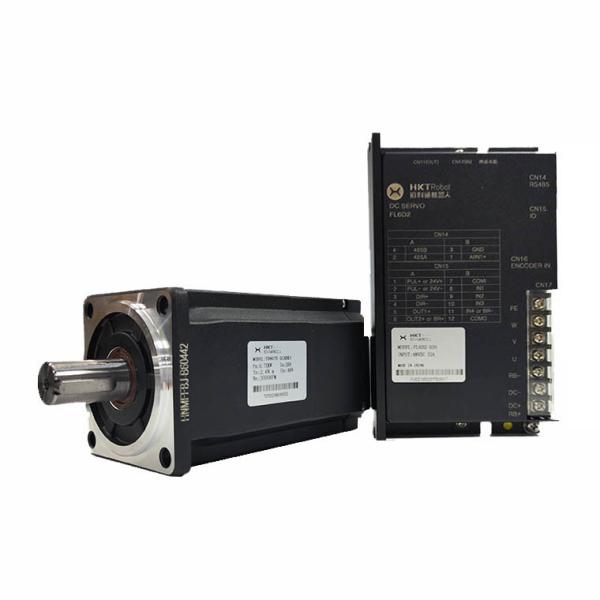

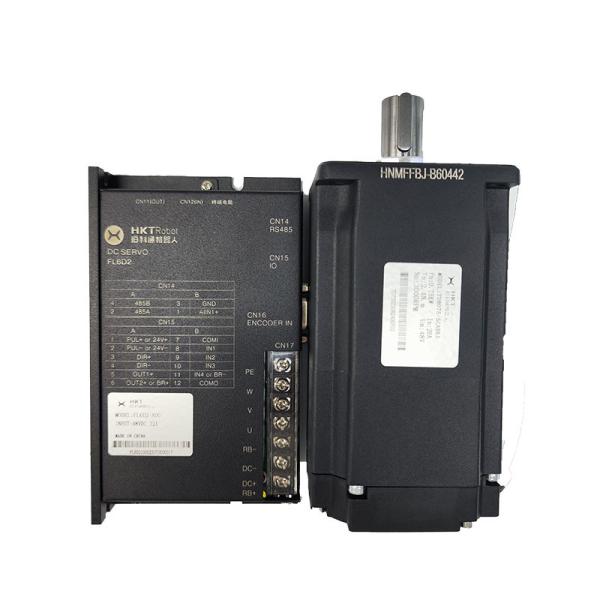

750W DC Servo Motor and Servo Driver Kit 2.38Nm with Absolute Value Encoder

Product Description:

This kit includes servo motors, drives and any other necessary accessories for installation and operation. All the components are designed to work together to provide reliable and controlled motion in a variety of applications.

AGV servo motors are a well-suited choice for AGV robots because they embody precision, responsiveness, adaptability, and the essential attributes needed for effective navigation, maneuvering, and task execution in dynamic and often intricate environments.

AGV servo drives provide precise and responsive motion control for effective navigation and task execution in complex environments, especially for AGV robots. Their closed-loop control, energy saving performance, safety features and compatibility are key to ensuring the successful operation of AGV systems.

Servo Driver Specification:

Part Number:FL6D2Z1-A00

Communication Method:Modbus CANopen

Encoder:Absolute and incremental encoder

Supply Voltage:DC 24-60V

Rated power:1000W

Rated Current:32A

Peak Current:64A

Support pules control

Servo Motor Specification:

Part Number:TD8075-SCABK5

Encoder:Absolute Value

Brake:With Brake

Power:750W

Flange Size:80*80mm

Number of Pole Pairs:5 poles

Rated Torque:2.38Nm

Rated Current:20A

Rated Speed:3000rpm
