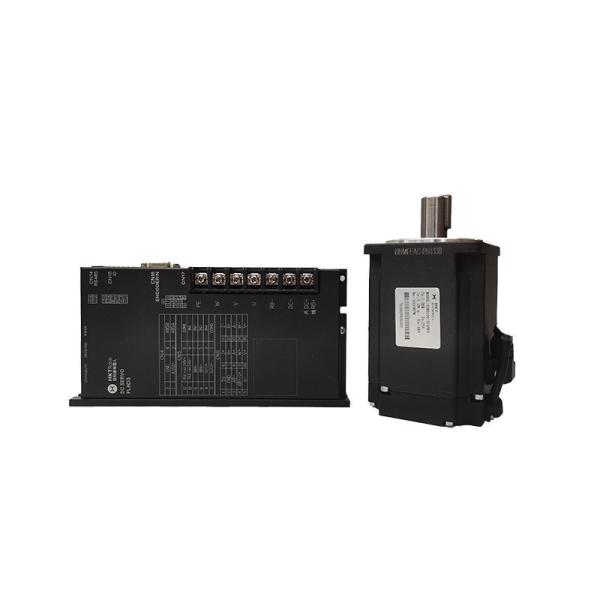

1000W Brushed DC Servo Drive And Motor Kit 3.20Nm
1000W Brushed DC Servo Drive And Motor Kit 3.20Nm
1000W Brushed DC Servo Drive And Motor Kit 3.20Nm
1000W Brushed DC Servo Drive And Motor Kit 3.20Nm
Specifications
Brand Name :
HKT-Robot
Model Number :
FL6D2Z1-A00+TD80100-SCBNK5
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Flange Size :
80*80mm
Communication Method :
Modbus CANopen
Rated Speed :
3000rpm
Supply Voltage :
DC 48V
Rated Current :
25A
Power :
1000W
Number of Pole Pairs :
5 Poles
Rated Torque :
3.20Nm
Description

1000W DC Servo Motor and Servo Driver Kit 3000rpm 3.20Nm without Brake

Product Description:

Our comprehensive servo motor drive kit comes with all the essential accessories and components needed to set up and operate successfully. It includes both a low-voltage servo motor and its corresponding low-voltage servo driver.

AGV servo motors are the ideal choice for AGV robots because they give the precision, responsiveness, and adaptability needed for accurate navigation, maneuvering, and task completion in ever-changing environments. Their exceptional motion control capabilities are essential for the successful functioning of AGV systems.

AGV servo drivers also make great outcomes for AGV robots, providing the accurate and dynamic motion control needed for driving and tasks in complex environments. Their features such as closed-loop control, energy efficiency, safety, and compatibility make them the perfect choice for AGV systems.

Servo Driver Specification:

Part Number:FL6D2Z1-A00

Communication Method:Modbus CANopen

Encoder:Absolute and incremental encoder

Supply Voltage:DC 24-60V

Rated power:1000W

Rated Current:32A

Peak Current:64A

Support pules control

Servo Motor Specification:

Part Number:TD80100-SCBNK5

Encoder:Incremental

Brake:No Brake

Power:1000W

Flange Size:80*80mm

Number of Pole Pairs:5 poles

Rated Torque:3.20Nm

Rated Current:25A

Rated Speed:3000rpm
