Specifications
warranty :
1 Year
customized support :
OEM
Brand Name :
OSPUMP
Model Number :
T-6
Place of Origin :
Zhejiang, China
application :
Water Treatment Solutions
power source :
Diesel Engine
pressure :
High Pressure
structure :
Self-priming centrifugal pump
voltage :
Other
Theory :
Centrifugal Pump
Standard or Nonstandard :
Standard
Material :
Cast iron
Max Flow :
325m3/h
Max Head :
32m
Max.Solids :
76.2mm(3"')
Inlet flange/Outlet flange :
150mm(6'') /150mm(6'')
Self-priming height :
7.6m
Overall size ( mm) W*D*H :
2600mm*1750mm*2270mm
Gross weight :
1300KG
Description
Products Description

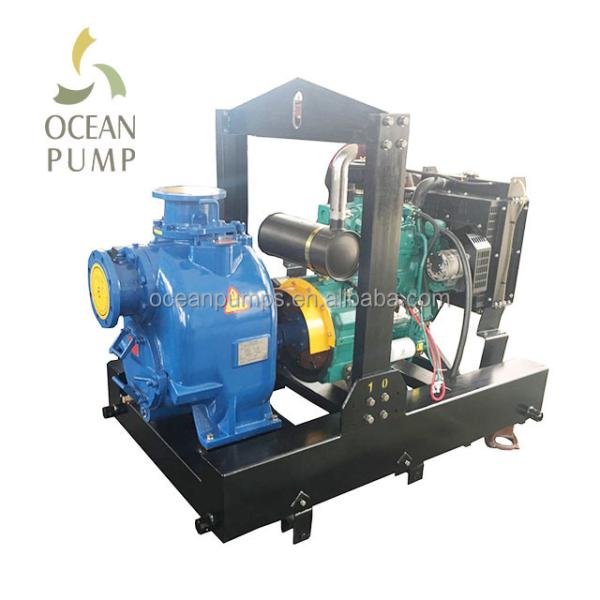

Made in China Superior Quality Self-Priming Pump Sirrigation Used Diesel Engine Water Pump

Product Application

T series self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units. The utility model is suitable for outdoor use. The utility model has the advantages of high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.

TECHNICAL SPECIFICATION OF T-6 MOVABLE DRAINAGE UNIT




T-6 PUMP
Max Flow
325m3/h
Max Head
32m
Max Solide
76.2mm (3'')
Self-priming
7.6m
Impeller dia
314.32mm
R.P.M
1500rpm


Material
Pump casing
Cast iron HT250
Impeller
Nodular cast iron
Shaft
40CR




Engine
Model
D226B-3D
No. of cylinders
3
Cooling method
water-cooling
Speed control type
Mechanical speed regulation
Start-up mode
DC start, and equipped with silicon rectifier charging generator
Total engine displacement
3.12L


Trailer
Tyre
2pcs
Support foot
4pcs
Tank capacity
80L
load
2000KG
Made in China Superior Quality Self-Priming Pump Sirrigation Used Diesel Engine Water Pump

Product Application

T series self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units. The utility model is suitable for outdoor use. The utility model has the advantages of high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.

Main Features

1. Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters
2. Sewage capacity is large, the maximum amount of impurities through 76.2mm
3. Strong self-priming capacity, up to 7.6 meters
4. Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.
5. When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble. Ensure safe operation of equipment.

Detailed Images
Made in China Superior Quality Self-Priming Pump Sirrigation Used Diesel Engine Water Pump
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
Made in China Superior Quality Self-Priming Pump Sirrigation Used Diesel Engine Water Pump

Machine Parts

Name: Diesel engine

Brand: deutz

Original: China

Inline, 3 cylinder, four stroke, self suction, direct injection fuel system

Main Features

Name: Control cabinet
Brand: OCEAN
Original: China
Control the starting and stopping of diesel engine, check the water temperature, oil temperature, oil pressure, speed of diesel engine, etc.. Multi language: English, Spanish, Chinese, Russian, Arabic, polish, etc.

Made in China Superior Quality Self-Priming Pump Sirrigation Used Diesel Engine Water Pump
Made in China Superior Quality Self-Priming Pump Sirrigation Used Diesel Engine Water Pump

Machine Parts

Name: Exclude sundries
Brand: OCEAN PUMP
Original: CHINA
Loosen the wrench on both sides to remove the blockage in the pump.

Main Features

Name: Mechanical seal
Brand: Burgmann
Original: Germany
The container type mechanical seal adopts wear-resistant alloy and fluorine rubber. The service life is long, and the replacement is convenient.
