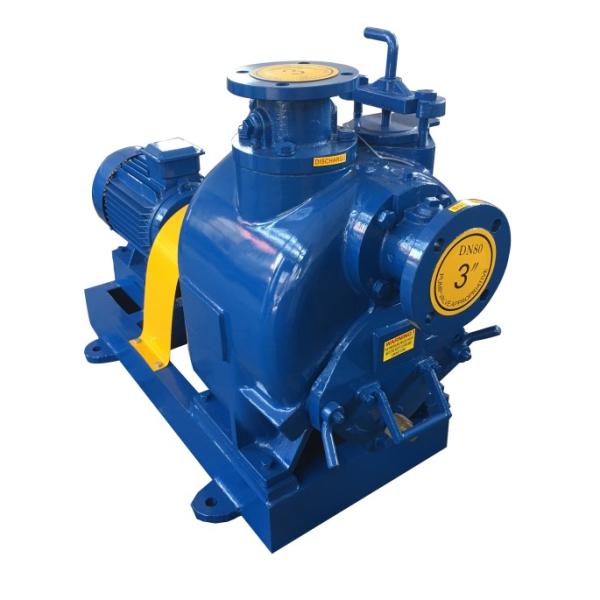

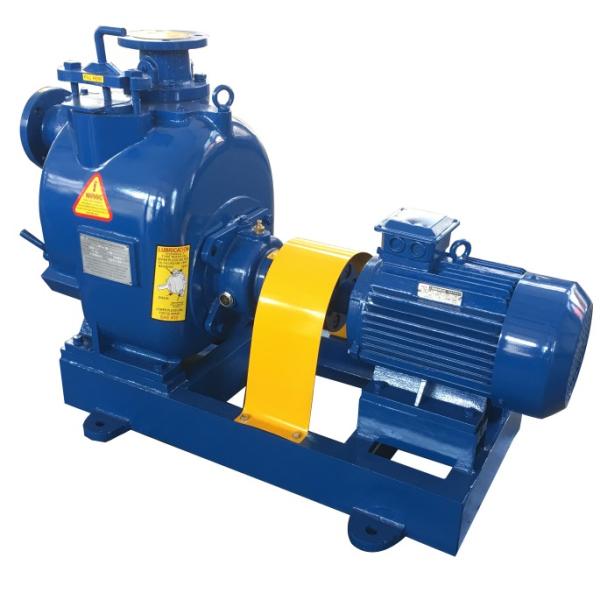

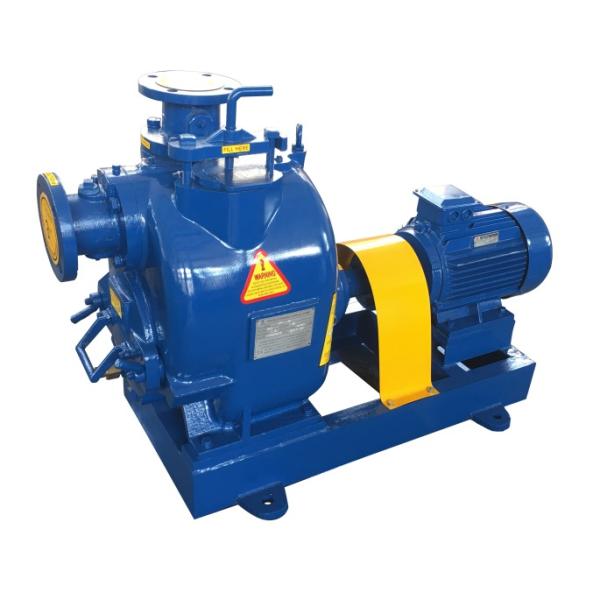

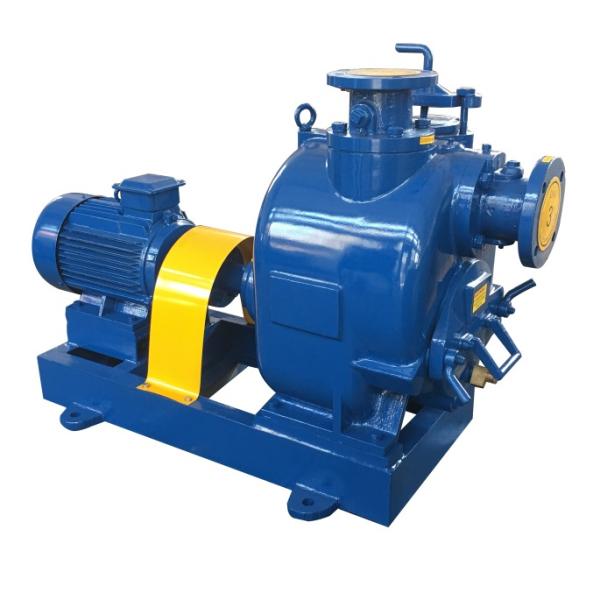

Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Specifications
warranty :
1 Year
customized support :
OEM
Brand Name :
OCEANPUMP
Model Number :
T -3
Place of Origin :
Zhejiang, China
application :
Water Treatment Solutions
power source :
Electric
pressure :
Low Pressure
structure :
Horizontal pump
voltage :
380V or 400V or 440V or 660V
Standard or Nonstandard :
Standard
Theory :
Centrifugal Pump
Material :
Cast iron
Motor :
According to the customer to choose
Feature :
Maintenance
Certificate :
ISO9001:2008
Impeller type :
Open
Max.solids :
63.5MM
Self-priming :
7.6MM
Description
Products Description
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump

Product Application

T series self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units. The utility model is suitable for outdoor use. The utility model has the advantages of high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.

T series 3 inch electric motor driven self suction sewage pump, suction stroke 7.6 m Electric self-priming pump




T-6 PUMP
Max Flow
100m3/h
Max Head
35m
Max Solide
63.5mm (3'')
Self-priming
7.6m
Impeller dia
222.25mm
R.P.M
650~1500rpm


Material
Pump casing
Cast iron HT250
Impeller
Nodular cast iron
Shaft
40CR




Motor
Model
1-20HP
No. of cylinders
3
Cooling method
Air cooling
Protection level
IP54
Voltage
380V or 400V or 440V or 660V
Frequency
50HZ or 60HZ
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump

Main Features

1. Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters
2. Sewage capacity is large, the maximum amount of impurities through 63.5mm
3. Strong self-priming capacity, up to 7.6 meters
4. Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.
5. When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble. Ensure safe operation of equipment.

Product Application

T series self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units. The utility model is suitable for outdoor use. The utility model has the advantages of high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.

Main Features

1. Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters
2. Sewage capacity is large, the maximum amount of impurities through 76.2mm
3. Strong self-priming capacity, up to 7.6 meters
4. Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.
5. When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble. Ensure safe operation of equipment.

Detailed Images
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump

Machine Parts

Name: Diesel engine

Brand: deutz

Original: China

Inline, 3 cylinder, four stroke, self suction, direct injection fuel system

Main Features

Name: Control cabinet
Brand: OCEAN
Original: China
Control the starting and stopping of diesel engine, check the water temperature, oil temperature, oil pressure, speed of diesel engine, etc.. Multi language: English, Spanish, Chinese, Russian, Arabic, polish, etc.

Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump

Machine Parts

Name: Exclude sundries
Brand: OCEAN PUMP
Original: CHINA
Loosen the wrench on both sides to remove the blockage in the pump.

Main Features

Name: Mechanical seal
Brand: Burgmann
Original: Germany
The container type mechanical seal adopts wear-resistant alloy and fluorine rubber. The service life is long, and the replacement is convenient.

Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Application Scenarios
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Our Service
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Product classification
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Company Profile
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Exhibition
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Packing and transportation
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
FAQ
Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
1. Who Are We? We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office. 2. How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What Can You Buy From Us? Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump 4. Why Should You Buy From Us Not From Other Suppliers? Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D. 5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
