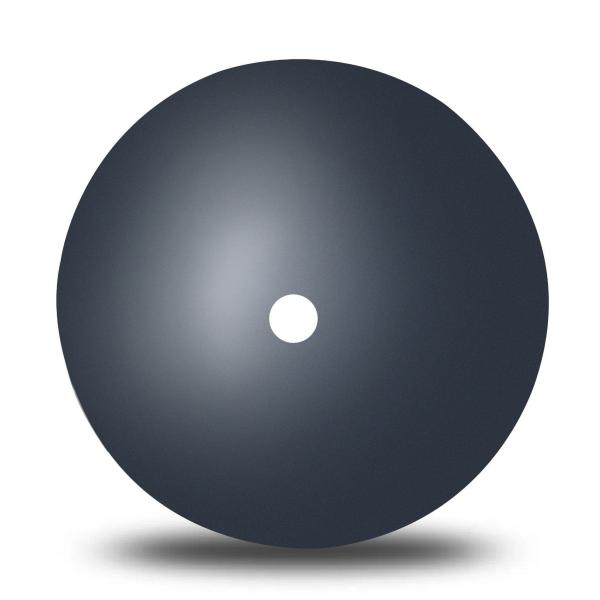

Painting Disc Harrow Blade Disc Plough Blade For Soil Preparation
Painting Disc Harrow Blade Disc Plough Blade For Soil Preparation
Painting Disc Harrow Blade Disc Plough Blade For Soil Preparation
Painting Disc Harrow Blade Disc Plough Blade For Soil Preparation
Specifications
Brand Name :
Xinyi
Model Number :
65Mn
Certification :
CE
Place of Origin :
China
MOQ :
100pieces
Price :
US $ 22.48-24.26 /piece
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
6000piece/per Month
Delivery Time :
8-15 work days
Packaging Details :
Iron Frame
Material :
65mn/40mnb
Power Source :
Diesel
Weight :
1.1-27kgs
After-sales Service :
Provide
Warranty :
One Year
Color :
Red/Black/Blue/Yellow
Width :
12inch-44inch
Thickness :
3mm-12mm
Hardness :
38-46HRC
Edge of Disc Blade :
Round or Notched
Shape :
Flat,Concave or Wavy
Specification :
Customizable
HS Code :
8413290000
Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name: Disc Harrow Blade Parts Disc Plough Accessories For Efficient Soil Preparation

Both Disc Harrow and Plow Blades come in a wide array of sizes and configurations, offering unparalleled flexibility to meet diverse farming requirements. Their user-friendly installation mechanisms streamline maintenance, reducing equipment downtime and keeping your farming operations running at peak efficiency.​
Elevate your farming efficiency and yield quality by investing in our Disc Harrow and Plow Blades. Backed by our dedication to quality and customer satisfaction, these products are your trusted partners in achieving agricultural success.
Material: 65Mn,Boron steel
Hardness: HRC38-45, HRC43-48
Thickness: 3.0-12.5mm
Size/dimension: 12"-44"(300mm-1120mm)
Edge of Disc Blade: Round or Notched.
Shape: Flat,Concave or Wavy
MOQ: 100 pcs
Production Capacity: 7 Million pcs annually
Surface treatment: Painting
Colors: Blue or black ( matt or bright), Made to your order
Hole Type: Square, Round, Hexagon, Clover Leaf, Optional
Hole Size: 27x27mm, 42x42mm, optional
Working Depth: 200mm, 300mm
Working Width: 3.4M ~ 6.2M
Packing: Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic: Highest wear life due to special edge making process
Common Specifications of Disc
Dia. Concavity Thickness
mm inch mm mm
255 10 12 3
305 12 19 3
330 13 25 3
355 14 38 3
410 15 38~50 3
430 17 57 3,4
460 18 38~60 3,4
480 19 57 3,4
510 20 44~63 3,4,5
535 21 63 3,4,5
560 22 60~85 4,5,6
585 23 75~90 4,5.6
610 24 75~95 4,5,6
660 26 86~115 5,6,7,8
710 28 100~130 5,6,7,8
760 30 120~135 6,7,8,10,12
810 32 120~140 8,10,12
910 36 120-200 8,10,12
960 38 120-200 8,10,12

Detailed Photos







Painting Disc Harrow Blade Disc Plough Blade For Soil Preparation

Packaging & Shipping


Painting Disc Harrow Blade Disc Plough Blade For Soil Preparation

Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.

After Sales Service

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
