Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil
Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil
Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil
Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil
Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil
Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil
Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil
Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil
Specifications
Brand Name :
Xinyi
Model Number :
65Mn
Certification :
CE
Place of Origin :
China
MOQ :
100 pieces
Price :
US $ 22.5-24.5 / piece
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000/Month
Delivery Time :
7-14 work days
Packaging Details :
Iron Frame
Material :
65Mn
Power Source :
Diesel
Weight :
1.1-27kgs
After-sales Service :
Provide
Warranty :
1year
Color :
Red/Black/Blue/Yellow
Width :
12inch-44inch
Thickness :
3mm-12mm
Hardness :
38-46HRC
Edge of Disc Blade :
Round or Notched
Shape :
Flat,Concave or Wavy
Surface Treatment :
Painting
Transport Package :
Pallet
Specification :
Customizable
HS Code :
8413290000
Description

Agricultural Disc Blades Harrow Plough Land Leveling Crushed Soil

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name:65Mn Plough Plow Blade Harrow Disc Blade for Harrow Plough

Disc blades are widely used as the most important wear parts on disc plows and disc harrows. Our disc blades have super long life, thickened edges, and anti-rust coatings. They are exported to the United States, Canada, Russia, South Africa, Southeast Asia and other countries every year, with an annual export volume of 1 million pieces. With more than 20 years of production experience, we help customers in various regions to open up better markets.


Thanks to the use of China's best steel Anshan steel and Lingyuan steel, we ensure that the quality of our discs is better and the service life is longer, up to 2-3 years.

Material:

65Mn,Boron steel

Hardness:

HRC38-45, HRC43-48

Thickness:

3.0-12.5mm

Size/dimension:

12"-44"(300mm-1120mm)

Edge of Disc Blade:

Round or Notched.

Shape:

Flat,Concave or Wavy

MOQ:

100 pcs

Production Capacity:

7 Million pcs annually

Surface treatment:

Painting

Colors:

Blue or black ( matt or bright), Made to your order

Hole Type:

Square, Round, Hexagon, Clover Leaf, Optional

Hole Size:

27x27mm, 42x42mm, optional

Working Depth:

200mm, 300mm

Working Width:

3.4M ~ 6.2M

Packing:

Non-fumigation wooden case, metal case according policy of different regions

Feature /Characteristic:

Highest wear life due to special edge making process

Common Specifications of Disc

Dia.

Concavity

Thickness

mm

inch

mm

mm

255

10

12

3

305

12

19

3

330

13

25

3

355

14

38

3

410

15

38~50

3

430

17

57

3,4

460

18

38~60

3,4

480

19

57

3,4

510

20

44~63

3,4,5

535

21

63

3,4,5

560

22

60~85

4,5,6

585

23

75~90

4,5.6

610

24

75~95

4,5,6

660

26

86~115

5,6,7,8

710

28

100~130

5,6,7,8

760

30

120~135

6,7,8,10,12

810

32

120~140

8,10,12

910

36

120-200

8,10,12

960

38

120-200

8,10,12

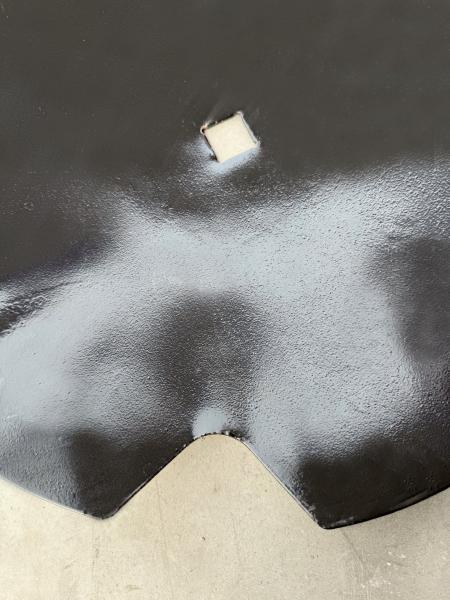

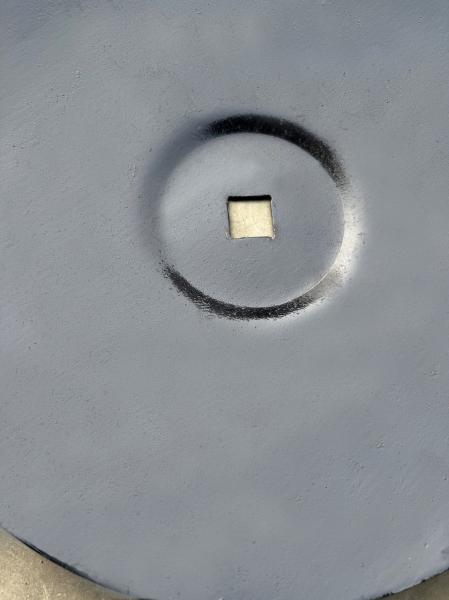

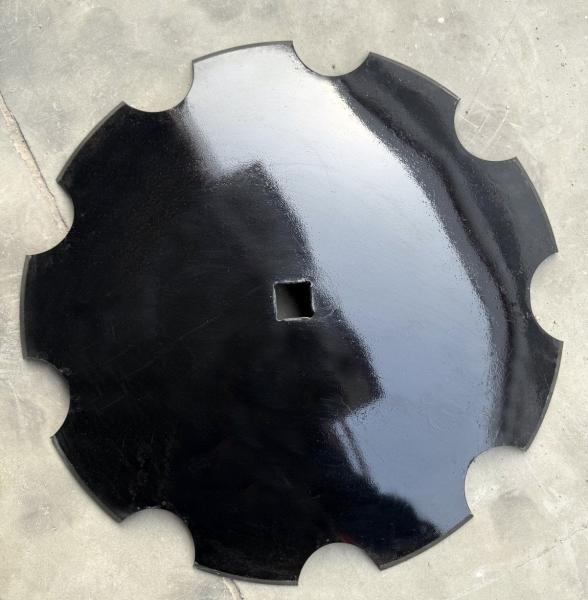

Detailed Photos

Agricultural Harrow Plough Disc Blades Land Leveling Crushed SoilAgricultural Harrow Plough Disc Blades Land Leveling Crushed Soil

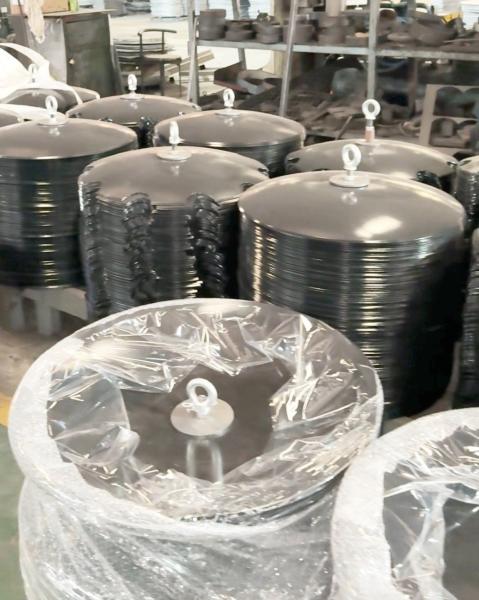

Packaging & Shipping

Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.

After Sales Service

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
