Thickened Disc Harrow Blade Agricultural Wear Resistant 65 Mn Steel
Thickened Disc Harrow Blade Agricultural Wear Resistant 65 Mn Steel
Thickened Disc Harrow Blade Agricultural Wear Resistant 65 Mn Steel
Thickened Disc Harrow Blade Agricultural Wear Resistant 65 Mn Steel
Thickened Disc Harrow Blade Agricultural Wear Resistant 65 Mn Steel
Thickened Disc Harrow Blade Agricultural Wear Resistant 65 Mn Steel
Specifications
Brand Name :
Xinyi
Model Number :
660
Certification :
CE
Place of Origin :
China
MOQ :
100 pieces
Price :
US$22.48-24.26 pieces
Payment Terms :
L/C,Western Union,T/T
Supply Ability :
5000/Month
Delivery Time :
7-14 Work Days
Packaging Details :
Iron Frame
Model NO. :
Boron Steel, 65mn Steel
Material :
65Mn
Power Source :
Diesel
Weight :
1.1-27kgs
After-sales Service :
Provide
Warranty :
1year
Color :
Red/Black/Blue/Yellow
Width :
12inch-44inch
Thickness :
3mm-12mm
Hardness :
38-46HRC
Edge of Disc Blade :
Round or Notched
Shape :
Flat,Concave or Wavy
Surface Treatment :
Painting
Transport Package :
Pallet
Specification :
Customizable
HS Code :
8413290000
Description

Thickened Disc Harrow Blade Agricultural Wear-Resistant 65 Mn Steel High Quality

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name:Agriculture Machinery Disc Harrow Blade Parts Disc Plough/Plow Blade

Disc harrow blades are core components of agricultural tillage equipment, primarily used for soil crushing, weed removal, and land leveling. Suitable for various farming scenarios including drylands, paddy fields, and orchards, these blades are made of high-quality alloy steel for wear resistance, impact resistance, and extended service life, significantly improving tillage efficiency while reducing operational costs.

Key Features

✅ High-Strength Material
- Forged from 65Mn with, enhancing wear resistance by 50%

✅ Optimized Design
- Notched/smooth disc options for superior soil breakup
- Multiple sizes to match different tractor power levels

✅ High Efficiency
- Curved blade design ensures quick soil penetration and low resistance, boosting work efficiency by 30%
- Adjustable angle for drylands, paddy fields, orchards, and other terrains

✅ Extended Lifespan
- Reinforced edge + anti-rust coating for over 5 years of service
- Supports individual blade replacement, minimizing maintenance costs

Material:

65Mn,Boron steel

Hardness:

HRC38-45, HRC43-48

Thickness:

3.0-12.5mm

Size/dimension:

12"-44"(300mm-1120mm)

Edge of Disc Blade:

Round or Notched.

Shape:

Flat,Concave or Wavy

MOQ:

100 pcs

Production Capacity:

7 Million pcs annually

Surface treatment:

Painting

Colors:

Blue or black ( matt or bright), Made to your order

Hole Type:

Square, Round, Hexagon, Clover Leaf, Optional

Hole Size:

27x27mm, 42x42mm, optional

Working Depth:

200mm, 300mm

Working Width:

3.4M ~ 6.2M

Packing:

Non-fumigation wooden case, metal case according policy of different regions

Feature /Characteristic:

Highest wear life due to special edge making process

Common Specifications of Disc

Dia.

Concavity

Thickness

mm

inch

mm

mm

255

10

12

3

305

12

19

3

330

13

25

3

355

14

38

3

410

15

38~50

3

430

17

57

3,4

460

18

38~60

3,4

480

19

57

3,4

510

20

44~63

3,4,5

535

21

63

3,4,5

560

22

60~85

4,5,6

585

23

75~90

4,5.6

610

24

75~95

4,5,6

660

26

86~115

5,6,7,8

710

28

100~130

5,6,7,8

760

30

120~135

6,7,8,10,12

810

32

120~140

8,10,12

910

36

120-200

8,10,12

960

38

120-200

8,10,12

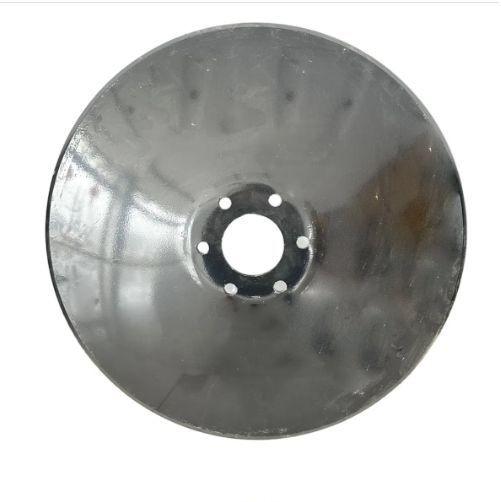

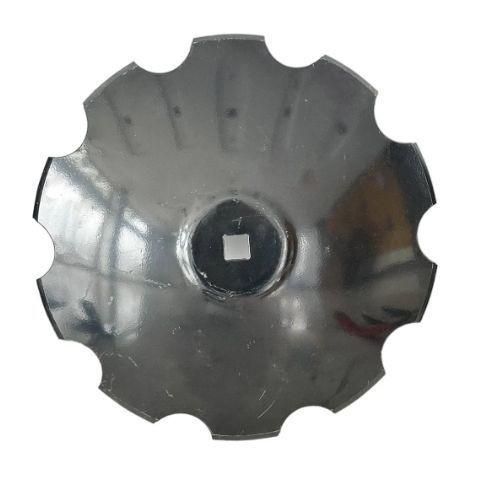

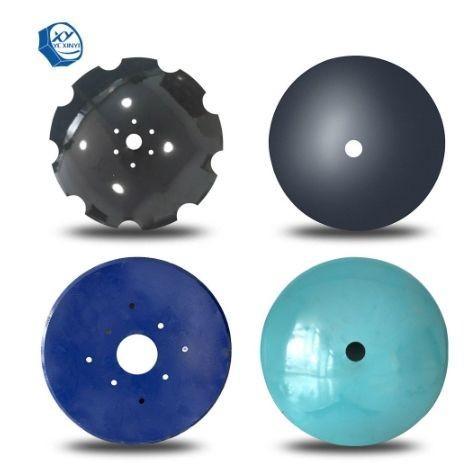

Detailed Photos

Thickened Disc Harrow Blade Agricultural Wear Resistant 65 Mn SteelThickened Disc Harrow Blade Agricultural Wear Resistant 65 Mn Steel

Packaging & Shipping

Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.

Our Company :

Business type

Manufacture

Location

Yucheng, Shandong,China

Year Established

2005

Occupied area

50 Acres

Company certification

CE, ISO9001

Main product

Disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter plowing blade, plough blade, soil-loosening shovel and so on.
Wif good quality, excellent performance, our products annually export to countries around the world, and we has gained the majority of customers trust.

After Sales Service

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
