Specifications
Brand Name :
Xinyi
Model Number :
7cx
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
500-2000USD
Payment Terms :
T/T
Supply Ability :
2000pieces/years
Delivery Time :
10 days
Packaging Details :
Customizable
Usage :
Transportation
Loading Weight :
0.5t-20t
Structure :
Dump Trailer
Air Brake Type :
Air Inflating
Axle Number :
1/2/4
Dumping Direction :
Hydraulic Dump
Tire Number :
2-6
Condition :
New
Carriage Dimension :
Customizable
Colour :
Customizable
Matched Power :
60-160hp
Description

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter


The 7C series farm trailers offer a comprehensive range of models with load capacities from 3T to 20T, designed to meet diverse agricultural transportation needs. Engineered with a rational structural framework, elegant exterior design, and cost-effective durability, these trailers seamlessly integrate with various tractor types, ensuring optimal performance in both rural and commercial settings. The 7C agricultural lineup is thoughtfully categorized into suspension-type, half-suspension-type, self-discharging, and non-self-discharging configurations, providing versatile solutions for different hauling requirements. With compatibility spanning 8-120 horsepower tractors, these trailers excel in both road-based logistics and off-road field transportation, combining functionality with operational flexibility.

Enhanced Main Features

  1. The trailer bed features a 3mm-thick bottom plate, while side panels are standard at 1.5mm thickness. Customizable upgrades to thicker gauges are available to accommodate heavy-duty applications and specialized cargo needs.
  2. Equipped with high-grade tires rated for maximum load capacity, the trailers incorporate 11-layer reinforced bow boards. This construction ensures compliance with industry-standard load-bearing requirements, delivering reliable performance even under strenuous use.
  3. Every accessory is meticulously selected for premium quality and durability, sourced from trusted suppliers. All components are available for direct purchase through our factory, ensuring convenient replacement and maintenance for long-term usability.
  4. The trailer surface undergoes a specialized plastic-spray coating process, providing a robust anti-corrosion layer. This finish not only extends the product lifespan but also maintains aesthetic appeal in harsh agricultural environments.
  5. Optional upgrades include reinforced hitch systems for improved towing stability, LED lighting packages for enhanced safety during nighttime operation, and modular cargo securing systems to accommodate diverse load types.



Product Parameters:


Model 7C-4 / 7CX-4 7C-5 / 7CX-5 7CX-5 7C-6 / 7CX-6 7C-8 / 7CX-8 7CX-8
Carriage dimension
(mm)
3800*1700*460 4000*2150*550 4000*2150*550 4500*2150*550 5500*2150*550 4000*2150*550
Overall dimension
(mm)
5250*1800*2050 /
5250*1800*2150
5780*2250*2200/
5780*2250*2320
5780*2250*2320 6300*2250*2380/
6300*2250*2500
7300*2250*2380/
7500*2250*2380
5780*2250*2380
Rated weight(kg) 4000 5000 5000 6000 8000 8000
Dead weight(kg) 1155 / 1450 1457 / 1750 1880 1670 / 2060 2180 / 2730 2096
Tyre size/quantity 7.50-16/4 8.25-16/4 8.25-16/4 9.00-16/4 7.50-16/8 7.50-16/8
Unload form NO / Hydraulic
dump( left & right )
NO / Hydraulic
dump( left & right )
Hydraulic
dump(left,right and
back)
NO / Hydraulic
dump( left & right )
NO / Hydraulic
dump( left & right )
Hydraulic
dump(left,right and
back)
Brake form Air brake Air brake Air brake Air brake Air brake Air brake
Matched power(HP) 35-40 40-50 45-55 50-65 60-80 60-80
Quantity /20GP 15 / 15 10/10 10 10 10 10

Detailed Photos

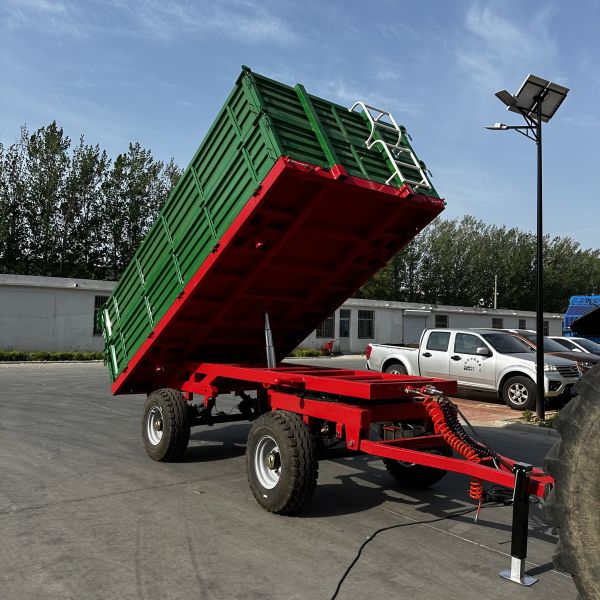

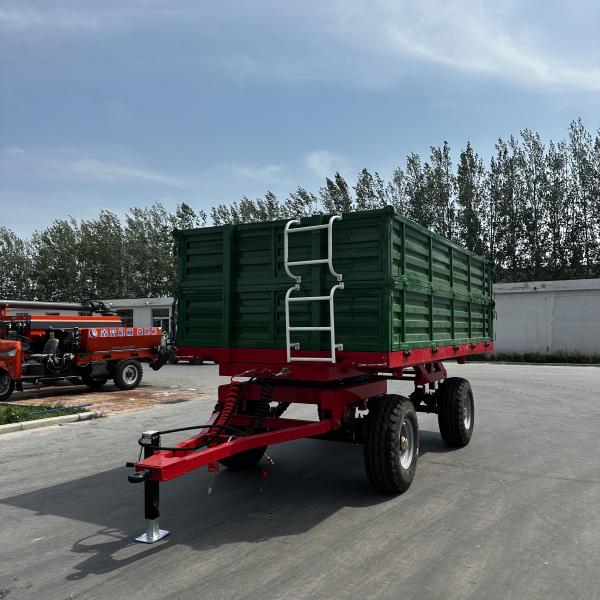

Transportation Utility Model Farm Trailer For Crops Rational Structural Framework
Transportation Utility Model Farm Trailer For Crops Rational Structural Framework
Transportation Utility Model Farm Trailer For Crops Rational Structural Framework
Transportation Utility Model Farm Trailer For Crops Rational Structural Framework
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.

After Sales Service

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .

2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.

3,We can also provide training services to different users.

FAQ

1. Q: Manufacturer or trading company?
A:We're a manufacturer. We have physical manufacturers.
2.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you
accordingly. Please understand we have a very wide product range, we don't usually offer full
products price list.
3. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
4.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
5.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
6. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.
