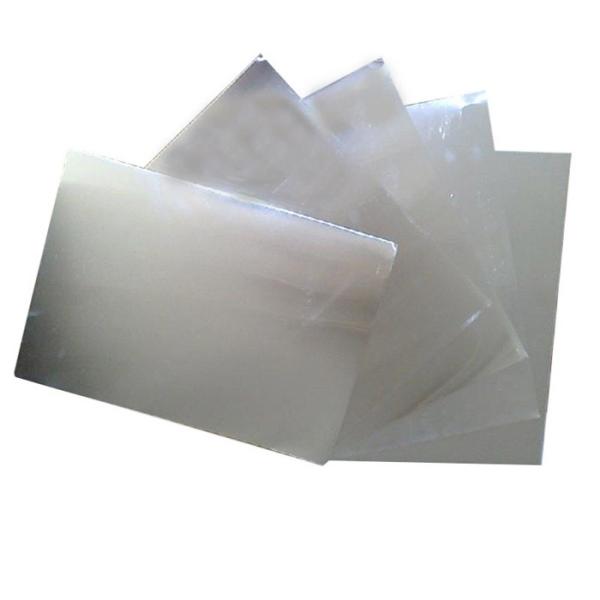

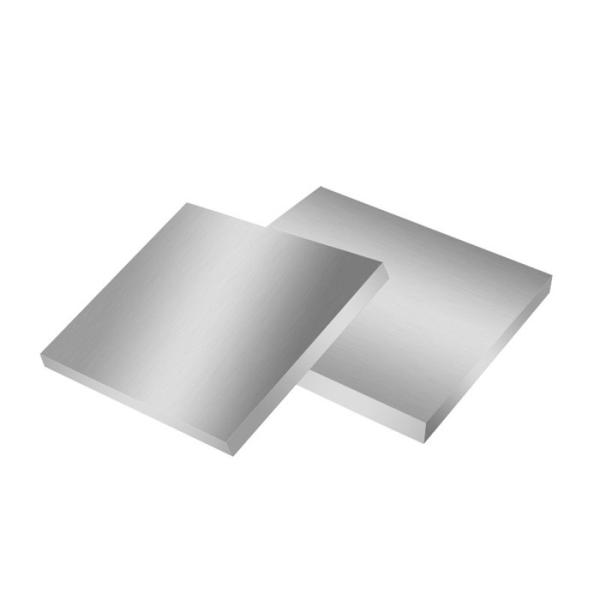

T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color
T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color
T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color
T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color
T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color
T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color
Specifications
Model Number :
2017
Certification :
SGS, BV, ASTM, etc
Place of Origin :
China or Imported
MOQ :
As Request
Price :
Negotiable
Payment Terms :
TT
Delivery Time :
Within 7 days or According to Order
Packaging Details :
Export Standard Wooden Pallet or Case
Product name :
2017 Aluminum Alloy Plate for Aircraft Usage
Temper :
T3, T4
Grade :
2017 Alloy
Alloy or not :
Alloy
Type :
Plate/ Sheet
Application :
Industry, Aircraft
Standard :
GB/T 3880-2012
Package :
Wooden Pallet
Supply Ability :
30 Tons/Month
Brand Name :
Domestic or Imported materials
Description

2017 Aluminum Alloy Plate for Aircraft Usage

2017 Alloy is a typical hard aluminum alloy in the aluminum-copper-magnesium series, which has reasonable composition and good comprehensive performance. The characters of this alloy are with high strength and certain heat resistance, it can be used as a working part below 150 °C. The strength of the 2017 alloy is higher than the 7075 alloy. This material are widely used in aircraft structures, rivets, truck hubs, propeller components and other structural components.

Chemical Composition WT(%)
Silicon Iron Copper Magnesium Manganese Chromium Zinc Titanium Others Aluminum
0.2~0.8 0.7 3.5~4.5 0.4~0.8 0.4~1.0 0.1 0.25 0.15 0.15 Balance

Typical Mechanical Properties

Thickness

(mm)

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation

(%)
0.5~250 215~355 ≥120 12~17

Application

Propeller

T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color

Truck Hubs

T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color

FAQ

1. Are you a manufacturer or trading company ?
We are Shanghai trading company with procesing machines and stocks, can provide customize size and processing servies.
2. When can I get your reply after the inquiry.
Within 15 minutes during working time, whthin 12 hours during non-working time.
3. How can I get an accurate quote?
Please provide the information of prodcuts standard, material, size and quantity.
4. What is your MOQ?
There is no MOQ with stock size, and others is 100 KG.
5. How long is your delivery time?
Within 5 days for stock size, 15-30 days for customized size.
6. Can you provide smples?
Yes, smples can be offered with only delivery fee.

Our Stock

T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color

Sawing Machine

T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color

Draft Mill Certificate

T3 2017 Aerospace Grade Aluminium Sheet 120Mpa Yield Strength Silver Color
