Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness
Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness
Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness
Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness
Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness
Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness
Specifications
Model Number :
A2024
Certification :
SGS, BV, ASTM, etc
Place of Origin :
China or Imported
MOQ :
As Request
Price :
Negotiable
Payment Terms :
TT
Delivery Time :
Within 7 days or According to Order
Packaging Details :
Export Standard Wooden Pallet or Case
Product name :
2024 Aluminum Plate
Temper :
T3, T4
Grade :
2024
Alloy or not :
Alloy
Type :
Plate/ Sheet
Application :
Aerospace, Automobile
Standard :
GB/T 3880-2012
Package :
Wooden Pallet
Supply Ability :
30 Tons/Month
Brand Name :
Domestic or Imported materials
Description

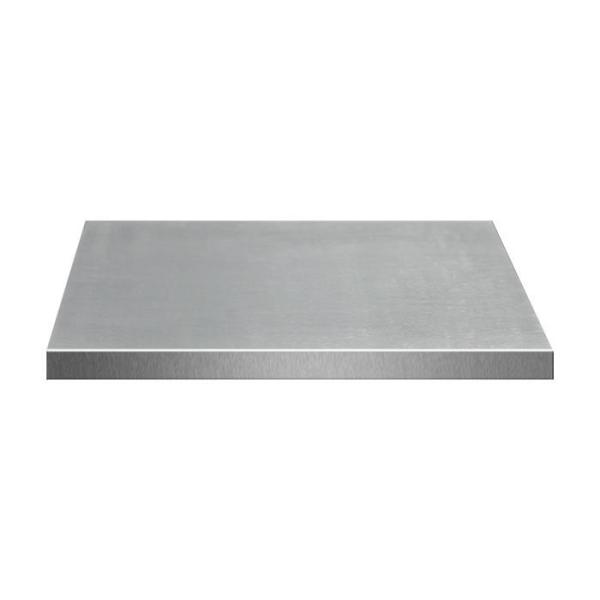

2024 Aluminum Plate for Areospace Usage

Alloy 2024 aluminum plates are perhaps the best known and most widely used aircraft alloy. Since it exhibits high yield strength and relatively good fatigue resistance, it is readily used on structures and parts where good strength-to-weight ratio is desired. Because of its good machinability and superior grain structure, Alloy 2024 plate is essential for precision fittings and parts. Though this alloy does not have good corrosion resistance, welding by resistance method is feasible.

Chemical Composition WT(%)
Silicon Iron Copper Magnesium Manganese Chromium Zinc Titanium Others Aluminum
0.5 0.5 3.8~4.9 1.2~1.8 0.3~0.9 0.1 0.25 0.15 0.15 Balance

Typical Mechanical Properties

Thickness

(mm)

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation

(%)
0.3~350 470 325 12

Application

Fuselage structurals

Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness



Wings

Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness


Automobile Parts

Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness

FAQ

1. Are you a manufacturer or trading company ?
We are Shanghai trading company with procesing machines and stocks, can provide customize size and processing servies.
2. When can I get your reply after the inquiry.
Within 15 minutes during working time, whthin 12 hours during non-working time.
3. How can I get an accurate quote?
Please provide the information of prodcuts standard, material, size and quantity.
4. What is your MOQ?
There is no MOQ with stock size, and others is 100 KG.
5. How long is your delivery time?
Within 5 days for stock size, 15-30 days for customized size.
6. Can you provide smples?
Yes, smples can be offered with only delivery fee.

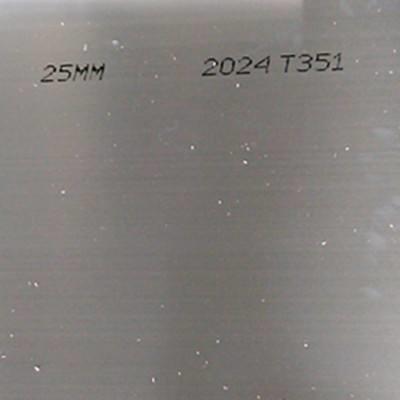

Our Stock

Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness

Sawing Machine

Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness

Draft Mill Certificate

Industrial 2024 Aerospace Grade Aluminium Plate 0 . 3 - 350MM Thickness
