Haulotte Optimum Upright Scissor Lift Control Box IP67 Scissor Lift Control Box
Haulotte Optimum Upright Scissor Lift Control Box IP67 Scissor Lift Control Box
Specifications
Axis Control: :
Dual-Axis (X-Y Directional Tracking)
Payment Terms :
100% TT in advance
Place of Origin :
China
MOQ :
1
Product Name: :

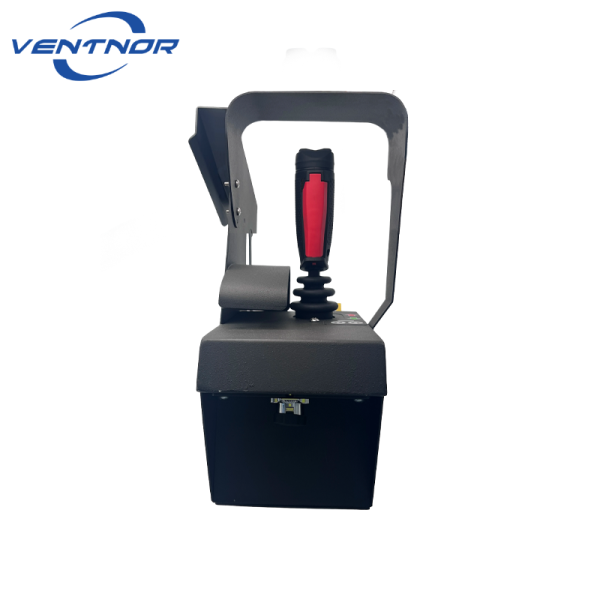

Haulotte Optimum O Series Upper Joystick Assembly
Connector Type: :
Multi-Pin Sealed Plug-and-Play
Delivery Time :
5-8 working days
Operating Temperature: :
-30°C to +70°C
Price :
$200-300
Supply Ability :
2000pcs/month
Signal Output: :
Proportional Voltage Logic
Packaging Details :
Carton
Ingress Protection: :
IP67 Rated Upper Boot Seal
Brand Name :
Ventnor
Description
Haulotte Optimum 8 O Series Upper Joystick Assembly Dual Axis Control
1. Technical Overview
The Haulotte Optimum O Series Upper Joystick Assembly is a high-precision, industrial-grade dual-axis controller engineered for upper control boxes on aerial work platforms. Operating on a proportional voltage output matrix, this micro-switching assembly translates multi-directional physical deflection into smooth, variable-speed travel and lifting commands. The controller is equipped with a high-density, IP67 waterproof silicone upper boot that seals the mechanical gimbal array against rainwater, chemical cleaners, and atmospheric airborne particulates common to outdoor construction sites. Designed as a direct drop-in replacement for Haulotte Optimum 8 and O Series scissor lifts, the assembly features an integrated deadman enable trigger to enforce strict operator safety and prevent accidental machine movement. The underlying electrical board utilizes solid-state tracking to deliver consistent millivolt signal returns over millions of operational cycles, eliminating steering dead bands and velocity drift under severe vibration profiles. [1]
2. Technical Specifications
Engineering Parameter Certified Value / Specification Compliance & Testing Standard
Operational Interface Dual-Axis (Forward/Reverse/Left/Right) Standard X-Y Coordinate Tracking
Output Profile Proportional Analogue Voltage Linear Scale Signal Continuity Test
Sealing Protection IP67 Protection Class (Gimbal Area) IEC 60529 Moisture Intrusion Testing
Safety Interlock Mechanical Bottom Trigger Deadman Functional Safety Isolation
Connection Protocol Multi-Pin Molded Plug-and-Play Terminal Factory Wiring Harness Matching
Mechanical Lifespan Minimum 2,000,000 Full Deflections Accelerated Durability Fatigue Cycles
Structural Housing High-Impact ABS & Reinforced Alloy Drop Shock and Structural Stress Controls
Operating Voltage 5V DC Nominal Logic Input Standard Control Box Bus Compatibility
3. Engineering Advantages & Applications
  • Proportional Speed Adjustments: Modulates hydraulic valve flows smoothly based on lever angle to ensure steady deceleration and jerky-free platform positioning.
  • IP67 Environmental Shielding: Uses a heavy-duty silicone rubber shroud to stop moisture from causing electrical short circuits inside the lower contact board.
  • Ergonomic Deadman Interlock: Requires positive trigger compression prior to directional movement to eliminate unintended activation risks from tool drops.
  • Plug and Play Termination: Features a pre-installed multi-pin connector harness to cut installation down-time during field maintenance swaps.
  • Zero Position Self Centering: Deploys high-rate dual return springs to snap the lever back to absolute neutral when released, activating automatic braking.
  • Wear Resistant Contact Tracks: Utilizes robust internal sensor tracks to prevent voltage signal drift during prolonged operations in extreme heat.
4. Technical FAQ
Q: How does the proportional output logic of the Haulotte Optimum O Series Upper Joystick Assembly improve platform safety?
A: The internal electronic board calculates the exact angle of lever displacement to generate a proportional voltage signal loop. Instead of harsh on/off steps, this variable voltage profile lets hydraulic valves open gradually, preventing sudden platform sway at max extension heights.
Q: What prevents the joystick assembly from generating ghost signals when working in sub-zero winter temperatures?
A: The unit is rated for an environmental operating threshold down to -30°C. The internal springs and electrical contact traces are treated with moisture-repellent compounds that prevent freezing and component contraction, which keeps centering calibration perfectly accurate.
Q: Can this upper control box joystick handle direct pressure washing during equipment decontamination?
A: The upper handle and sealing boot carry an IP67 ingress protection rating, meaning it resists low-pressure water sprays and heavy rain. However, during machine cleaning, avoid pointing high-pressure industrial washers directly at the bottom connector plug underneath the box shield.
Q: How do technicians diagnose an internal tracking failure on this Haulotte scissor lift joystick?
A: The multi-pin logic layout allows technicians to test voltage sweeps across the directional pins using a digital multimeter. A functioning unit will show a steady, linear voltage rise from 2.5V neutral up to 4.5V or down to 0.5V at maximum handle deflection.
