Upper Joystick Control Dingli RT Control Box For Scissor Lift
Upper Joystick Control Dingli RT Control Box For Scissor Lift
Specifications
Joystick Tech :
Dual-Channel Redundant Potentiometric
Product Name :
Dingli RT Upper Control Assembly
Brand Name :
Ventnor
Ingress Class: :
IP65 Structural Compression Gasket
Housing Layer :
High-Density Double-Wall Polymer
Place of Origin :
China
Drive Synchrony :
4WD Hydraulic Flow-Match Logic
Delivery Time :
5-8 working days
Safety Lockout :
Zero-Position Mechanical Lift Trigger
Supply Ability :
2000pcs/month
Packaging Details :
Carton
MOQ :
1
Payment Terms :
100% TT in advance
Price :
$200-300
Description

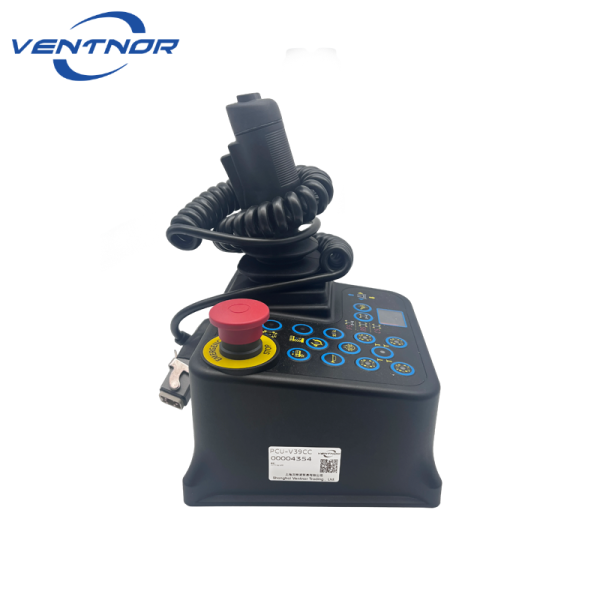

Dingli RT Upper Joystick Control Assembly
1. Technical Overview
The Dingli RT Upper Joystick Control Assembly is a high-reliability, micro-regulated platform control station engineered specifically for the synchronized four-wheel-drive (4WD) hydraulic systems mounted on Dingli rough terrain scissor lifts. To satisfy stringent global functional safety standards, the primary proportional lever utilizes a high-precision dual-channel redundant potentiometric tracking matrix, cross-checking simultaneous analog voltage curves to completely eliminate unintended vehicle acceleration from isolated circuit failures. Designed for harsh, unpaved job sites, the control box features integrated 4WD hydraulic flow-match logic switches, ensuring balanced wheel-torque distribution when navigating mud, sand, or loose aggregate. The upper control handle incorporates a heavy-duty zero-position mechanical lockout trigger that physically blocks handle deflection until actively compressed by the operator's hand. Housed within a double-wall, UV-stabilized impact polymer enclosure, the internal logic arrays are fully isolated against moisture intrusion, driving rain, and fine particulate pollution.
2. Technical Specifications
Engineering Parameter Certified Value / Specification Compliance & Testing Standard
Tracking Redundancy Dual-Channel Analog Resistance Loops EN 280 / ISO 13849 Functional Safety
Mechanical Interlock Deadman Mechanical Lever Trigger Zero-Position Physical Accidental Isolation
Drive Coordination Proportional 4WD Flow-Matching Bus Multi-Pump Hydraulic Speed Sync Profile
Enclosure Rating IP65 Splash and Particle Barrier IEC 60529 Moisture Intrusion Protection
Connector Core Pre-Wired Multi-Pin Sealed Array Fleet Plug-and-Play Matching Calibration
Terminal Impedance ≤ 5 mΩ Contact Resistance Over Pins Low-Voltage Signal Dropout Optimization
Enclosure Toughness IK08 High-Impact Structural Matrix Cold-Chamber Mechanical Drop Evaluation
Temperature Profile -30°C to +70°C Operational Range Extreme High/Low Ambient Load Testing
3. Engineering Advantages & Applications
  • Dual Channel Safety Redundancy: Cross-analyzes twin independent voltage wiper signals continuously, initiating an instant software shutdown if signal divergence exceeds 10%.
  • 4WD Flow Match Synchrony: Directs linear voltage signals to dual-displacement wheel motors, preventing spin-out on slick, uncompacted terrains.
  • Zero Position Mechanical Trigger: Employs a positive mechanical spring latch within the handle body to arrest shifting forces until the safety gate is manually unlocked.
  • IP65 Double Wall Architecture: Absorbs severe structural slam forces via thick-wall polymer ribbing while sealing out atmospheric water vapor.
  • Low Impedance Interconnects: Implements specialized tin-lead alloy pins within the quick-disconnect junction to secure stable micro-ampere flow in sub-zero weather.
  • Heavy Duty Toggle Switch Array: Features industrial toggle switches with thick internal silver contacts to maintain arc-free switching under full logic currents.
4. Technical FAQ
Q: How does the dual-channel potentiometric joystick within this Dingli RT control box enhance structural safety at high elevations?
A: High-altitude operation requires complete protection against runaway commands. The integrated dual-channel redundant potentiometric tracking matrix routes two parallel analog voltage sweeps to the lift controller; the supervisory processor reads both channels simultaneously and triggers an immediate hydraulic lockout if dirt or wear causes a voltage imbalance between them.
Q: What exact engineering issue does the 4WD hydraulic flow-match logic switch resolve on mud-slick jobsites?
A: When a heavy scissor lift loses traction on one wheel, hydraulic oil naturally flows to the path of least resistance, causing that wheel to spin freely while the others stall. This console incorporates 4WD hydraulic flow-match logic that signals the machine's flow-divider valves to distribute equal pressure to all four wheels, ensuring steady traction over rough terrain.
Q: Why is the zero-position mechanical lockout handle preferred over a standard electronic button interlock?
A: Electronic buttons can become stuck due to dirt buildup or can be taped down by operators, compromising safety. The zero-position mechanical lockout trigger uses a physical spring-loaded collar within the handle assembly that must be squeezed upward to disengage a steel pin, ensuring positive operator intent before any platform movement occurs.
Q: How do the ultra-low impedance terminal pins maintain stable data connections under cold weather battery drops?
A: Cold job sites drop nominal 24V lead-acid battery banks down to lower thresholds, making logic systems vulnerable to line-drop errors. The ultra-low impedance tin-lead alloy pins (≤ 5 mΩ) maintain a continuous, low-resistance connection path, eliminating signal attenuation and preventing electronic "brownout" failures during freezing morning startups.
