Specifications
Brand Name :
GCL
Model Number :
Gmesh
Certification :
CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
Place of Origin :
China Guangdong
MOQ :
20
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
depend on quantity
Delivery Time :
7-30days
Packaging Details :
wooden case
Port :
Shenzhen China
Brightness Adjustment :
Manual/Automatic
Operating Humidity :
35% -75%
Tube Chip Color :
Full Color
Gray Scale :
16bit
Control System :
Synchronous/Asynchronous
Materials :
magnesium alloy
Pannel Material :
Steel
Sunlight Readable :
Yes
Leds Type :
DIP 346
Protection :
IP65
Description
Outdoor Transparent LED Display with 10,000 Nits Brightness, IP65 Protection, and Lightweight Design P25mm P31.25mm
High-performance LED grille displays with up to 75% light transmittance, designed for demanding outdoor applications.
Product Overview

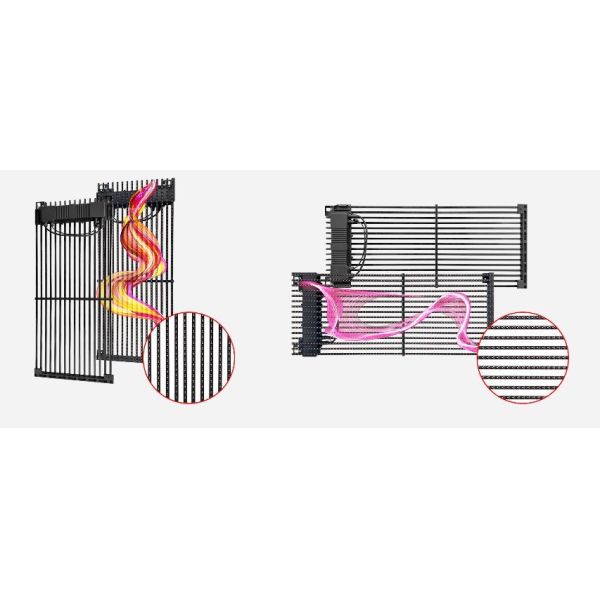

The Gmesh-T series grille displays are engineered for optimal performance in harsh outdoor environments. Ideal for building curtain walls, rooftop installations, large outdoor advertising screens, and various other applications.
Key Features
  • Ultra-slim cabinet design with maximum thickness of only 92.7mm
  • Lightweight structure at 11.5-14kg per square meter, reducing steel structure costs for high-altitude installations

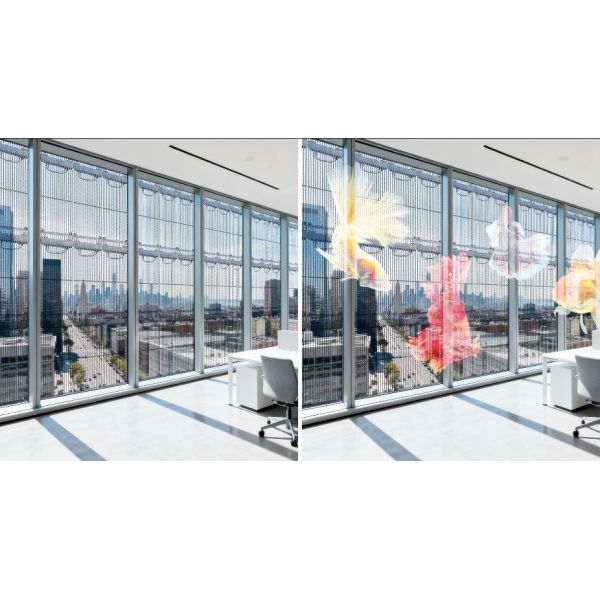

  • Optical transmittance of 35%-75%, maintaining building lighting and ventilation
  • High brightness up to 10,000 nits using DIP LED beads, suitable for direct-sunlight outdoor use
  • Available in horizontal/vertical LED array layouts for flexible installation
  • Strong scene adaptability for curtain wall advertising, stage backdrops, stadium perimeters, and cultural tourism landmarks
  • Full compliance with CE, RoHS, CCC, and FCC certifications for international export
Technical Specifications
Product P16-A P16-B P25 P31.25
Pitch (mm) 15.625mm 31.25-15.625mm 31.25-25mm 31.25mm
Density (pixels/m²) 4096 2048 1280 1024
LED Type DIP346 DIP346 DIP346 DIP346
Brightness (nits) 10000 10000 10000 8000
Scan static static static static
Cabinet Weight ≤14kg/㎡ ≤12.7kg/㎡ ≤12kg/㎡ ≤11.5kg/㎡
Max Power Consumption 350W/㎡ 350W/㎡ 350W/㎡ 350W/㎡
Average Power Consumption 120W/㎡ 120W/㎡ 120W/㎡ 120W/㎡
Additional Specifications
Cabinet Size: 500*500/500*625/500*1000/500*1250/customizable
Cabinet Material: Profile Aluminum + Die-Cast Aluminum
Protection Level: IP65
Cabinet Maintenance: Front/Rear Maintenance
Refresh Rate: ≥3840Hz
Grey Scale: 16Bit
Viewing Angle: H100°, V50°
Input Voltage: AC100~240V (50-63Hz)
Working Temperature: -40℃ to +70℃
Working Humidity: 10% - 90% RH
Color Temperature: 6500-9500K
Certifications: CE, RoHS, CCC, FCC
