Specifications
Brand Name :
GCL
Model Number :
Gmesh
Certification :
CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
Place of Origin :
China Guangdong
MOQ :
20
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
depend on quantity
Delivery Time :
7-30days
Packaging Details :
wooden case
Port :
Shenzhen China
Brightness Adjustment :
Manual/Automatic
Operating Humidity :
35% -75%
Tube Chip Color :
Full Color
Gray Scale :
16bit
Control System :
Synchronous/Asynchronous
Materials :
magnesium alloy
Pannel Material :
Steel
Sunlight Readable :
Yes
Leds Type :
DIP 346
Protection :
IP65
Description

Product Overview


The Gmesh‑T series grille displays are optimized for high performance in harsh outdoor environments, widely applicable to building curtain walls, rooftop installations, large outdoor advertising screens and other scenarios.


Available Sizes:

Standard cabinet dimensions: 500×500mm, 500×625mm, 500×1000mm, 500×1250mm; non-standard custom sizes available upon request.


Pixel Pitch Options:

DIP LED configurations: P15.625, P31.25-15.625, P31.25-25, P31.25


Key Features:

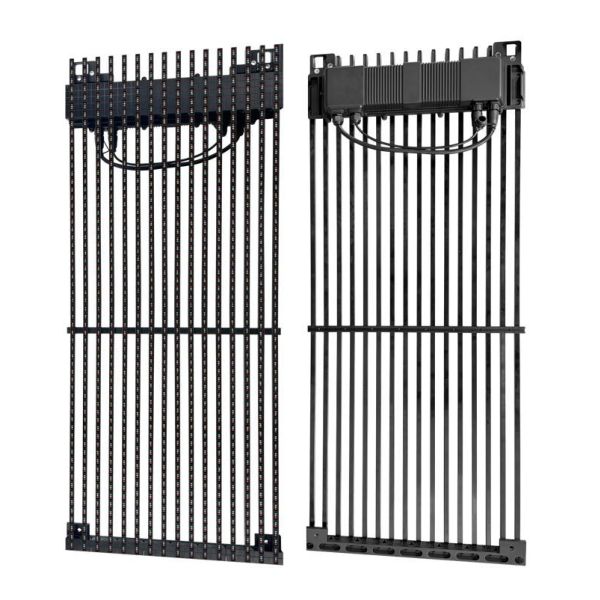

  • Ultra-slim cabinet design with a maximum thickness of only 92.7mm.
  • Lightweight structure at 11.5–14kg per square meter, reducing steel structure costs for high-altitude installations.

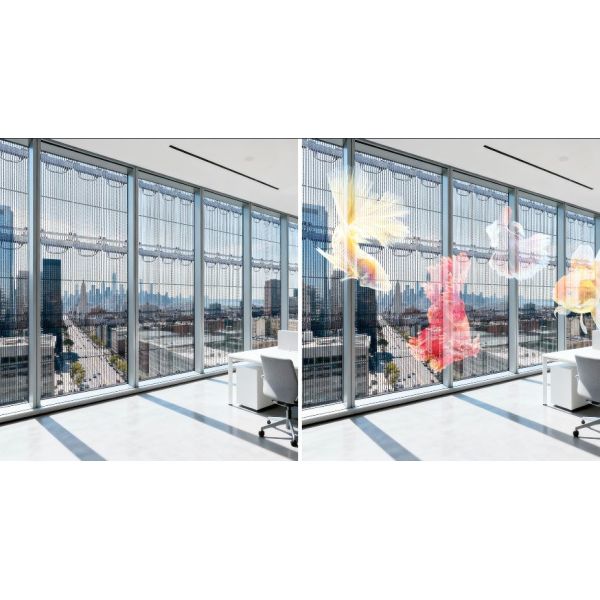

  • Optical transmittance of 35%–75%, delivering high transparency without blocking building lighting and ventilation.

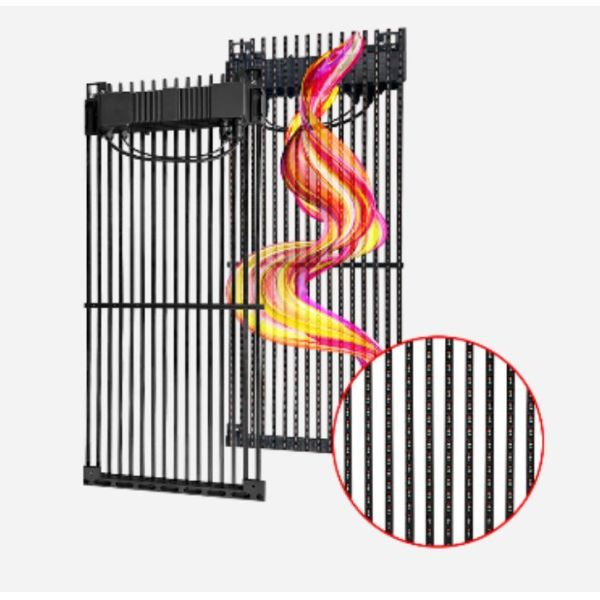

  • High brightness: DIP LED beads achieve up to 10,000 nits, ideal for direct-sunlight outdoor use; available in horizontal/vertical LED array layouts.
  • Strong scene adaptability: curtain wall advertising, stage backdrops, stadium perimeters, cultural tourism landmarks, etc.
  • Full compliance certifications: CE, RoHS, CCC, FCC, ready for export to multiple countries.
  • Product P16-A P16-B P25 P31.25
    Pitch(mm) 15.625mm 31.25-15.625mm 31.25-25mm 31.25mm
    Density(pixels/m2) 4096 2048 1280 1024
    LED Type DIP346 DIP346 DIP346 DIP346
    Brightness(nits) 10000nits 10000nits 10000nits 8000nits
    Scan static static static static
    Cabinet Size(mm) 500*500/500*625/500*1000/500*1250/customizable
    Cabinet Material Profile Aluminum + Die-Cast Aluminum
    Cabinet Weight ≤14kg/㎡ ≤12.7kg/㎡ ≤12kg/㎡ ≤11.5kg/㎡
    Protection Level IP65
    Cabinet Maintenance Front/Rear Maintenance
    Max Power Consumption 350W/㎡ 350W/㎡ 350W/㎡ 350W/㎡
    Average Power Consumption 120W/㎡ 120W/㎡ 120W/㎡ 120W/㎡
    Refresh Rate ≥3840Hz
    Grey Scale 16Bit
    Viewing Angle H100°,V50° H100°,V50° H100°,V50° H100°,V50°
    Input Voltage AC100~240V(50-63Hz)

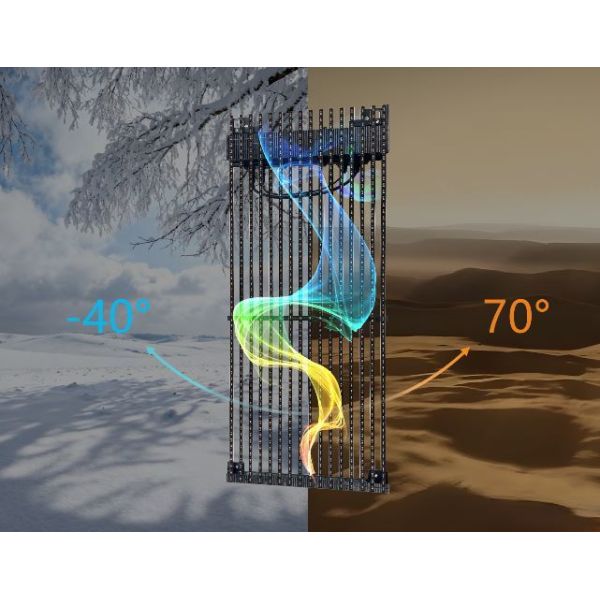

    Working TemperatureWorking Humidity ﹣40℃－﹢70℃
    Storage Temperature/Storage Humidity 10%－90%RH
    color temperature 6500-9500K
    Certifications CE/ROHS/CCC/FCC
