Outdoor High Transmittance IP65 Protected Gmesh-T Grid Screen with Front Maintenance Design for Building Facades
Outdoor High Transmittance IP65 Protected Gmesh-T Grid Screen with Front Maintenance Design for Building Facades
Outdoor High Transmittance IP65 Protected Gmesh-T Grid Screen with Front Maintenance Design for Building Facades
Outdoor High Transmittance IP65 Protected Gmesh-T Grid Screen with Front Maintenance Design for Building Facades
Outdoor High Transmittance IP65 Protected Gmesh-T Grid Screen with Front Maintenance Design for Building Facades
Outdoor High Transmittance IP65 Protected Gmesh-T Grid Screen with Front Maintenance Design for Building Facades
Outdoor High Transmittance IP65 Protected Gmesh-T Grid Screen with Front Maintenance Design for Building Facades
Outdoor High Transmittance IP65 Protected Gmesh-T Grid Screen with Front Maintenance Design for Building Facades
Specifications
Brand Name :
GCL
Model Number :
Gmesh
Certification :
CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
Place of Origin :
China Guangdong
MOQ :
5
Price :
399
Payment Terms :
T/T
Supply Ability :
depend on quantity
Delivery Time :
7-30days
Packaging Details :
wooden case
Port :
SheKou Shenzhen China
Brightness Adjustment :
Manual/Automatic
Operating Humidity :
35% -75%
Tube Chip Color :
Full Color
Led :
SMD3535
Density Of Pixel :
32768
Gray Scale :
16bit
Control System :
Synchronous/Asynchronous
Materials :
magnesium alloy
Pannel Material :
Steel
Sunlight Readable :
Yes
Leds Type :
SMD1921 SMD2727
Protection :
IP65
Description

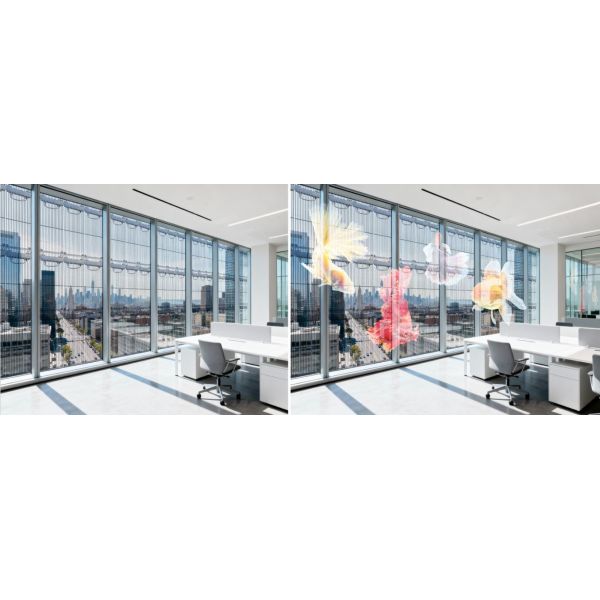

Gmesh-T grid screen features strip-like, hollowed-out, translucent design, and does not affect ventilation and lighting. It is commonly used for building facades and landmark architecture, suitable for constructing super-large outdoor displays, and is the preferred product for creating landmark dynamic display landscapes. The Gmesh-T series of grid screens are widely used in scenarios such as building curtain walls, building tops, and outdoor advertising;
Screen size:
500x500mm, 500*625mm, 500*1000mm, 500*1250mm, with customizable sizes;
Dot spacing:
DIP: P15.625, P31.25-15.625, P31.25-25, P31.25
Product Features:

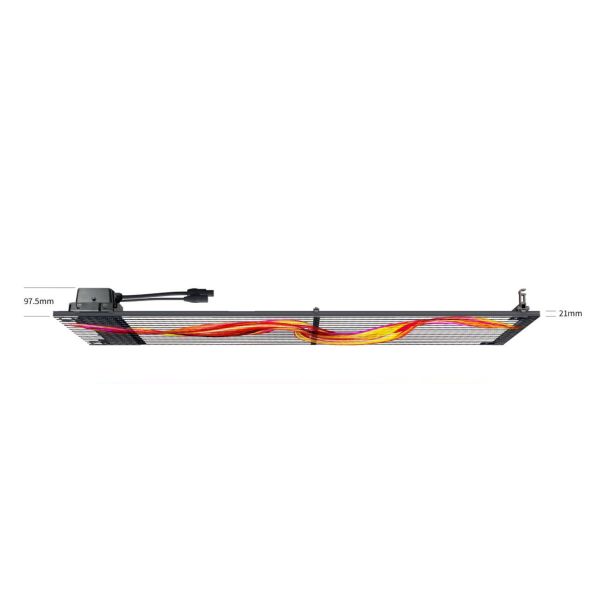

Ultra-thin cabinet, with the thickest part being only 92.7mm,
The weight of the cabinet is between 11.5 - 14 kg per square meter;

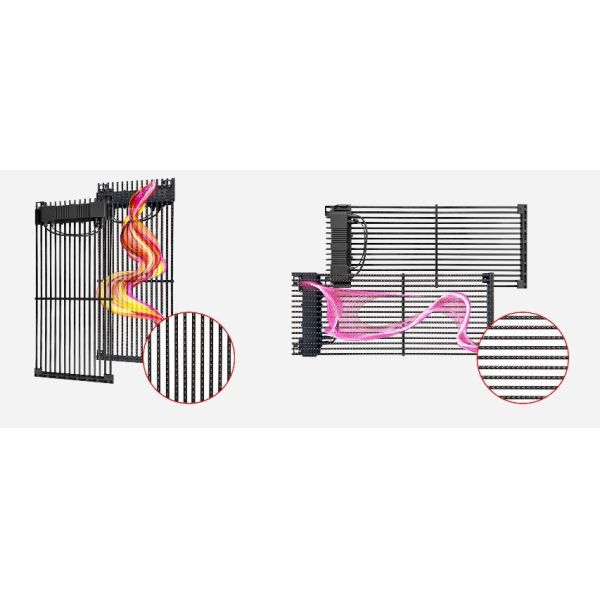

Using DIP 346 LED beads, it comes in two versions: horizontal and vertical
The light transmittance of the product should be between 35% and 75%
Capable of operating stably in an environment ranging from -40℃ to 70℃
The entire cabinet body adopts a front-maintenance design

Product P16-A P16-B P25 P31.25
Pitch(mm) 15.625mm 31.25-15.625mm 31.25-25mm 31.25mm
Density(pixels/m2) 4096 2048 1280 1024
LED Type DIP346 DIP346 DIP346 DIP346
Brightness(nits) 10000nits 10000nits 10000nits 8000nits
Scan static static static static
Cabinet Size(mm) 500*500/500*625/500*1000/500*1250/customizable
Cabinet Material Profile Aluminum + Die-Cast Aluminum
Cabinet Weight ≤14kg/㎡ ≤12.7kg/㎡ ≤12kg/㎡ ≤11.5kg/㎡
Protection Level IP65
Cabinet Maintenance Front/Rear Maintenance
Max Power Consumption 350W/㎡ 350W/㎡ 350W/㎡ 350W/㎡
Average Power Consumption 120W/㎡ 120W/㎡ 120W/㎡ 120W/㎡
Refresh Rate ≥3840Hz
Grey Scale 16Bit
Viewing Angle H100°,V50° H100°,V50° H100°,V50° H100°,V50°
Input Voltage AC100~240V(50-63Hz)
Working TemperatureWorking Humidity ﹣40℃－﹢70℃
Storage Temperature/Storage Humidity 10%－90%RH
color temperature 6500-9500K
Certifications CE/ROHS/CCC/FCC
