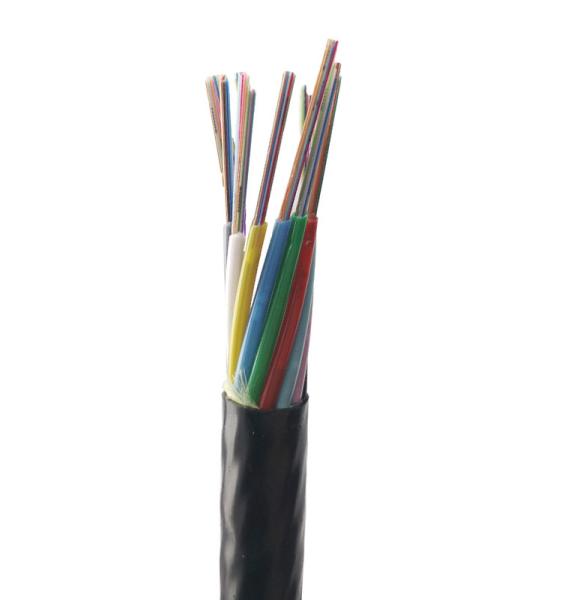

Air Blowing GCYFY 576cores Micro Duct Optic Cable LSZH
Air Blowing GCYFY 576cores Micro Duct Optic Cable LSZH
Air Blowing GCYFY 576cores Micro Duct Optic Cable LSZH
Air Blowing GCYFY 576cores Micro Duct Optic Cable LSZH
Air Blowing GCYFY 576cores Micro Duct Optic Cable LSZH
Air Blowing GCYFY 576cores Micro Duct Optic Cable LSZH
Air Blowing GCYFY 576cores Micro Duct Optic Cable LSZH
Air Blowing GCYFY 576cores Micro Duct Optic Cable LSZH
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC GCYFY
Certification :
CE ISO9001
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
Standard wooden drum for export
Fiber Type: :
G652D/G657A1/G657A2
Jacket Color: :
Black
Jacket: :
PVC/LSZH
Application: :
FTTH FTTB FTTX Network
Fiber count :
2~576 Core
Packing: :
2KM/Roll
Description

Outdoor Air Blowing Micro Duct Fiber Optic Cable GCYFY 2 4 6 8 12 24 48 96 144 288 576 Cores Air Blown Cable

Description

GCYFY loose-shell twisted air-blown micro-cable adopts non-metallic reinforcement and no armor structure, which can be hauled or air-blown micro-

pipe in the outer protective tube that has been laid, and then air-blown The laying method breaks through the limitation of the existing pipeline cable

laying technology, improves the utilization efficiency of the pipeline, and is easy to expand.

Characteristics:
●Small diameter, light weight, moderate hardness and softness, easy to bend during air blowing installation, easy to operate

●All non-metallic structure, no need for grounding, low friction coefficient sheath material and structural design, long air
blowing distance

● Make full use of pipe hole resources, adopt air blown compressing facilities to work fast and lay a long
distance at a time
●The optical cable can be blown in batches with the growth of the communication business, and the investment
is carried out step by step to reduce the initial investment
● The micro-cable can be blown out to facilitate the replacement of new varieties of fiber optic cables in the future, keeping the technology ahead
●Suitable for construction in crowded metropolitan area pipelines, avoiding previous destructive excavations
●There is no need to decide in advance where to place the junction box and the divergence of the optical cable. Without affecting the normal operation of other optical cables, the outer protective tube and the microtubes in it can be cut off at any time and anywhere to carry out the optical cable divergence, while saving manholes, hand holes and The number of splices reduces the overall cost
● Suitable for backbone network, metropolitan area network and access network
Technique Parameters
Item Content Value
Number of cable cores 24 48 96 144 288
Loose tube Number of Loose Tube* number of cores per tube* 2*12 4*12 8*12 12*12 24*12
Outer diameter(mm) 1.55 1.55 1.55 1.55 1.55
Reference outer diameter mm 5.5 5.5 6.5 8.5 10
Central strength member Material FRP
Water blocking material Material Water blocking cable gel
Outer jacket Thickness(0.1mm) 1.8
Range of operating temperature -110
Pull Short-term/long-term(G) 0.5/0.15
Flatten Short-term/long-term(N) 450/150

FiberCharacteristic

G.652.D G.655 50/125m 62.5/125m
Attenuation @850nm - - 3.0dB/km 3.0dB/km
@1300nm - - 1.0dB/km 1.0dB/km
@1310nm 0.36dB/km 0.36dB/km - -
@1550nm 0.22dB/km 0.23dB/km - -
Band width @850nm - - 500MHzkm 200MHzkm
@1300nm - - 1000MHzkm 600MHzkm
Fiber cutoff wavelength 1260nm 1260nm - -
Polarization Mode Dispersion Single optical fiber 0.20ps/km 0.20ps/km - -
Link value(M=20Q=0.01%) 0.10ps/km 0.10ps/km - -

Air Blowing GCYFY 576cores Micro Duct Optic Cable LSZHAir Blowing GCYFY 576cores Micro Duct Optic Cable LSZHAir Blowing GCYFY 576cores Micro Duct Optic Cable LSZHAir Blowing GCYFY 576cores Micro Duct Optic Cable LSZHAir Blowing GCYFY 576cores Micro Duct Optic Cable LSZHAir Blowing GCYFY 576cores Micro Duct Optic Cable LSZH
