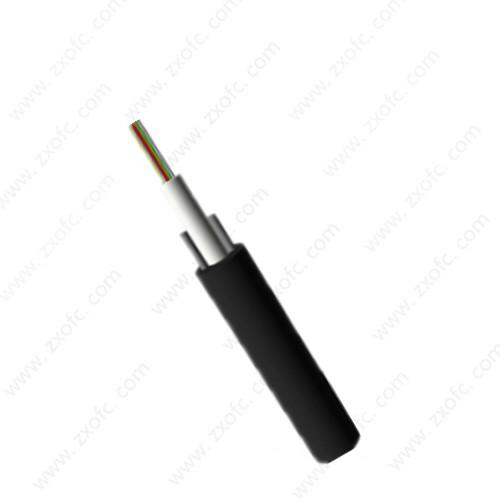

Uni Tube Aerial Multimode Fiber Optic Cable 12 Core Full Dry GYXY FTTH
Uni Tube Aerial Multimode Fiber Optic Cable 12 Core Full Dry GYXY FTTH
Uni Tube Aerial Multimode Fiber Optic Cable 12 Core Full Dry GYXY FTTH
Uni Tube Aerial Multimode Fiber Optic Cable 12 Core Full Dry GYXY FTTH
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYXY
Certification :
CE/ROHS/ISO9001
Place of Origin :
ShenZhen,China
MOQ :
3000 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Fiber type :
Singlemode,Multimode,om1,om2,om3
Customized :
Acceptable
Model number :
GYXY
Fiber count :
2-144core
Optical fiber :
Corning or YOFC
Outer Sheath material :
PE,HDPE,MDPE,LSZH
Application :
Aerial,direct buried,duct
Description

Full Dry GYXY FTTH Uni-tube aerial 12 fiber multi mode fiber optical cable

Description

The fibers, 250μ M, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.

Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is

completed with apolyethylene (PE) sheath.

Feature

• Good mechanical and temperature performance

• High strength loose tube that is hydrolysis resistant

• Special tube filling compound ensure a critical protection of fiber

• Two parallel steel wires ensure tensile strength

• PE sheath protects cable from ultraviolet radiation

• Small diameter, light weight and friendly installation

• Long delivery length

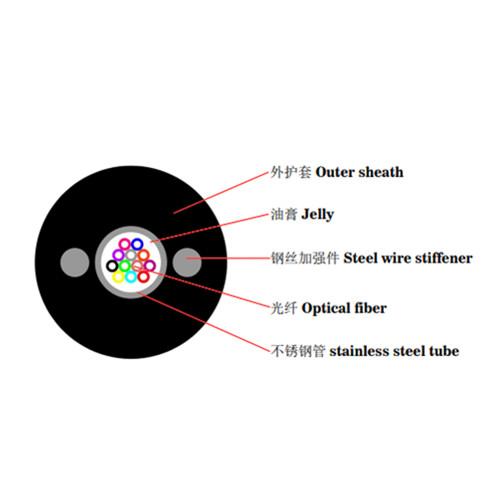

Cable Cross-section Diagram

Uni Tube Aerial Multimode Fiber Optic Cable 12 Core Full Dry GYXY FTTH

Technique Parameters

G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Application

1. LAN Backbones

2. Networks with mixed indoor and outdoor cabling

3. Flooded duct

4. Premises distribution system

Temperature Rage:

• Transport/storage temperature: -20℃ to +70℃

Certificate

Uni Tube Aerial Multimode Fiber Optic Cable 12 Core Full Dry GYXY FTTH

Our services
Uni Tube Aerial Multimode Fiber Optic Cable 12 Core Full Dry GYXY FTTH
Our Certificate
Package and delivery
Uni Tube Aerial Multimode Fiber Optic Cable 12 Core Full Dry GYXY FTTH
Uni Tube Aerial Multimode Fiber Optic Cable 12 Core Full Dry GYXY FTTH
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
