6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
Specifications
Model Number :
6052
Certification :
UL
Place of Origin :
China
MOQ :
1 roll
Price :
basing as thickness and quantity
Payment Terms :
T/T
Supply Ability :
1000000sq.m per month
Delivery Time :
about 15 days
Packaging Details :
carton and pallet
Thickness :
12.5~50um
tensile strength :
≥150MPa
Relative Permittivity :
~3.5
Surface resistivity :
≥1.0×10^14Ω
Volumetric resistivity :
≥1.0×10^10Ωm
Thermal Shrinkage :
≤ 3.5%
Temp. Index :
≥180℃
Application :
Used as a cover film for flexible circuits and for high-temperature electrical insulation
Description

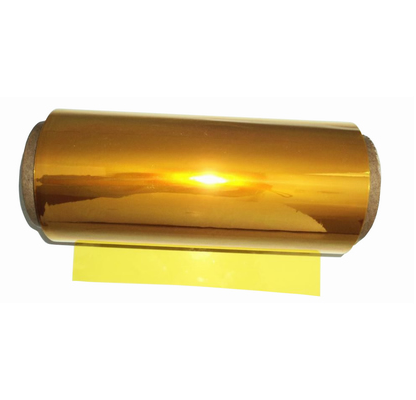

6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
Product Description
The Biaxially Oriented Polyimide (BOPI) film is produced via advanced casting and biaxial stretching, available in 12.5–50μm thicknesses for reliable high performance. Precision corona treatment ensures strong adhesion for coating, lamination, and metallization. UL-certified, it offers a trusted solution for demanding industrial applications.
Technical Specifications

Parameters

Value
Thickness Range 12.5μm-50μm
Temperature Index ≥180℃
Key Advantages
  • Broad-Temperature Stability: Performs consistently from -240°C to +260°C
  • High Strength & Toughness: Offers excellent tensile strength, rigidity, tear resistance, and dimensional stability
  • Premium Insulation & Safety: Delivers superior electrical insulation with inherent flame retardancy
  • Chemical Resistance: Withstands most organic solvents, oils, and greases
Applications
  • Flexible Circuit Substrates: Ideal as base material and cover film for flexible printed circuits (FPC)
  • High-Temperature Insulation: Critical insulating component for specialty wires, motors, and transformers
  • Flexible Functional Components: Preferred dielectric and protective layer for flexible heaters and sensors
