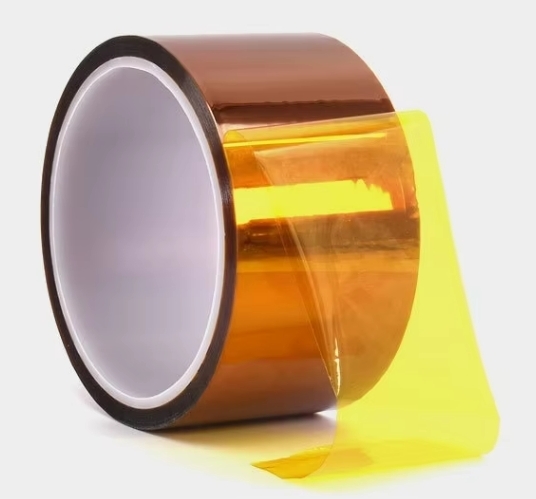

Polyimide Adhesive Tape 30um~100um Thickness With Pressure Sensitive Silicone Adhesive
Polyimide Adhesive Tape 30um~100um Thickness With Pressure Sensitive Silicone Adhesive
Polyimide Adhesive Tape 30um~100um Thickness With Pressure Sensitive Silicone Adhesive
Polyimide Adhesive Tape 30um~100um Thickness With Pressure Sensitive Silicone Adhesive
Polyimide Adhesive Tape 30um~100um Thickness With Pressure Sensitive Silicone Adhesive
Polyimide Adhesive Tape 30um~100um Thickness With Pressure Sensitive Silicone Adhesive
Polyimide Adhesive Tape 30um~100um Thickness With Pressure Sensitive Silicone Adhesive
Polyimide Adhesive Tape 30um~100um Thickness With Pressure Sensitive Silicone Adhesive
Specifications
Model Number :
K2321
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
500m2
Price :
based on sizes and quantity
Payment Terms :
L/C,T/T
Supply Ability :
50,000m2 per month
Delivery Time :
35 working days
Packaging Details :
Export carton case
Product Category :
Polyimide Film Adhesive Tape
Halogen Free :
Yes
Thickness :
30um~100um
Standard Roll Length :
33 meters
Base Material Thickness Options :
7.5 µm, 12.5 µm, 25 µm, and 50 µm
BDV :
≥2.0KV
Working temp. :
180℃ (long Term)
Temperature Range :
-73℃ to 260℃
Tensile Strength :
≥25N/10mm
Adhesion :
≥1.8N/10mm
Features :
Polyimide Film Adhesive Tape
Application :
High Temperature Applications
Description
Polyimide Adhesive Tape 30um~100um Thickness With Pressure Sensitive Silicone Adhesive
Product Description

The polyimide adhesive tape is specially developed for demanding working conditions, integrating high-temperature resistance, electrical insulation, and strong bonding properties. It delivers durable and reliable adhesion even in complex environments such as PCB insulation, and offers multiple thickness options to flexibly meet customized needs.

Technical Specifications
Material Polyimide Film
Adhesive Type Pressure Sensitive Silicone Adhesive
Thickness 30um~100um
Key Advantages

  • Triple Performance Integration: Simultaneously delivers excellent high-temperature resistance, high dielectric strength, and stable strong adhesion, suitable for demanding working conditions.

  • Environmental Adaptability: Maintains stable physical properties under high temperatures, chemical solvents, and sudden temperature changes, resisting embrittlement or peeling.

  • Precision Control: Customizable thickness (typical range 0.03mm–0.15mm), balancing flexibility and mechanical protection to meet precision industrial applications.

Primary Applications

  • Electronic Circuit Protection: Used for PCB trace insulation, gold finger shielding, and high-temperature protection of electronic components to prevent short circuits and signal interference.

  • High-Temperature Process Protection: Applied to reflow carrier surfaces, hot press heads, and high-temperature equipment for heat insulation, anti-adhesion, and wear resistance.

  • Aerospace & Automotive Electronics: Provides lightweight insulation and environmental protection for engine wiring harnesses, battery modules, and sensor packaging.
