H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation
H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation
H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation
H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation
H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation
H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation
H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation
H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation
Specifications
Model Number :
251
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
500m2
Price :
Usd1~5/roll
Payment Terms :
L/C,T/T
Supply Ability :
50,000m2 per month
Delivery Time :
35 working days
Packaging Details :
Export carton case
Color :
Amber transparent
Base material :
polyimide film
Adhesive :
Silicone pressure sensitive adhesive
Thickness :
0.03~0.10mm
Tensile strength :
≥35N/cm
Elongation :
≥30%
Electrical strength :
≥70MV/m
Working temperature :
200℃
Description
Product Description

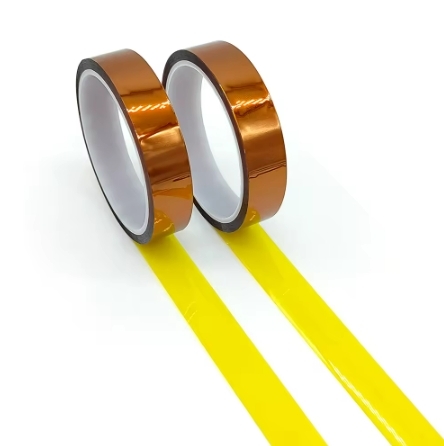

The Polyimide Film Adhesive Tape features a PI film base for excellent heat resistance, strength, and dielectric performance, combined with a high-temperature silicone adhesive for reliable bonding. As a Class H insulation material, it is ideal for demanding applications in motors, electrical equipment, and electronics.

Technical Parameters

Parameters Value

Tensile strength

≥35N/10mm

Electrical strength

≥70MV/m

Elongation

≥30%

Working Temp.

200℃

Thickness

0.03~0.10mm


Advantages
  • Exceptional heat and electrical resistance: Class H (180°C) rating with high dielectric strength for reliable insulation under extreme conditions.
  • Secure yet clean adhesion: Strong bond without residue, protecting components during application and removal.
  • Enhanced durability: Resistant to punctures, moisture, solvents, and corona discharge for long-lasting performance in demanding environments.
  • Optimized for automation: Uniform, bubble-free rolls with precision-cut edges enable smooth, reliable high-speed processing.
Applications
  • Electronics: PCB gold finger masking, SMT insulation, wave soldering protection.
  • Motor/Transformer: Class H coil wrapping and fixation for high-temperature integrity.
  • Lithium Batteries: Secure tab fixation and internal insulation, heat and electrolyte resistant.
  • Flexible Circuits: FPC reinforcement and moisture insulation in high-temperature assembly.
