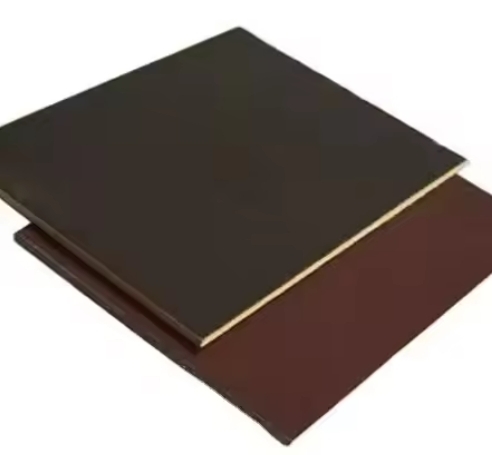

Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin
Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin
Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin
Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin
Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin
Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin
Specifications
Model Number :
3250
Place of Origin :
China
MOQ :
1000kgs
Price :
basing on size and quantity
Payment Terms :
T/T
Supply Ability :
200000kgs per month
Delivery Time :
30 working days
Packaging Details :
pallet
Thickness :
1mm / 2 mm
Tensile strength (MD) :
≥300MPa
Vertical electric strength :
≥ 14.2 kV/mm
Parallel breakdown voltage :
≥ 35kV
Dielectric dissipation (50Hz) :
≤ 0.04
Relative Permittivity (50Hz) :
≤ 5.5
Comparative tracking index :
≥ 200
Insulation resistance (after 24h immersion in water) :
≥ 5.0 × 10^4 MΩ
Description

Product Description


The epoxy fiberglass laminate sheet is hot-pressed from E-glass fiber cloth and high-Tg epoxy resin, offering H-class insulation. It features exceptional high-temperature strength and stable insulation performance in humid environments, making it ideal for high-reliability applications in electrical, electronic, and mechanical fields.


Technical Specifications


Parameters Value

Thickness

1mm / 2mm

Tensile strength (MD)

≥300MPa

Vertical electric strength

≥14.2kV/mm

Parallel breakdown voltage

≥35kV

Comparative tracking index

≥ 200


Advantages

  • Excellent Thermal Resistance: Class H insulation rating enables reliable high-temperature operation with superior structural stability under thermal stress.
  • Reliable Electrical Insulation: Maintains stable dielectric performance even in demanding high-humidity environments.
  • Extended Service Life: Exceptional heat and moisture resistance contribute to long-term operational reliability.

Applications

  • High-Voltage Electrical Equipment: Offers robust insulation and mechanical support for components in switchgear and transformers.
  • Large Electric Motors: Provides long-lasting insulation for critical generator and motor assemblies, ensuring durability under demanding operational conditions.
  • Rail Transportation: Delivers consistent performance as insulation for traction motors and control systems, withstanding vibration and thermal cycling.
