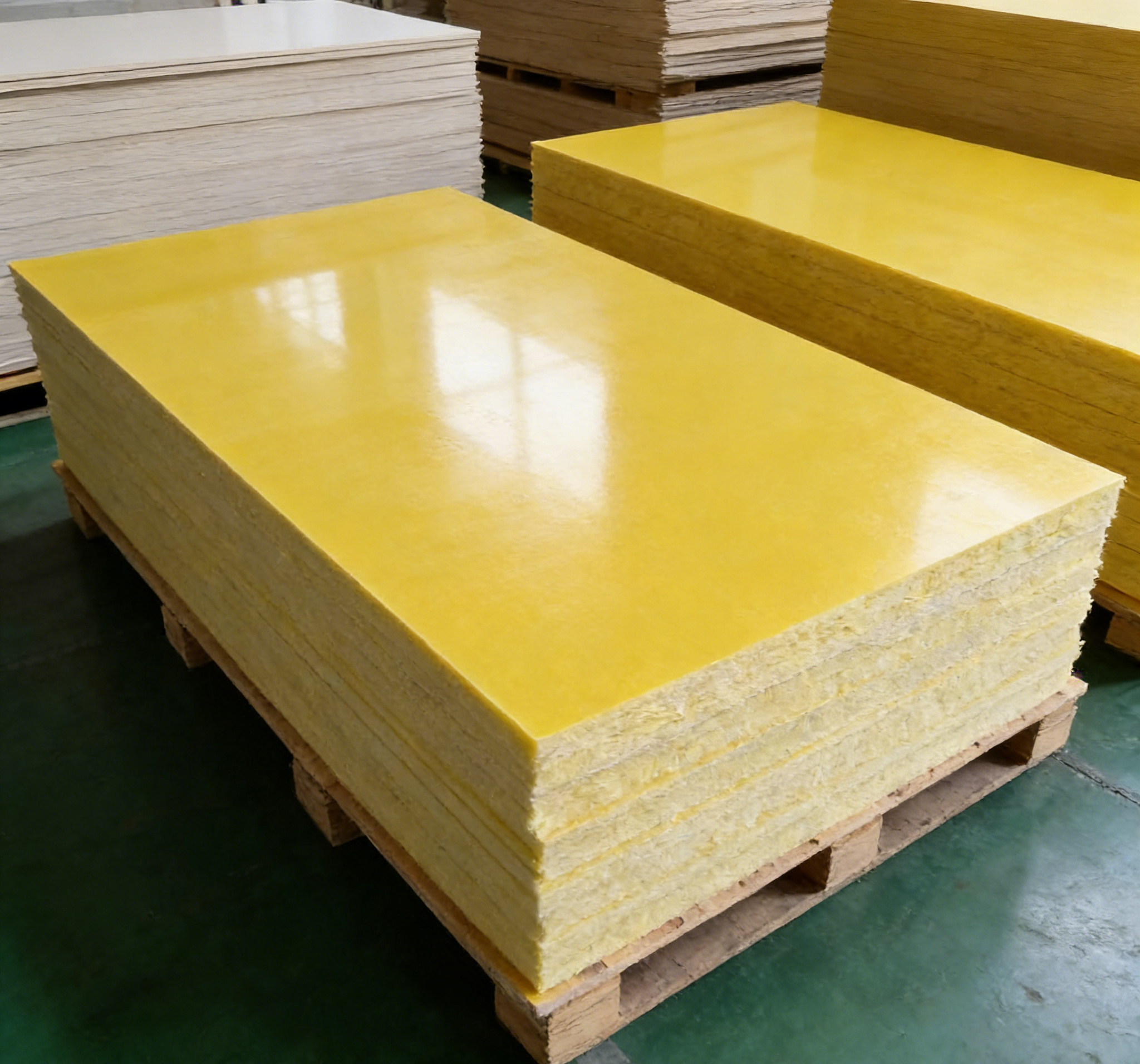

3240 High-Performance Insulation Board Class B With Phenolic Epoxy Resin
3240 High-Performance Insulation Board Class B With Phenolic Epoxy Resin
3240 High-Performance Insulation Board Class B With Phenolic Epoxy Resin
3240 High-Performance Insulation Board Class B With Phenolic Epoxy Resin
3240 High-Performance Insulation Board Class B With Phenolic Epoxy Resin
3240 High-Performance Insulation Board Class B With Phenolic Epoxy Resin
Specifications
Model Number :
3240
Place of Origin :
China
MOQ :
1000kgs
Price :
basing on size and quantity
Payment Terms :
T/T
Supply Ability :
200000kgs per month
Delivery Time :
30 working days
Packaging Details :
pallet
Material :
Phenolic Epoxy Resin & Glass Fiber
Size :
102 X 202cm / 102 X 122cm / 122 X 204cm / 122 X 244cm
Thickness :
0.2-101.6mm
Density :
1.8-2.0 g/cm3
Temp. Index :
120℃
Flammability :
HB
Insulation Resistance (Normal) :
≥5.0×10^12 Ω
Application :
Applicable to mechanical, electrical, electronic and other fields
Description

Product Description:

The 3240 High-Performance Insulation Board is manufactured from alkali-free glass fiber cloth and phenolic epoxy resin under high temperature and pressure. It offers excellent electrical insulation, mechanical strength, and a Class B (130°C) thermal rating. Suitable for demanding environments such as high humidity and oil immersion, this board is widely used in insulating structural components for motors, transformers, and other electrical equipment.

Technical Parameters:

Attribute Value
Color Yellow
Shape Board
Surface Smooth/no Significant Defect
Temp. Index 120℃
Flammability HB
Advantages:
  • High Dielectric Strength: ≥14.2 kV/mm at 90°C in oil with low permittivity (≤5.5/50Hz), ensuring reliable insulation and low loss.
  • Durable & Strong: ≥1.8 g/cm³ density and robust structure for long-term mechanical reliability.
  • Smooth Surface: Defect-free finish prevents partial discharge and simplifies installation.

Applications:

  • Ideal for Transformer Insulation: Combines exceptional parallel and perpendicular dielectric strength for reliable internal insulation.
  • Critical for Switchgear Applications: Offers proven mechanical durability and impact resistance in high-stress environments.
  • Essential for Busbar Supports: Delivers stable power distribution with low and consistent permittivity.
