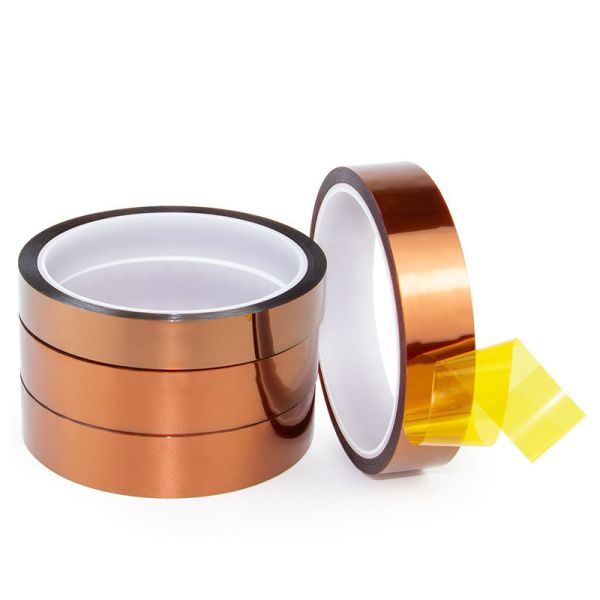

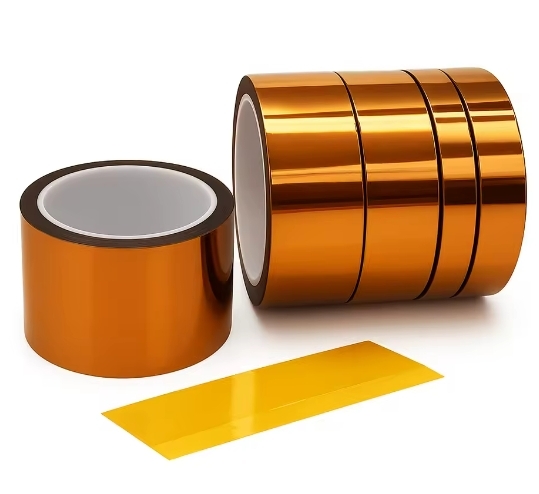

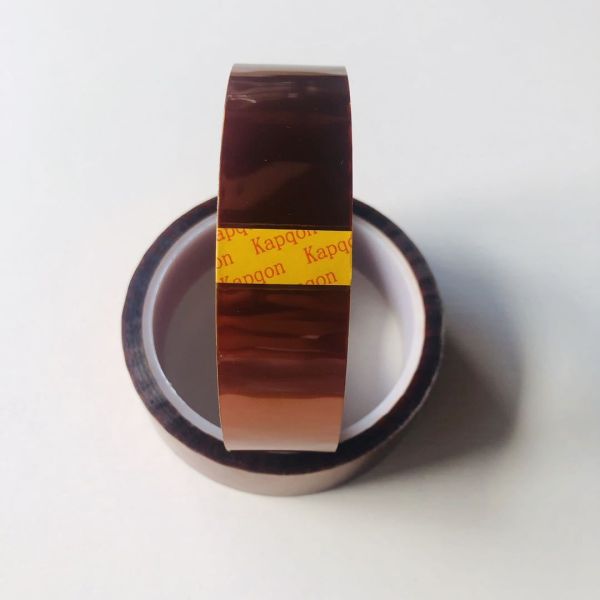

Heat-Resistant Polyimide Tape (Kapton Tape)
Heat-Resistant Polyimide Tape (Kapton Tape)
Heat-Resistant Polyimide Tape (Kapton Tape)
Heat-Resistant Polyimide Tape (Kapton Tape)
Heat-Resistant Polyimide Tape (Kapton Tape)
Heat-Resistant Polyimide Tape (Kapton Tape)
Specifications
Model Number :
K2321
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
500m2
Price :
based on sizes and quantity
Payment Terms :
L/C,T/T
Supply Ability :
50,000m2 per month
Delivery Time :
35 working days
Packaging Details :
Export carton case
Product Category :
Polyimide Film Adhesive Tape
Halogen Free :
Yes
Thickness :
30um~100um
Standard Roll Length :
33 meters
Base Material Thickness Options :
7.5 µm, 12.5 µm, 25 µm, and 50 µm
BDV :
≥2.0KV
Working temp. :
180℃ (long Term)
Temperature Range :
-73℃ to 260℃
Tensile Strength :
≥25N/10mm
Adhesion :
≥1.8N/10mm
Features :
Polyimide Film Adhesive Tape
Application :
High Temperature Applications
Description
Heat-Resistant Polyimide Tape (Kapton Tape)

Polyimide Adhesive Tape Kapton Polyimide Tape is made of polyimide film as the base material, coated with high-performance silicone pressure-sensitive adhesive. It features excellent high-temperature resistance, high dielectric strength, and chemical resistance, making it an indispensable precision process material in electronics manufacturing and high-temperature masking applications.

Technical Specifications
Material Polyimide Film
Adhesive Type Pressure Sensitive Silicone Adhesive
Thickness 30um~100um
Key Advantages
  • Able to withstand long-term exposure from sub-zero low temperatures up to 260°C, with short-term tolerance to even higher temperatures, leaving no residue or deformation upon removal.
  • Offers excellent electrical insulation performance, effectively preventing high-voltage breakdown and short circuits.
  • Resists acids, alkalis, solvents, and radiation, while being thin and conformable for precision masking and protection.
Primary Applications
  • Used during wave soldering or reflow soldering to protect gold fingers and specific contacts from solder contamination.
  • Serves as a fine masking tape during high-temperature painting or powder coating of automotive and electrical components.
  • Used in cell manufacturing to secure tab positions and cover metal burrs, preventing internal short circuits.
