Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Acrel
Model Number :
ARTM-Pn
Supply Ability :
8000 Piece/Pieces per Day
Packaging Details :
It is packed in a crash bag and then put into a cardboard box.
MOQ :
>=1 Pieces
Price :
$220.00
Display Type :
LCD
Phase :
Three Phase
Measuring Energy Range :
AC 85~265V,DC 100~300V
Accuracy Class :
0.5r
Output Voltage :
AC 85~265V,DC 100~300V
Operating Temperature :
-10℃~55℃
Dimensions :
92*92*68mm
Display :
LCD Display
Communication :
RS485 Port MODBUS-RTU Protocol
Power supply :
AC 85~265V DC 100~300V
Certificate :
CE ISO9001
Power consumption :
8W
temperature :
-10℃~55℃
Relative humidity :
≤95%
Atmospheric pressure :
86kPa~106kPa
Accuracy :
±2℃
Sensor number :
60
Port :
SHANGHAI
Description
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal

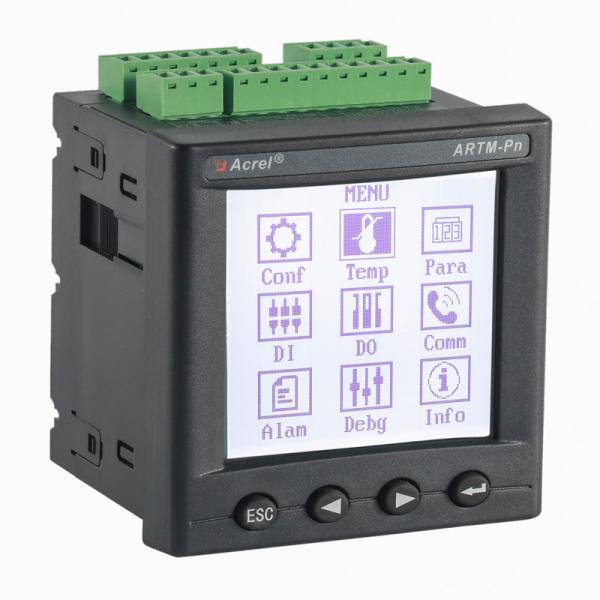

ARTM-Pn Wireless Temperature Measuring Equipment
● Wireless temperature measurement, maximum measuring 60 points;
● 4 digital inputs;
● 2 alarm relays;
● LCD display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, Modbus-RTU.
ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.
Characteristic
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
RS485
Modbus-RTU
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
LCD display
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Easy wiring
LCD Display
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Technical parameters
Item
Value
Auxiliary power supply
AC 85~265V,DC 100~300V
Power Consumption
8W
Temperature sensor
ATE100,ATE200,ATE300
Communication
Protocol
MODBUS-RTU
Baud rate(BPS)
2400,4800,9600 or19200
Wireless temperature measurement
Accuracy
±2℃
Sensor number
60
Environment
Temperature
-10℃~55℃
Humidity
≤95%
Atmospheric pressure
86kPa~106kPa
Average work time without stoppage
≥5000h
Function
● Wireless temperature measurement, maximum measuring 60 points;
● 4 digital inputs;
● 2 alarm relays;
● 1 RS485 serial communication, Modbus-RTU;
● High temperature alarm.
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
APPEARANCE
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Wiring
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Typical connection
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd.
baojingjun@email.acrel.cn
Address:No.5,Dongmeng Road,Nanzha Town,Jiangyin City,Jiangsu Province.
Class 0.5 8W Wireless Temperature Monitoring System ARTM-Pn Wireless Temperature Monitoring device to HT Motor Terminal
FAQ

1. Q: Where is your factory located ? How can I visit here ? Can your factory arrange transportation for me?

A: Our production base is located in Jiangyin City, Jiangsu Province, China; Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel when you arrive Shanghai.

2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?

A: The staffs in our R&D department are well experienced in the Electric industry, with more than 10 years’ experience. We can make customized products especially for you; please kindly contact us for more

3. Q: How long could I get my order?

A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.

4. Q: How is your production management and quality control system?

A: All our product process follows up ISO9001. The strict implementation of ISO9001 assures to provide error–free products to our customers. We will show you these in our workshop during your visiting.

5. Q: How can I get a sample to check the quality?

A: We are glad to offer you samples for test. Leave us message of the item you want and your city address. We will offer you detail sample packing information, and select the best way to deliver it.
