Industrial AVR Voltage Regulator Large 150 KVA Energy Saving SBW
Industrial AVR Voltage Regulator Large 150 KVA Energy Saving SBW
Industrial AVR Voltage Regulator Large 150 KVA Energy Saving SBW
Industrial AVR Voltage Regulator Large 150 KVA Energy Saving SBW

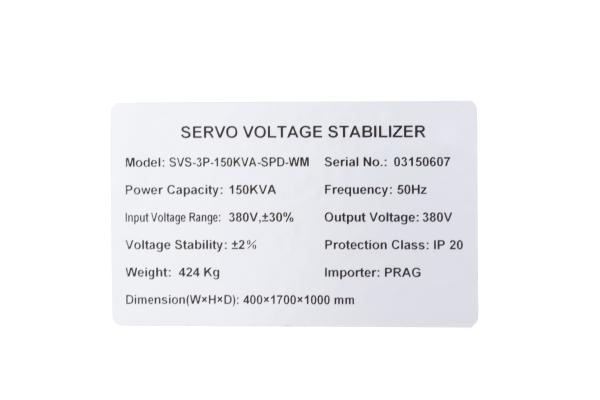

Specifications
Brand Name :
Modern
Model Number :
SVS
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500 unit/month
Delivery Time :
30 days
Packaging Details :
Wooden Packing
Dimension :
400×1700×1000mm
Capacity :
150KVA
Votage Stability Range :
-3%~+3%
Weight :
424Kg
Phase :
three phase
Current type :
AC
Description

Industrial AVR Voltage Regulator Large 150 KVA Energy Saving SBW

Description:

Series DBW and SBW single-phase and three-phase high-power full-automatic compensating power voltage stabilizers are designed for stabilizing AC current by importing and absorbing the advanced technology from Western Europe, and conforming to the situation in our country simultaneously. When the voltage fluctuation of outside power-supply network or the load change causes the voltage to be fluctuated, it can automatically keep the output voltage stable. Compared with the other stabilizers, the serial products have the advantages of large capacity, high efficiency, no waveform distortion, stable voltage control and so on. Furthermore, the serial stabilizers own the wide service load, the capacity for being the momentary overload, long-term continuous operation, the switching for manual an automatic operation, the protection against the over voltage, over current, phase shortage, phase-sequence and the automation protection, etc.

Applications:

Widely used in the equipment of the large electromechanical, t he metal processing, constructional engineering, embroidery textiles, and production flow-line, electrical lift, medical apparatus and instruments, air-conditioner, broadcast television, household appliances, lighting etc. in the line of industry, agriculture, transportation, post and telecommunications, military affairs, railway, scientific research culture and so on.

Technical parameter:

Input VoltageDBW SBW
220±15%,20%,30%,50% 380±15%,20%, 25%30%,50%
Output Voltage (Preset at 1.5%)220Vac±1-5% 380Vac±1-5%
Efficiency>98%
Precision1-5%
Frequency47-53Hz
Response Time<0.5S/20V(Line Voltage)
Insulated Strength2000V/1 minute without puncture 2500V/1 minute without puncture
Insulated Resistance>2MΩ
Wave DeformationNil
Isolation transformerOptional
Surge ProtectionOptional

Model

Dimension(W×D×H)mm

Model

Dimension(W×D×H)mm

DBW-10KVA

300×720×1270

DBW-50KVA

300×800×1370

DBW-20KVA

300×720×1270

DBW-80KVA

300×800×1370

DBW-30KVA

300×720×1270

DBW-100KVA

300×800×1370

SBW-15KVA

300×720×1270

SBW-350KVA

500×1050×1800

SBW-20KVA

300×720×1270

SBW-400KVA

500×1050×1800

SBW-30KVA

300×720×1270

SBW-500KVA

600×1250×2000

SBW-50KVA

300×800×1370

SBW-600KVA

600×1250×2000

SBW-80KVA

300×800×1370

SBW-800KVA

600×1250×2000

SBW-100KVA

300×800×1370

SBW-1000KVA

800×1800×1900

SBW-120KVA

300×800×1370

SBW-1200KVA

1000×1800×1900

SBW-150KVA

400×900×1600

SBW-1500KVA

1000×1800×1900

SBW-180KVA

400×900×1600

SBW-2000KVA

1000×1800×1900 two cabinets

SBW-200KVA

400×900×1600

SBW-3000KVA

1000×1800×1900 two cabinets

SBW-250KVA

500×1050×1800

SBW-4000KVA

1000×1800×1900 three cabinets

SBW-300KVA

500×1050×1800

SBW-5000KVA

1000×1800×1900 four cabinets
