Specifications
Brand Name :
Modern
Model Number :
SBW-500kVA
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
usd 10000~15000/unit
Supply Ability :
500MW /month
Delivery Time :
3-4 weeks
Packaging Details :
Wooden box
Input voltage :
304V~456V
Output voltage :
380V
Frequency :
50/60Hz
Energy saving :
Up to 15%
Display :
Touch HMI
Control :
Independent phase regulation with remote monitoring
Brand :
Modern
Place of origin :
Zhejiang, China
Description


Features&Benefits:

Power Stabilizer  with remote monitoring and outdoor cabinet IP54, Energy saving and reduce your cost

Wide input voltage: 285V~475V. The lowest of 173V to be option.

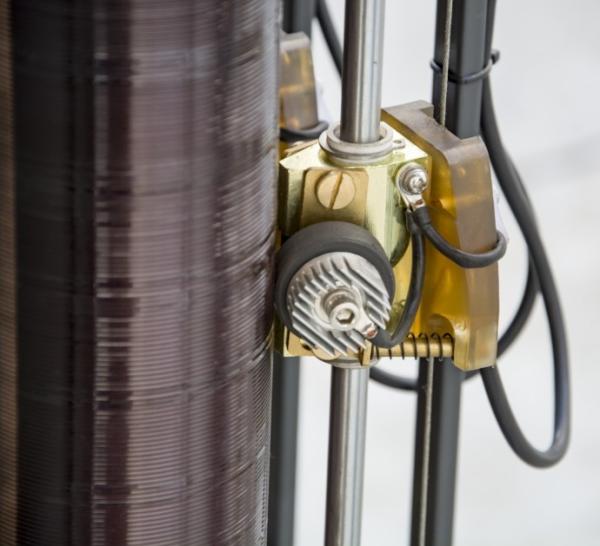

Technogy: Maintenance free roller carbon brush.

Control:Independent phase regulation.

Over load: 200% over load 10secs, 150% over load 60secs, 120% over load 10mins.

Power Stabilizer  with remote monitoring and outdoor cabinet IP54, Energy saving and reduce your cost

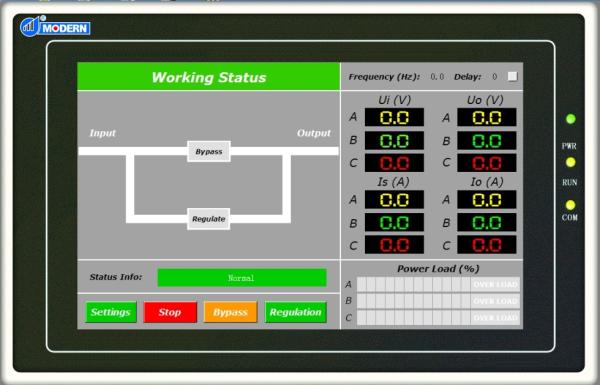

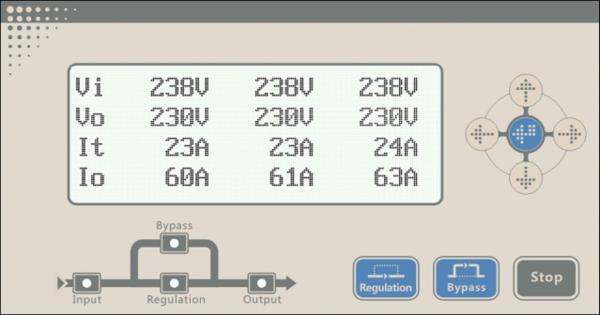

Display: Input/Output voltage, Input/Output current, Working state, Failure info, App Power, Active power,Power factor,Frequency.

Protect with indicating alarms: Short circuit, Over/under input voltage, Over/under output voltage,Over loads, Wrong sequency, Phase lost.

Power Stabilizer  with remote monitoring and outdoor cabinet IP54, Energy saving and reduce your costCommunication: RS485/RS232 interface, GPRS/WIFI communication for optional.

Energy saving: Reduce your output voltage to 215V to increase your efficiency of the loads.

Specifications:

Input

Input voltage 220V/380V,230V/400V,240V/415V system, Other voltage system can be cosuomized
Input range ±20%(±15~±50% can be customized)
Input Frequency 50/60Hz

Output

Output voltage 220V/380V,230V/400V,240V/415V system, Other voltage system can be cosuomized
Output Accuracy Selectable:±1% to ±5%, Factory preset:±2%
Waveform Distortion Nil
Efficiency ≥98%(Full load)

Environmental

Working Temperature -20℃ to +50
Altitude <1000m
Relative Humidity <90%
Noise <55dB
